ENGLISH
Jandy
®
Pro Series Sand Filter SFTM22-1.5, SFTM24-2.0
|
Installation & Operation Manual

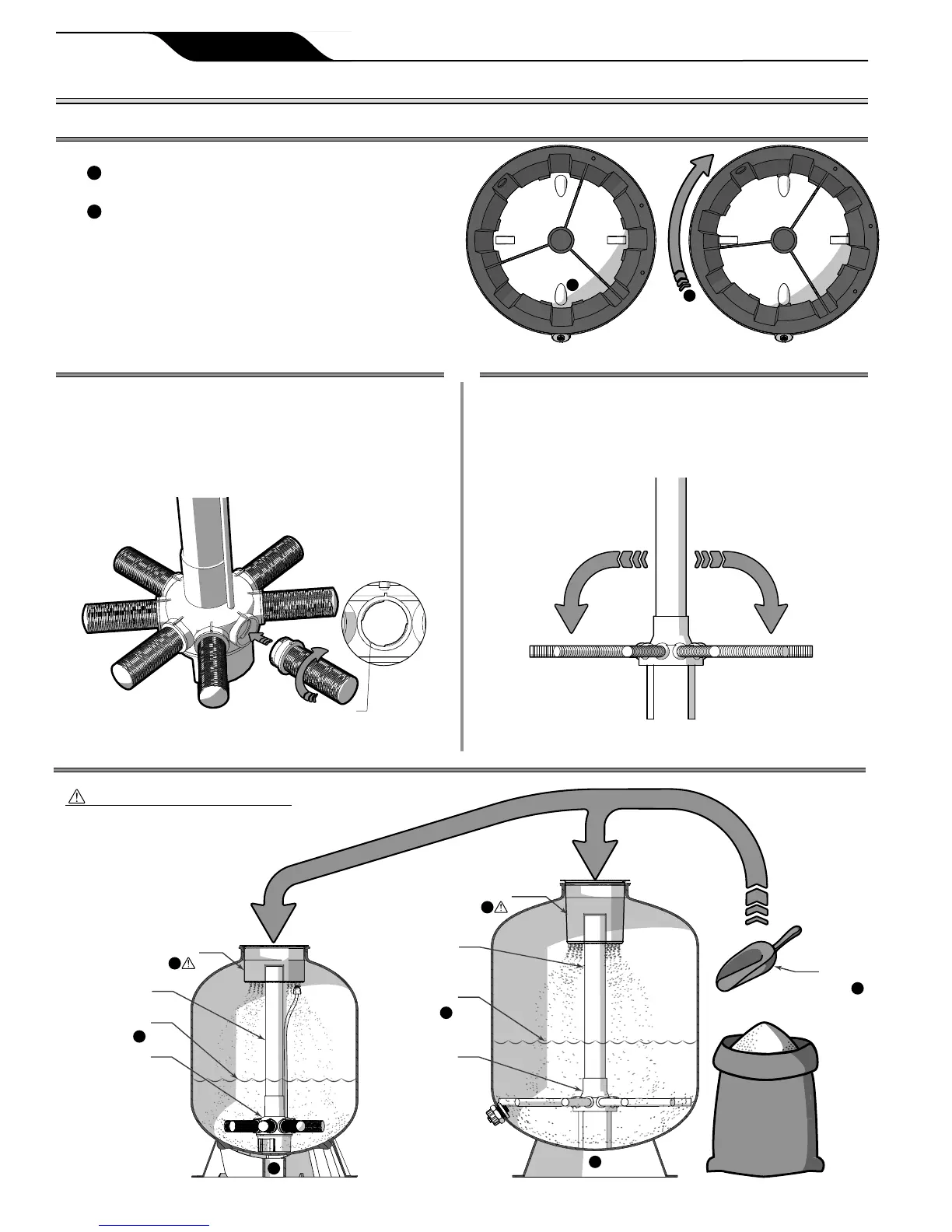

SECTION 4. INITIAL SETUP
4.1 INSTALL BASE
1. Turn filter tank upside down.
a
Position the base so that the retention nodes are between
the lock tabs.
b
Turn clockwise until the lock tabs are securely seated under
the retention nodes.
a
b
4.2 INSTALL HUB AND LATERALS SFTM22-1.5
1. Inspect the laterals and lateral hub assembly for damage or
debris. Replace or clean where needed.
2. Insert the lateral hub assembly into the filter tank.
3. Reach into filter tank and install each lateral to the hub.
4. Each lateral requires a single quarter turn. Ensure that the
laterals are snug. DO NOT OVERTIGHTEN.
Align tabs on lateral to slots
in hub. Secure wuith 1/4 turn.
4.3 INSTALL HUB AND LATERALS SFTM24-2.0
1. Inspect the laterals and lateral hub assembly for damage or
debris. Replace or clean where needed.
2. Insert the lateral hub assembly into the filter tank.
3. Reach into filter tank and extend each lateral into a fully
horizontal position.
4.4 FILL WITH SAND
#20 Silica
Size Range .40-.55 mm
POOL FILTER SAND
Size Range .40-.55 mm
POOL FILTER SAND
Water Level
Scoop
SFTM22-1.5 SFTM24-2.0
Sand Deflector
Stand Pipe
The Sand Deflector must be used at any
time filter media is being added to the
filter. Failure to use the Sand Deflector
may result in filter media intrusion into
the pool and/or malfunction, damage or
failure of the filter components.
NOTE: Be sure to use
pool filter sand only.
CAUTION
Water Level
Laterals
Assembly
Laterals
Assembly
Stand Pipe
a
a
b
b
c
d
Sand Deflector
c
