Pro Series Sand Filter SFTM22-1.5, SFTM24-2.0
|
Installation & Operation Manual

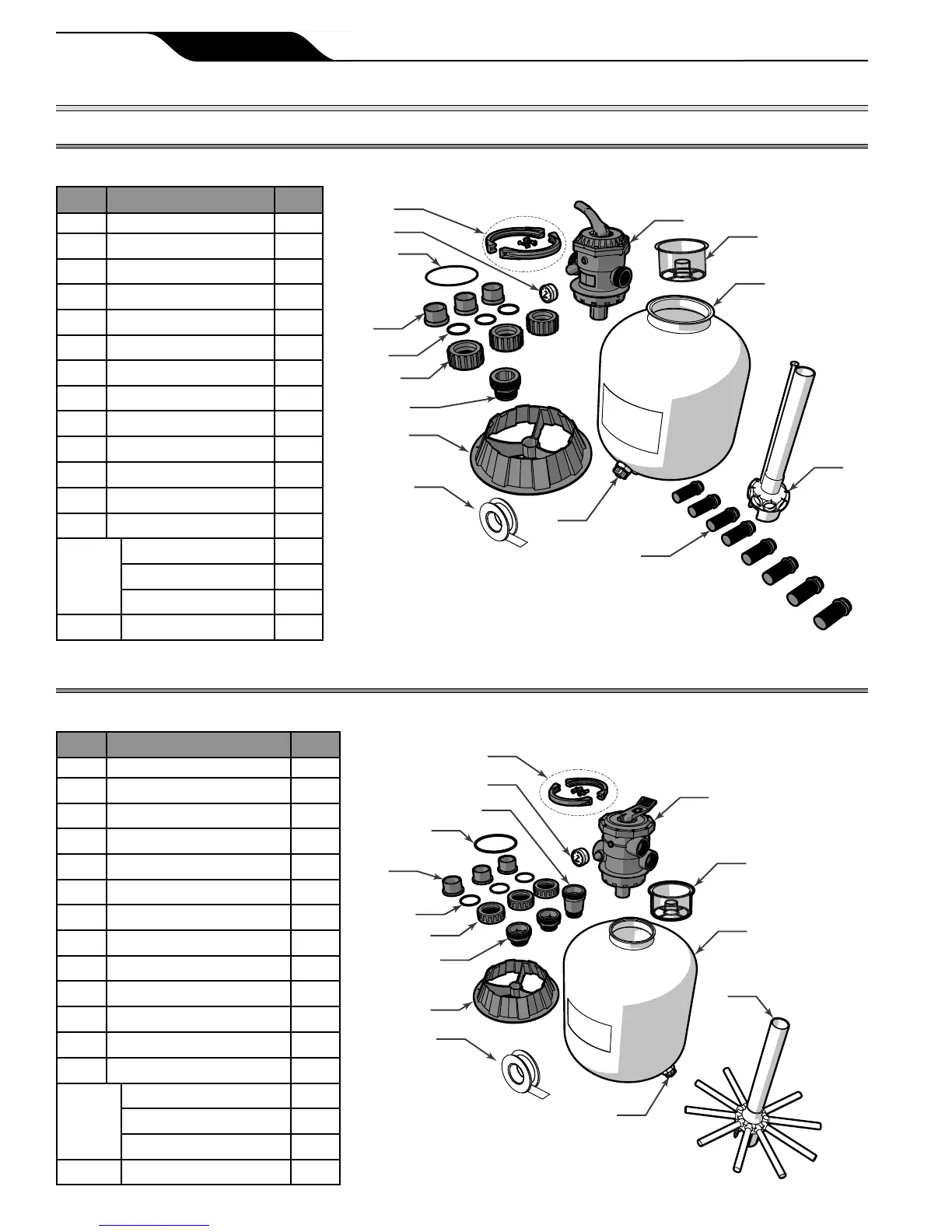

SECTION 2. PACKAGE CONTENTS
2.1 SFTM22-1.5
Unpack and check contents. If any parts are missing or damaged please call Customer Support at 1-800-822-7933.
ITEM DESCRIPTION QTY.
1 Multiport Valve (1.5”) 1
2 Sand Defl ector 1
3 Filter Tank 1
4 Lateral Hub Assembly 1
5 Lateral 8
6 Base 1
7 Union Adapter 1
8 Union Nut 3
9 Union O-Ring 3
10 Tailpiece 3
11 Valve O-Ring 1
12 Pressure Gauge 1
13 Drain Valve 1
14
Clamp Arm 2
Retaining Bolt 2
Capture Nut 2
15 PTFE Tape 1
1
3
2
4
5
7
8
9
10
11
12
14
13
6
15
2.2 SFTM24-2.0
Unpack and check contents. If any parts are missing or damaged please call Customer Support at 1-800-822-7933.
ITEM DESCRIPTION QTY.
1 Multiport Valve (2”) 1
2 Sand Defl ector 1
3 Filter Tank 1
4 Lateral & Hub Assembly 1
5 Base 1
6 Union Adapter 2
7 Union Nut 3
8 Union O-Ring 3
9 Tailpiece 3
10 Valve O-Ring 1
11 Extension Adapter 1
12 Pressure Gauge 1
13 Drain Valve 1
14
Clamp Arm 2
Retaining Bolt 2
Capture Nut 2
15 PTFE Tape 1
1
3
2
4
5
6
7
8
9
10
11
12
14
13
15
