8. 2 S0 pulse input
You can also connect S0 pulse transducers
per DIN EN62053-31 to each UMG 604-PRO
with inputs for 24 V.
To do this, you require an external auxiliary
voltage of 20 to 28V DC and an external 1.5
kOhm resistor each.
+
-
1.5k
S0 pulse transducer
24V
DC
Fig. UMG 604-PRO with inputs for 24V. Example with S0
pulse transducer.

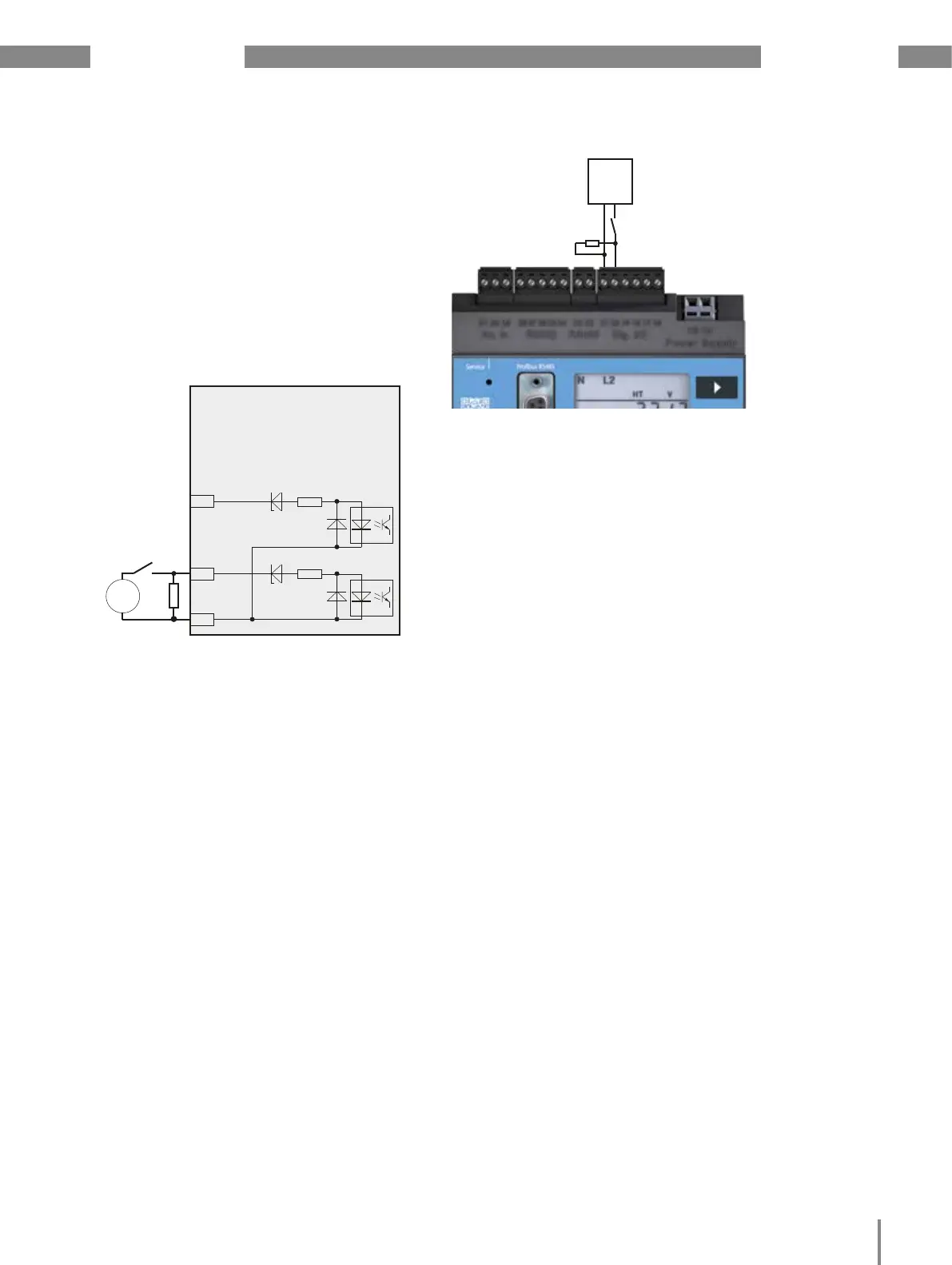

Fig. UMG 604-PRO with inputs for 24V and an S0 pulse
transducer on digital input 2.
S0 pulse
transducer
1.5k
+
-
UMG 604-PRO
Digital inputs 1-2
4k
19
Digital
Input 1
3.9V
3.9V
4k
20
21
Digital
Input 2
24V
=
