Janome AT2000D - CARE of YOUR MACHINE Cleaning the Upper Knife Area; Cleaning the Feed Dog

52
q
w
z
x c v
b
n m ,
q
e
r
t
y
u
i
o
!0
t
!1
r
e

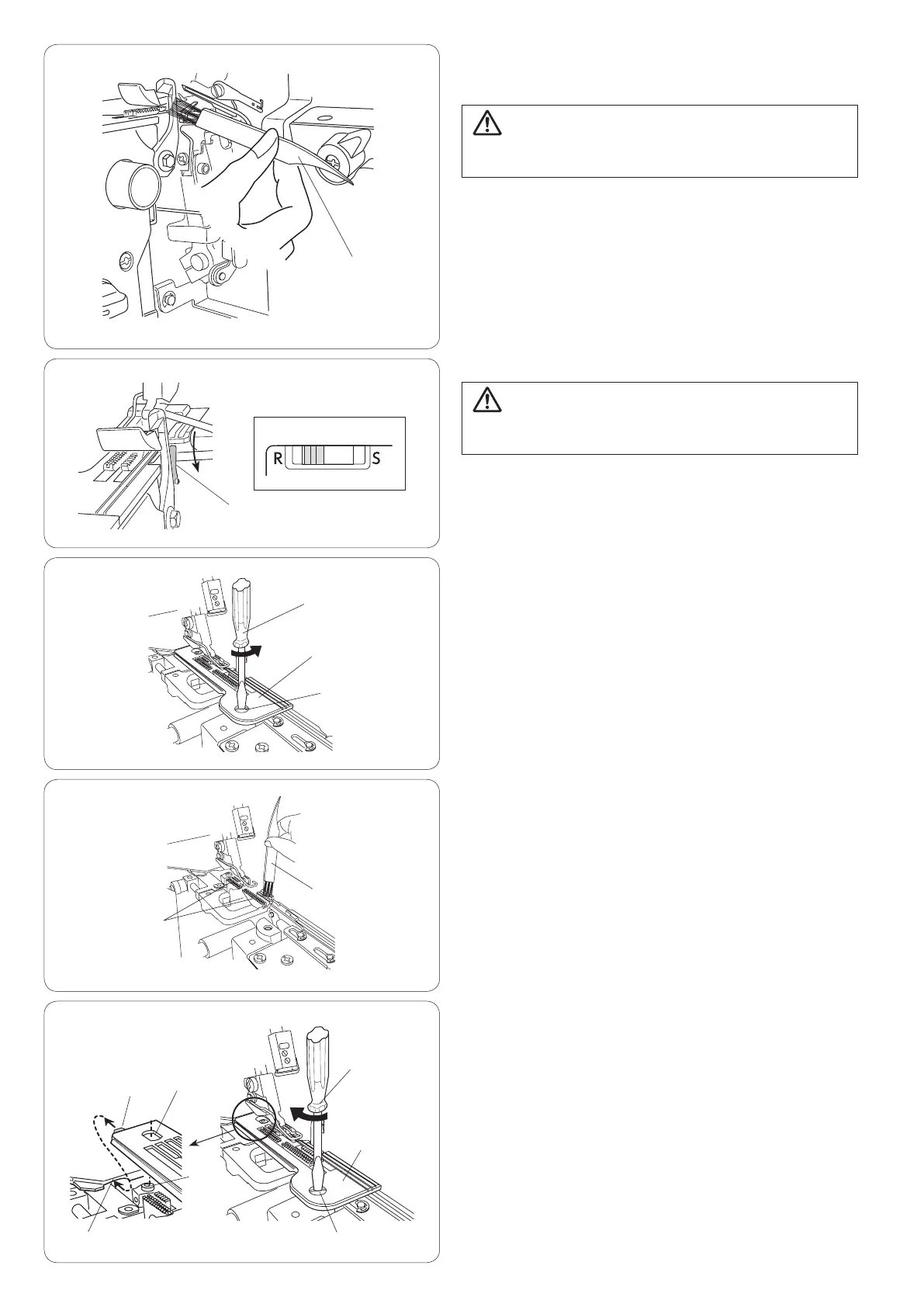

Open the looper cover.
With a forward brushing movement, use the lint brush to
remove any lint.
q Lint brush
* You may use a vacuum cleaner to clean the upper
knife area or feed dog.
CARE OF YOUR MACHINE
Cleaning the Upper Knife Area
CAUTION
Make sure to turn the power switch off before cleaning
the machine.
CAUTION
Make sure to turn the power switch off before cleaning
the machine.
Cleaning the Feed Dog
z Position the chaining nger lower than the surface of
the needle plate by pulling the chaning nger switch
knob toward you to “R” (refer to page 13).
q Chaining nger
w Chaining nger switch knob
x Open the looper cover and the side cover.
c Remove the needle and the presser foot (refer to
pages 9 and 10).
v Remove the setscrew with the large screw driver and
remove the needle plate.
e Setscrew
r Needle plate
t Large screwdriver
b Use the lint brush to remove any lint from around the
feed dog.
y Feed dog
u Lint brush
n Attach the needle plate by inserting the rib under the
edge of the rear cover and aligning the hole in the
needle plate with the pin.
Tighten the setscrew with the screwdriver.
e Setscrew
r Needle plate
t Large screwdriver
i Needle plate hole
o Rib
!0 Pin
!1 Edge of rear cover
m Attach the needle and the presser foot.
, Close the side cover and the looper cover.
