Janome HD718 - Rear Panel

8

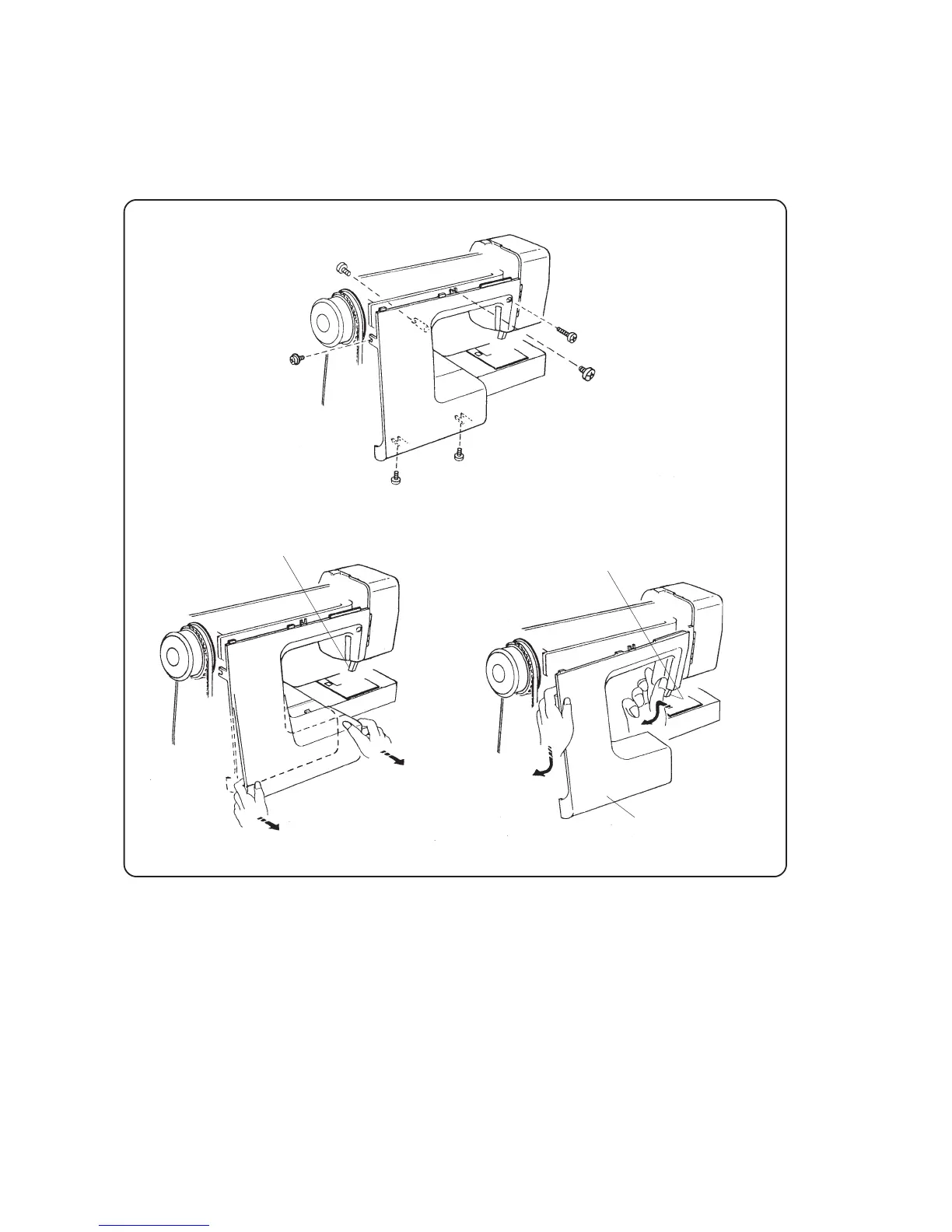

SERVICE ACCESS
REAR PANEL
1. Open the face cover.
2. Remove the top cover unit (See page 4), The belt cover (See page 6) and the front cover.
(See page 7)
3. Remove setscrews (A) ,(B), (C), and loosen setscrews (D) - (F).
4. Lower the presser foot lever and pull away the rear panel unit from the machine frame.
Twist and remove the arm cover part from the presser foot lever.
* When you attach the rear panel, put the “Window” on the plastic panel over the presser foot
lever. Then, tighten 6 screws.
(A)
(B)
(C)
(D)
(E)
(F)
Twist and remove the arm cover
part from the presser foot lever.
Presser foot lever
Rear panel unit
