6

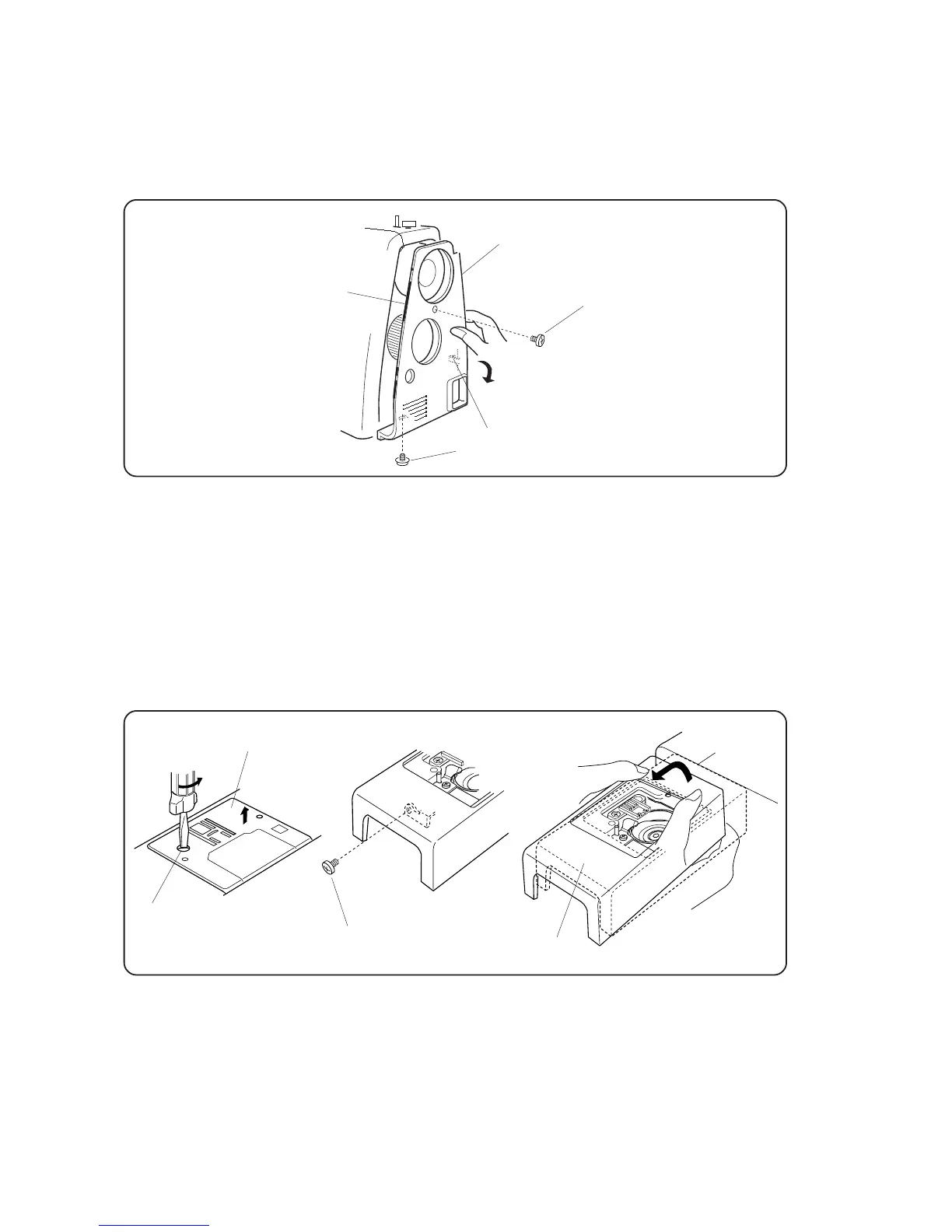

SERVICE ACCESS
BELT COVER
Loosen setscrew (A) and remove setscrew (B). Pull the right side of belt cover in the direction
of arrow, to and take the latch off. Then remove the belt cover.
* When you attach the belt cover, set the projection into the groove of the front cover.
FREE ARM COVER
1. Remove setscrew (A) and the needle plate.
2. Remove the bed cover (See page 5).
3. Remove setscrew (B) and the free arm cover.
Belt cover
Projection
(B)
(A)
Latch
(A)
(B)
Needle plate
Free arm cover
