SERVICE ACCESS
FRONT COVER

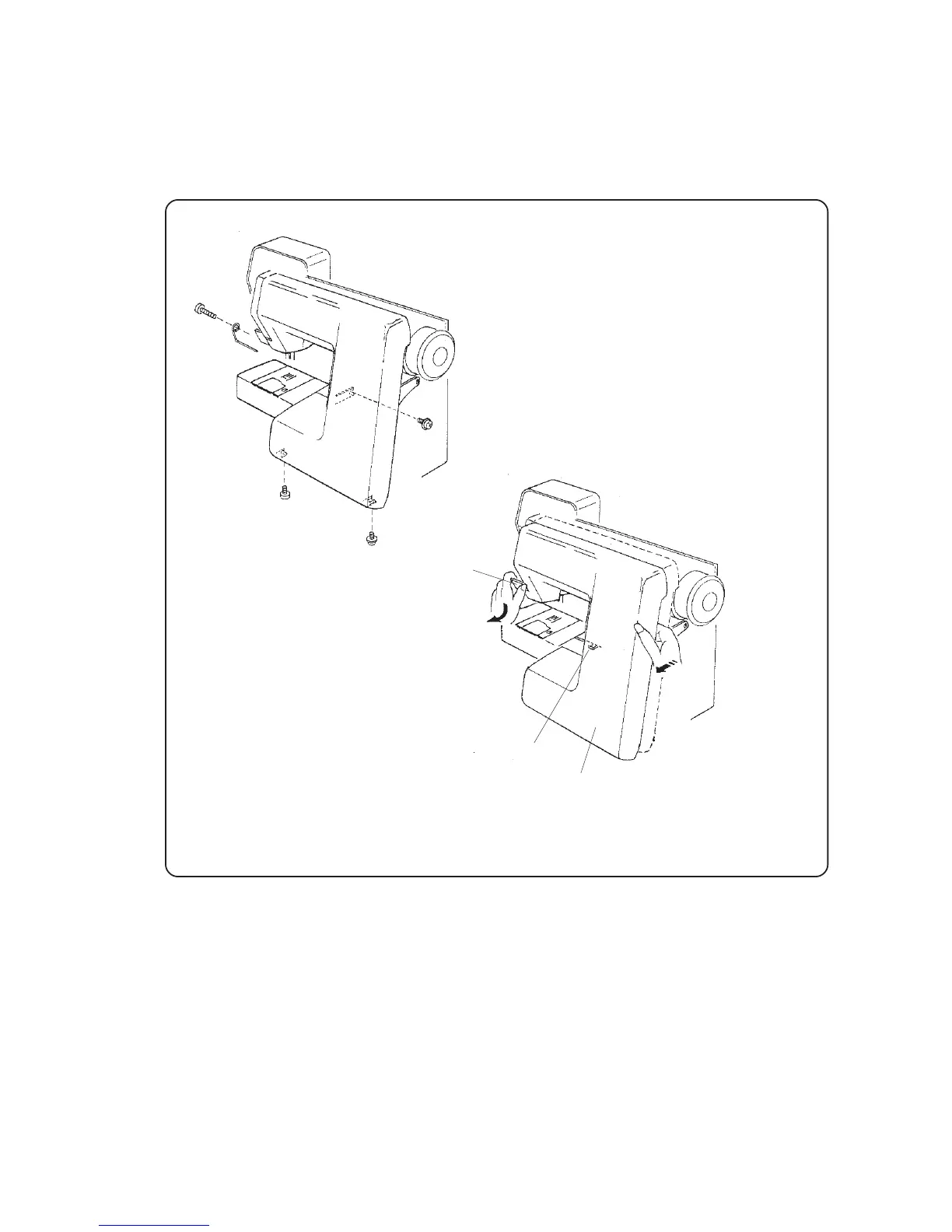

1. Open the face cover .
2. Remove the top cover (See page 4), and the belt cover. (See page 6)
3. Remove setscrew (A), (B).
4. Loosen setscrews (C), (D) then remove the front cover (E).
5. Pull the front cover off the latch (F) of the rear cover.
6. Remove the lower part of the thread guide (G).
* To replace, follow this procedure in reverse.
