REPLACING TRANSFORMER
TO REMOVE:
1. Remove the base. (See page 5)
2. Remove the machine socket and the connector.
Remove the connector from the lamp.
3. Remove the setscrew (A) (3pcs.) to remove the cover.
4. Remove the setscrew (C) (2pcs.) to remove the transformer.
TO ATTACH:
Follow the procedure above in reverse.

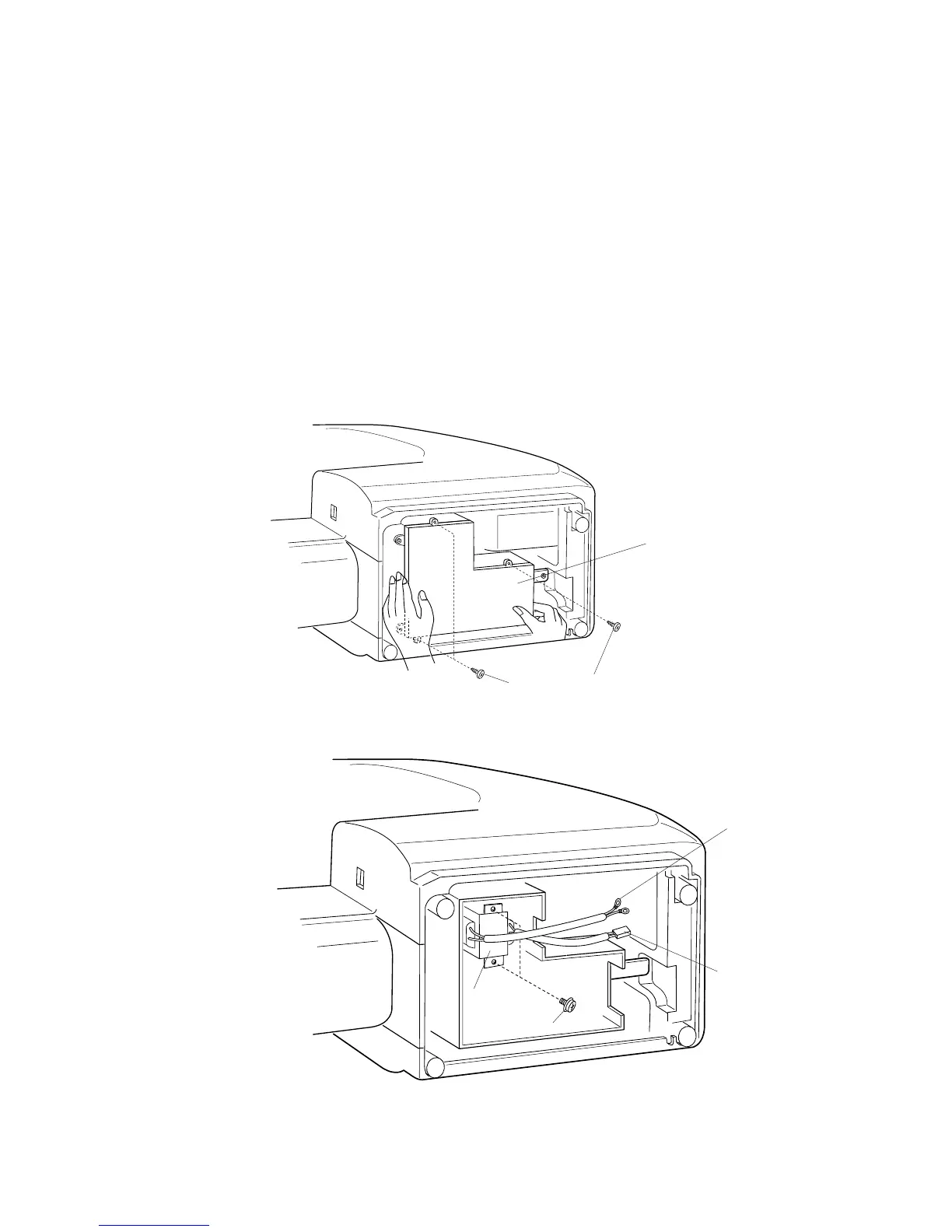

Setscrews(B)
Trancefomer
Setscrews (A)
Machine socket
connector
Cover
Lump connector
