10
MECHANICAL ADJUSTMENT

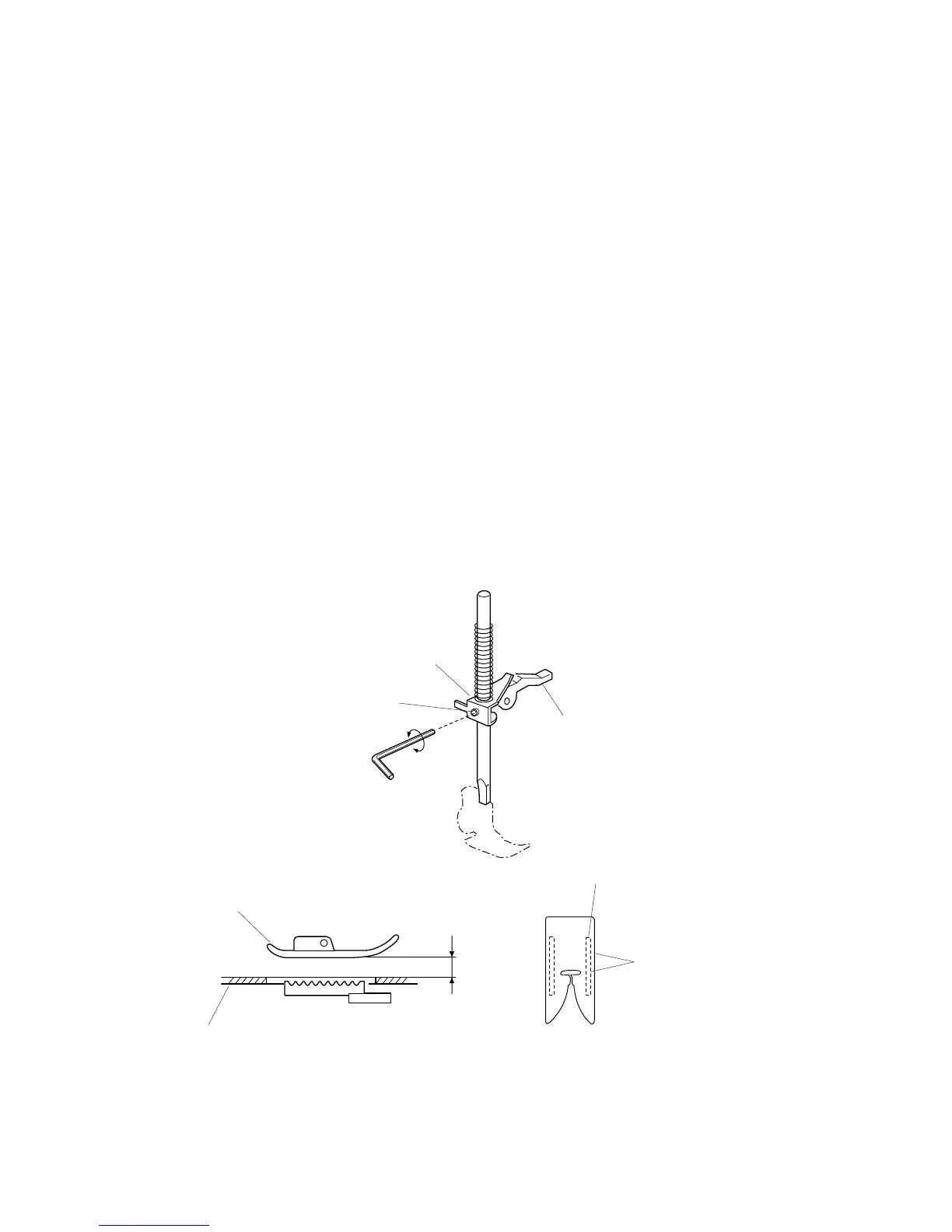

PRESSER BAR HEIGHT AND ALIGNMENT
TO CHECK:
1. Raise the presser foot lever (B).
2. The distance between the zigzag foot (A) and the needle plate (C) should be 6.0 mm.
If not, adjust as follows.
ADJUSTMENT PROCEDURE:
1. Open the face cover.
2. Raise the presser foot lever (B) and loosen the hexagonal socket screw (D) on the presser
bar holder (E).
3. Adjust the distance between the zigzag foot (A) and the needle plate (C) to 6.0 mm.
4. Tighten the setscrew (D) securely.
NOTE: When you tighten the setscrew (D), make sure the zigzag foot (A) runs parallel with
the feed dog.
(A)
(C)
(B)
(D)
(E)
(F) Feed dog slits
The feed dog slits and
the edge of presser
foot should be parallel.
6 mm
