Janome Sewing Machine - Spool Stand Assembly

9

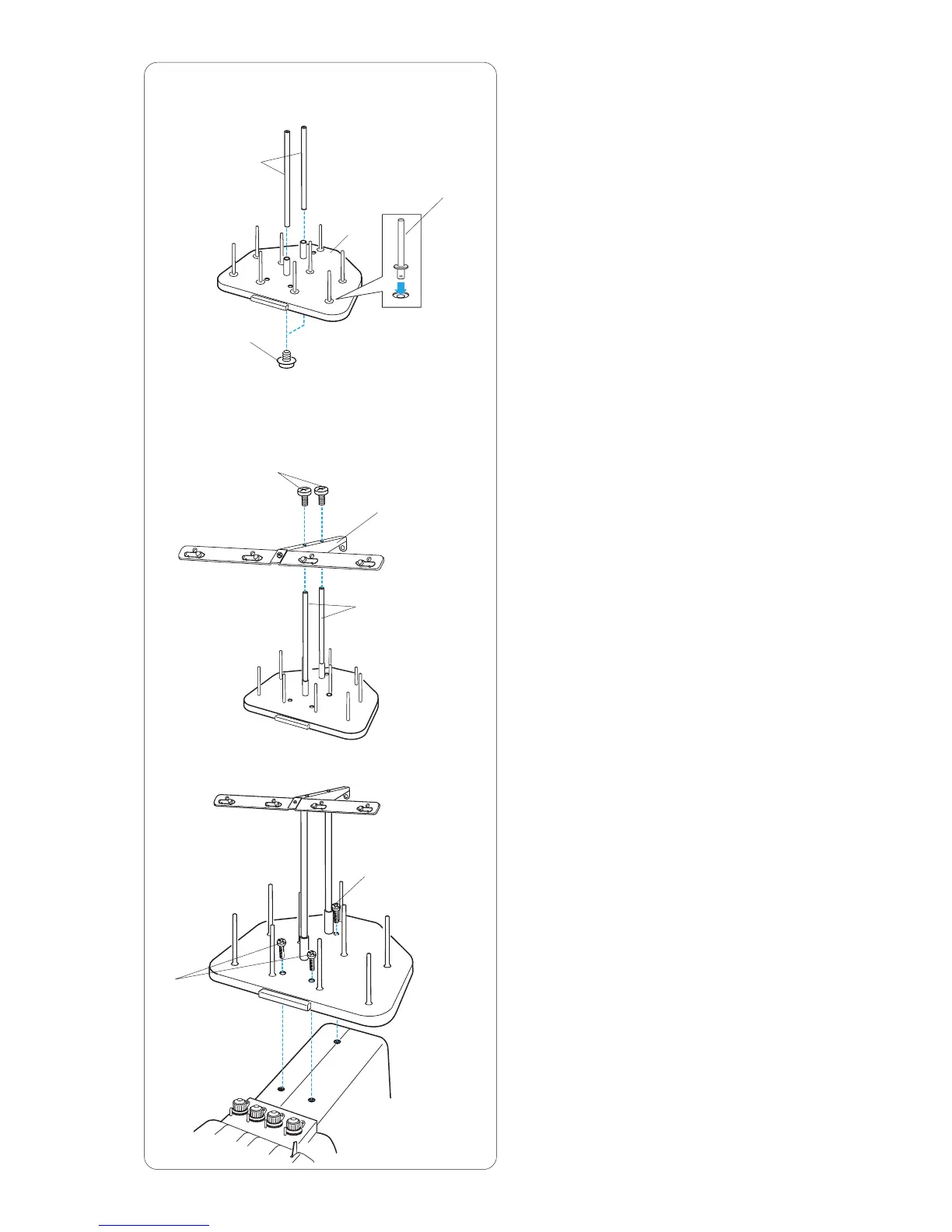

Assembling the Spool Stand
z Insert the thread guide poles into the sleeve of the
spool stand. Secure the poles with setscrews (A)
from the bottom.
Insert the spool pins into the spool stand.
q Thread guide poles
w Setscrews (A)
e Spool stand
r Spool pin
x Attach the thread guide bar to the thread guide poles
with the setscrews (B).
t Thread guide bar
y Setscrews (B)
c Attach the assembled spool stand to the machine
with the 3 setscrews (C).
u Setscrews (C)
q
w
e
r
t
y
u
q
u
z
x
c
