plumbing SyStem
utility center
The following information denes the function of the utility center water valve settings
indicated on the utility center label:
City Fixtures - Allows you to access water from all faucets using a pressurized water
source (referred to from here on as “city water”).
City Fill Tank - Allows you to ll your fresh water tank using city water.
Country Fill - Allows you to siphon ll your fresh water tank (using the 12-volt water
pump) when you do not have access to city water.
Normal - If the RV is not connected to city water, this setting allows you to pump water
from the fresh water tank to all faucets using the 12-volt water pump.
Sanitize/Winterize Lines – Allows you to sanitize or winterize the water lines in your
motor home.
Sanitize Tank – Allows you to sanitize the fresh water tank.
Depending on your model, the city water connections may be congured one of three ways:

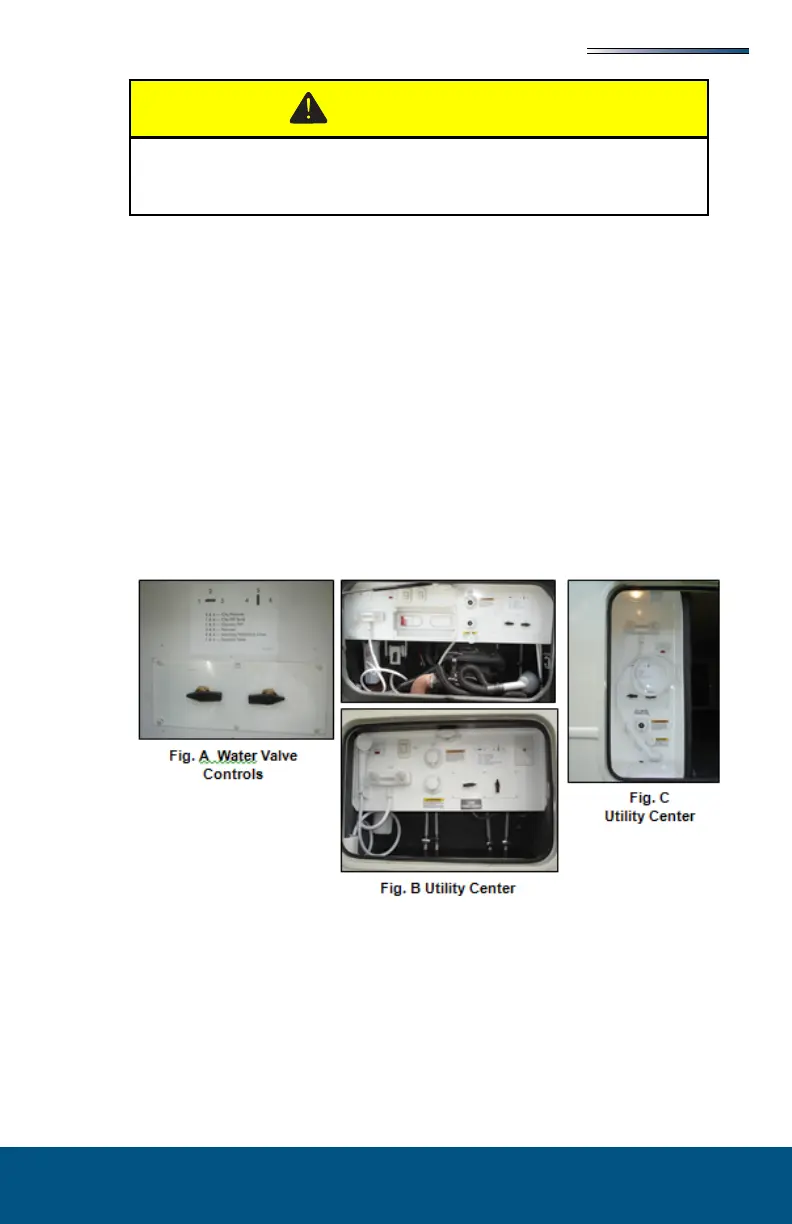

1. A water valve control panel (Fig A). The City Water Connection inlet will be located
on the outside of the motor home. The pump switch will be located inside the motor
home on the Monitor Panel.
2. A horizontal utility center (Fig B). This utility center contains the city water
connection inlet, pump switch, water valve controls, outside shower, black tank ush
inlet and a macerator discharge system.
3. A vertical utility center (Fig C). This utility center contains an outside shower, city
water connection inlet, black tank ush inlet, pump switch and water valve controls.
A water pressure regulator is recommended to prevent damage to the plumbing
system or components. To prevent damage when using the city water
connection, a 45 lb. (315 KPa) rated water pressure regulator is recommended.
