vehicle OperatiOn

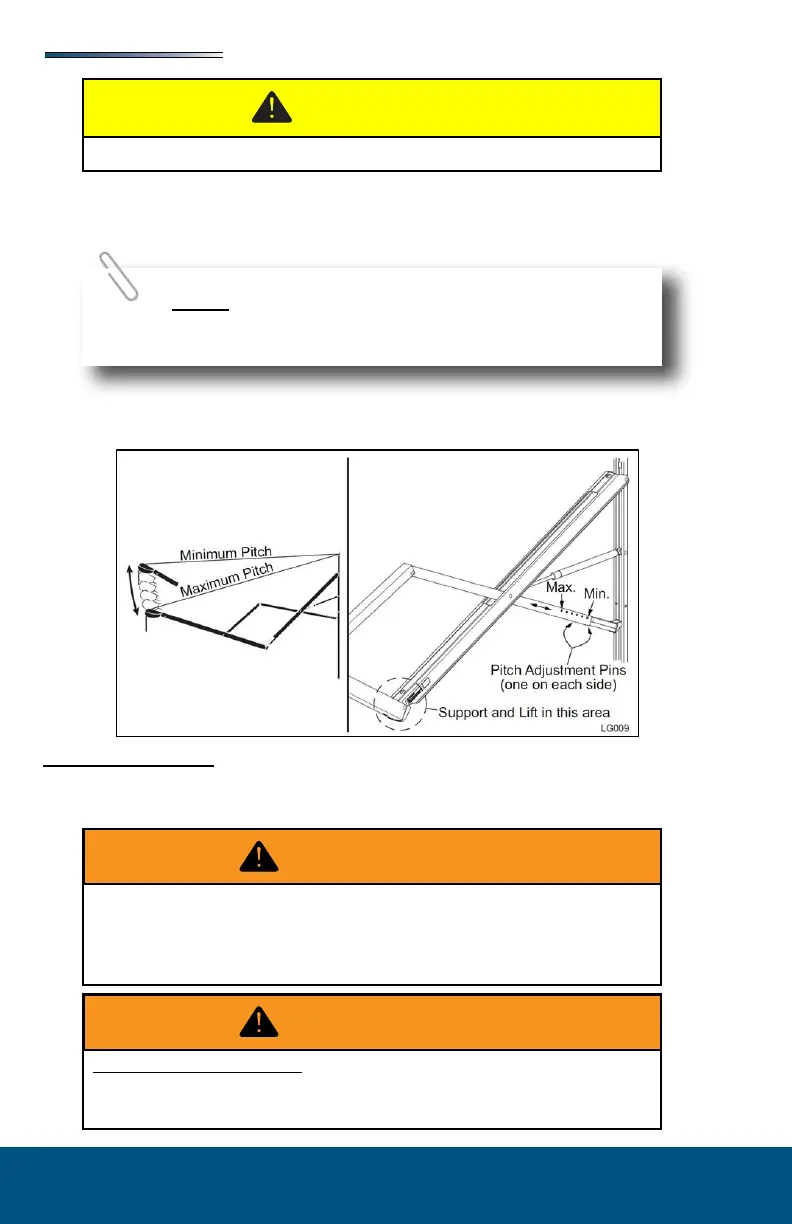

1. Hold on to the awning arm to keep it steady while adjusting the pitch.
2. Press in the pitch adjustment pins located on the scissor arm.
3. Slide the scissor arm to the desired set hole – towards the coach for a lower pitch and
away from the coach for a higher pitch.
Emergency Operation
If power to the vehicle is not available, the awning can be safely retracted by jumping the
motor using a 10VDC – 14VDC power source such as a cordless drill battery or car battery.
Use care when adjusting the pitch as the awning may move abruptly.
DO NOT USE A 110VAC POWER SOURCE FOR THE EMERGENCY
OVERRIDE PROCEDURE! Doing so will permanently damage the
awning! Do not use the Emergency Override without following the directions
below..
For awnings under 12 feet: The arms must be set at an equal pitch. Damage
to the arms and canopy can occur if the awning is retracted with the arms
uneven.
NOTE: Applying LIGHT pressure on the arm will decrease the
force required to press the pitch adjustment pins.
