plumbing SyStem
3 vAlve WAter heAter bypAss (if so equipped)
Most oor plans have a factory installed water heater bypass which enables you to avoid
lling the water heater with RV antifreeze. Bypass valves are typically located in close
proximity to the water heater. Outside utility centers (if so equipped) operate differently
than a factory installed bypass system. Refer to the Outside Utility Center section for
details.
Factory installed water heater bypass

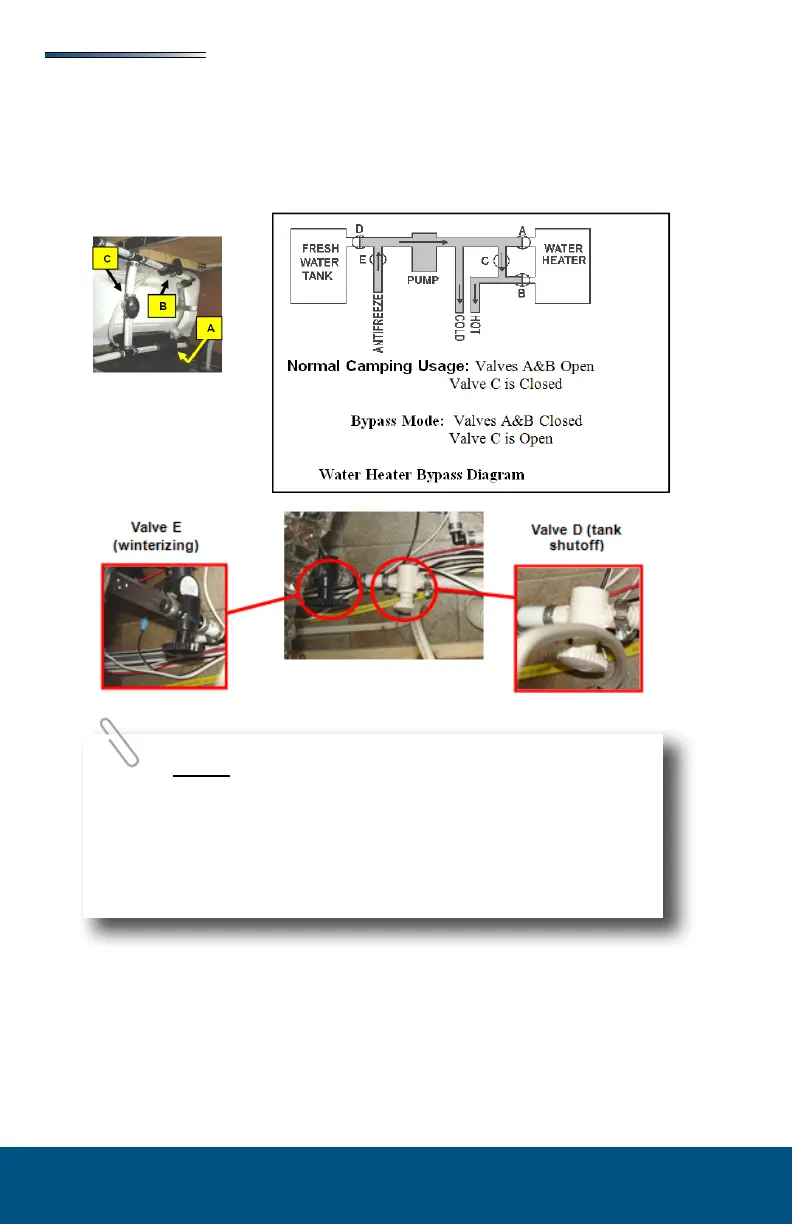

NOTE: In the Water Heater Bypass Diagram, valve D is the fresh
water tank shutoff. Valve E is used to introduce RV antifreeze into
the lines when winterizing the system and has a clear hose attached
to it. See Winterizing the Plumbing System in this manual. Valves D
& E are typically located in the vicinity of the water pump which can
be under a dinette bench, kitchen island, or bed.
outside shoWer (if so equipped)
A handheld shower assembly with both hot and cold water may be included for use outside
of your recreation vehicle.
1. Be sure the water heater is ON and had sufcient time to heat the water.
2. Open the outside shower compartment door.
3. If dry camping, be sure the 12-volt water pump is ON.
4. Remove the handheld shower from its holder.
