LM124, LM124A, LM224, LM224A
LM324, LM324A, LM324Y, LM2902, LM2902Q
QUADRUPLE OPERATIONAL AMPLIFIERS
SLOS066E– SEPTEMBER 1975 – REVISED FEBRUARY1997
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Wide Range of Supply Voltages:
Single Supply...3 V to 30 V
(LM2902 and LM2902Q
3 V to 26 V), or Dual Supplies
D
Low Supply Current Drain Independent of
Supply Voltage . . . 0.8 mA Typ
D
Common-Mode Input Voltage Range
Includes Ground Allowing Direct Sensing
Near Ground
D
Low Input Bias and Offset Parameters:
Input Offset Voltage ...3 mV Typ
A Versions ...2 mV Typ
Input Offset Current...2 nA Typ
Input Bias Current...20 nA Typ
A Versions . . . 15 nA Typ
D
Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage . . . 32 V
(26 V for LM2902 and LM2902Q)
D
Open-Loop Differential Voltage
Amplification . . . 100 V/mV Typ
D
Internal Frequency Compensation
description
These devices consist of four independent
high-gain frequency-compensated operational
amplifiers that are designed specifically to operate
from a single supply over a wide range of voltages.
Operation from split supplies is also possible
when the difference between the two supplies is
3 V to 30 V (for the LM2902 and LM2902Q, 3 V to
26 V) and V
CC
is at least 1.5 V more positive than
the input common-mode voltage. The low supply
current drain is independent of the magnitude of
the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational
amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For example, the
LM124 can be operated directly from the standard 5-V supply that is used in digital systems and easily provides
the required interface electronics without requiring additional ±15-V supplies.
The LM2902Q is manufactured to demanding automotive requirements.
The LM124 and LM124A are characterized for operation over the full military temperature range of –55°C to
125°C. The LM224 and LM224A are characterized for operation from –25°C to 85°C. The LM324 and LM324A
are characterized for operation from 0°C to 70°C. The LM2902 and LM2902Q are characterized for operation
from –40°C to 125°C.
Copyright 1997, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
+
–
IN –
IN +
OUT
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1OUT
1IN–
1IN+
V
CC
2IN+
2IN–
2OUT
4OUT
4IN–
4IN+
GND
3IN+
3IN–
3OUT

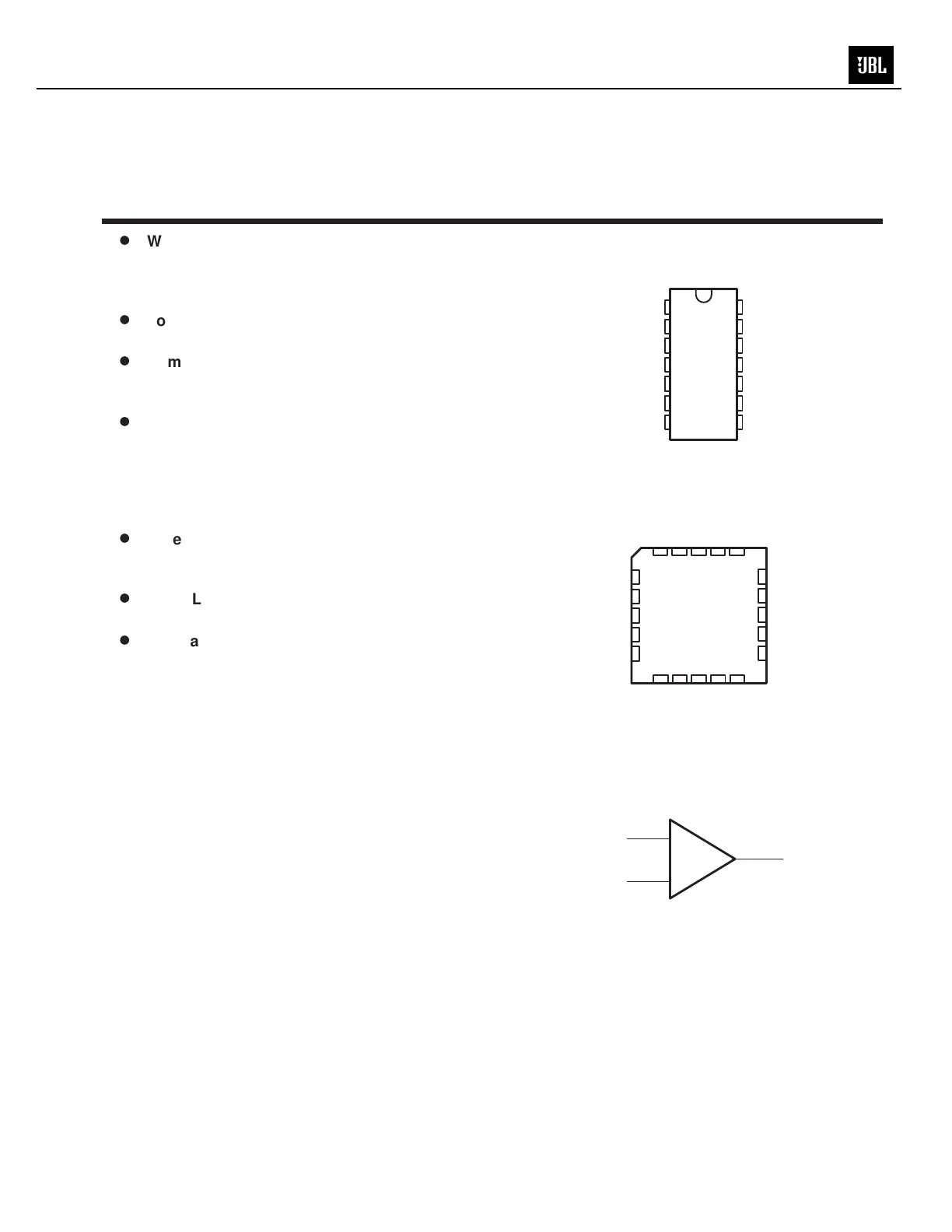

LM124, LM124A ...J OR W PACKAGE
ALL OTHERS . . . D, DB, N OR PW PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
4IN+
NC
GND
NC
3IN+
1IN+
NC
V
CC
NC
2IN+
LM124, LM124A . . . FK PACKAGE
(TOP VIEW)
1IN –
1OUT
NC
3IN –
4IN –
2IN –
2OUT
NC
NC – No internal connection
3OUT
4OUT
symbol (each amplifier)
