jcb 214 - Page 132

30 - 3
Section B Body & Framework
9803/3280
Section B
30 - 3
Issue 1
Air Conditioning

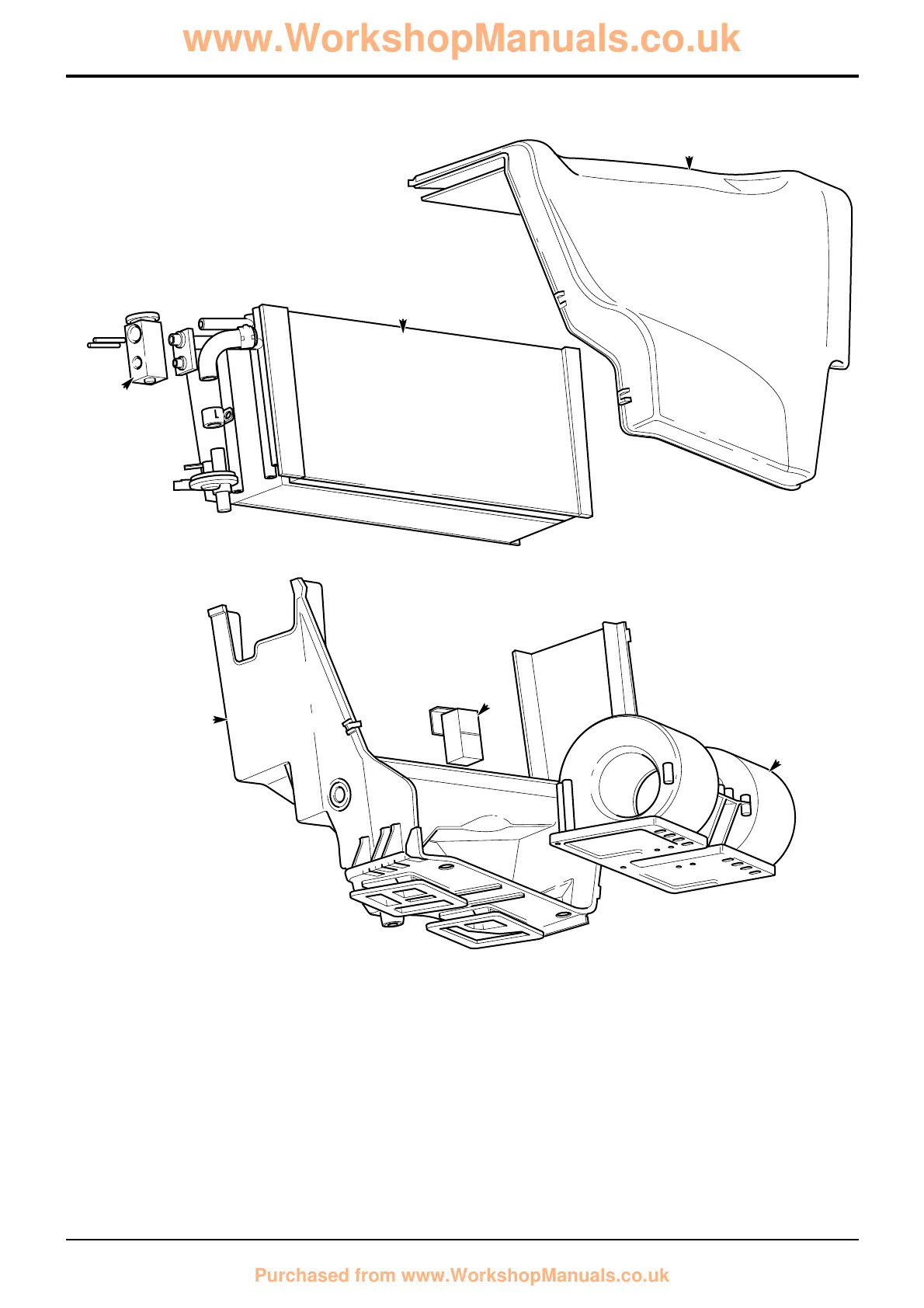

Component Key:
R HVAC Unit Top Cover
S Heat Exchanger (Heater and Evaporator)
T Expansion Valve
V Freeze Protection Thermostat
W Blower Unit
X HVAC Unit Housing
A401270
S
R
T
V
W
X
