Propshafts
Removing and Replacing
When Removing
Before removing propshafts always mark both companion
flanges and also mark the sliding joints prior to removal.
When Replacing
Upon reassembly, after lubricating sliding joints with JCB
MPL Grease, align the shafts against identification marks
previously made or, in the case of a shaft being renewed,
use the manufacturer's alignment markings.
Apply JCB Threadlocker and Sealer to threads of all flange
bolts.
Retaining straps C stretch with use, therefore these straps
must always be replaced with new ones.

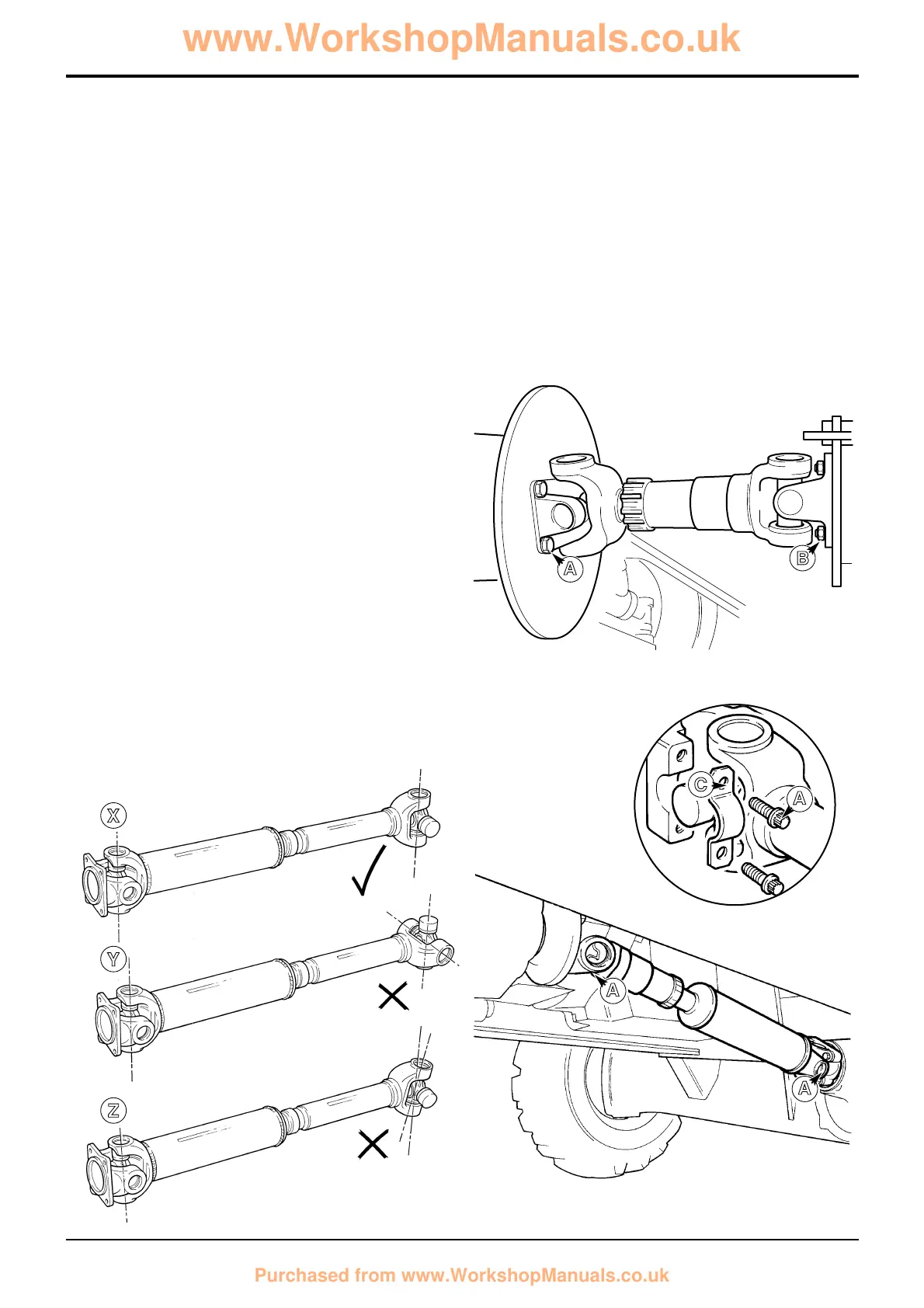

The propshaft must have both ends exactly on the same
plane as shown at X. The yokes must not be at right angles
as at Y or at an intermediate angle as at Z.
Torque Settings
Item Nm kgf m lbf ft
A 75 - 85 7.7 - 8.7 55 - 63
B 118 12 87
