jcb 214 - Parking Brake - Torque Figures

50 - 1
Torque Figures

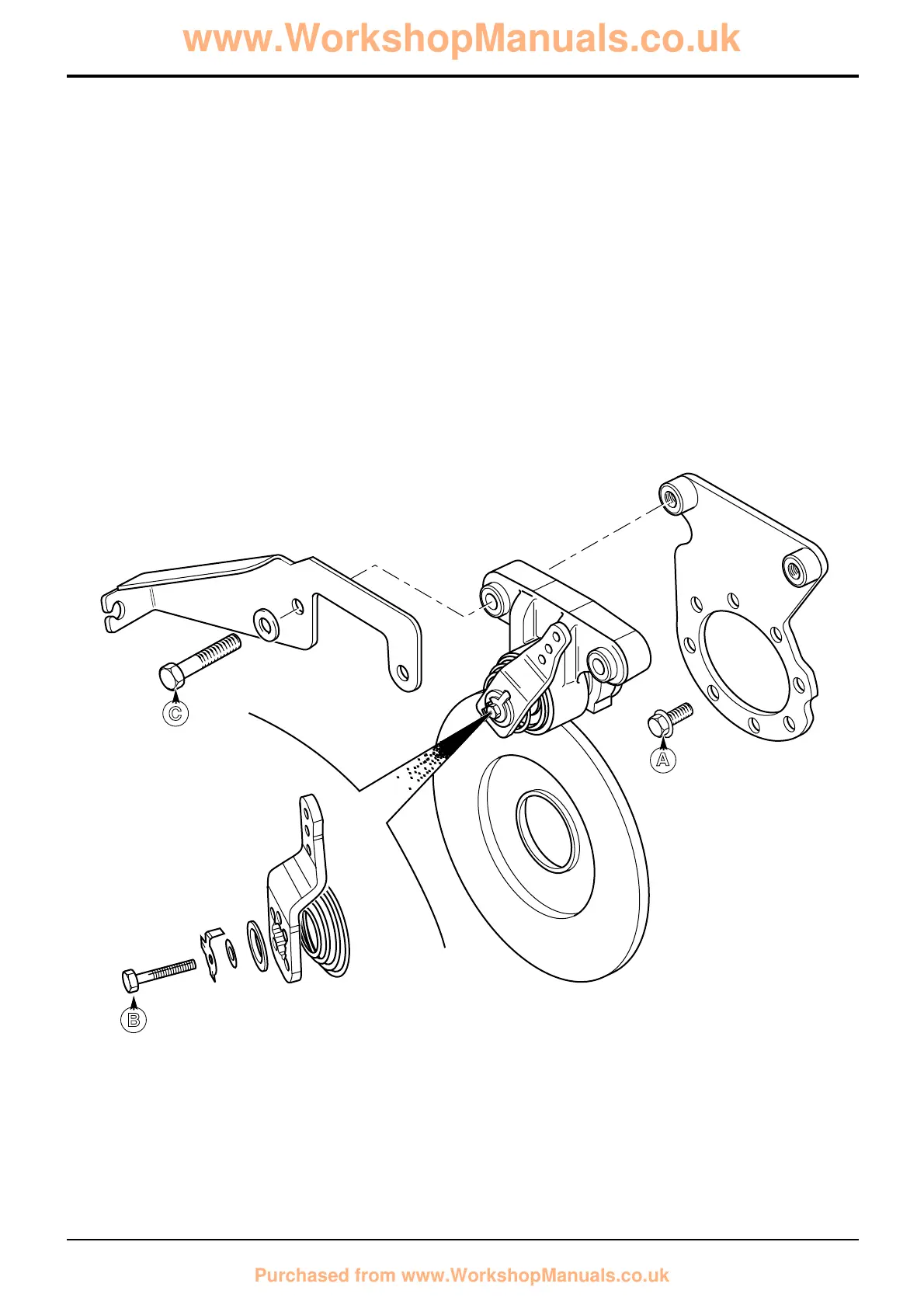

The illustration shows a typical installation.
Where appropriate, the grade of bolt is indicated in
parenthesis eg. (10.9). Refer also to relevant dismantling and
assembly procedures.
Torque Settings
Item Nm lbf ft
A 166 122 (12.9)
B 13-15 9-12
C 255 188 (10.9 Tuflok)
Section G Brakes
9803/3280
Section G
50 - 1
Issue 1
Parking Brake
A396540
A
B
C
