160 - 1
Section C Electrics
9803/3280
Section C
160 - 1
Issue 1
Harness Data

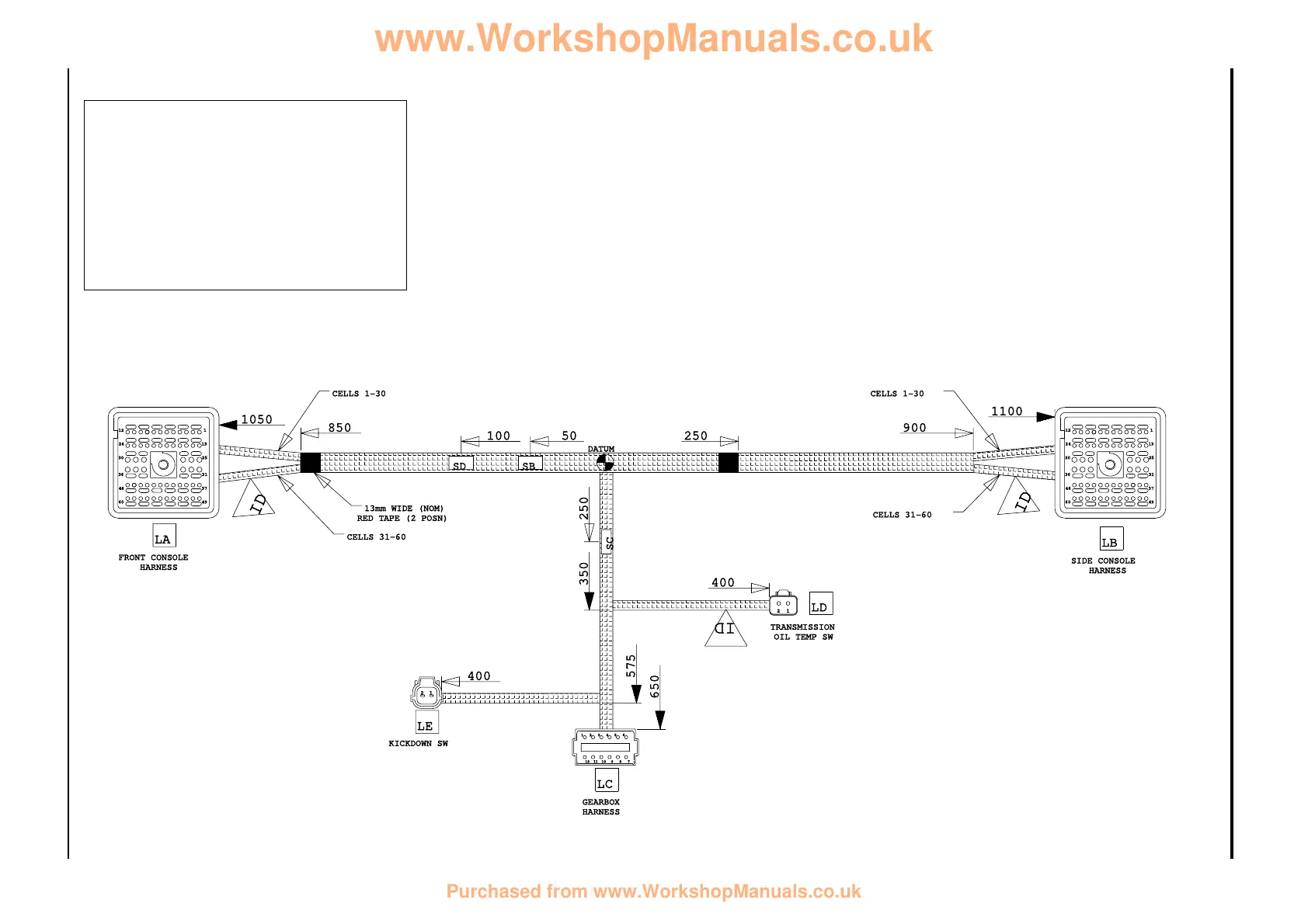

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10943 Issue 1
37
49
13
721/10943_1
Key to Connectors:
LA Front Console Harness
LB Side Console Harness
LC Gearbox
LD Transmission Oil Temperature Switch
LE Kickdown Switch
SB Transmission Fused Splice
SC Earth Splice
SD Transmission Oil P Splice
