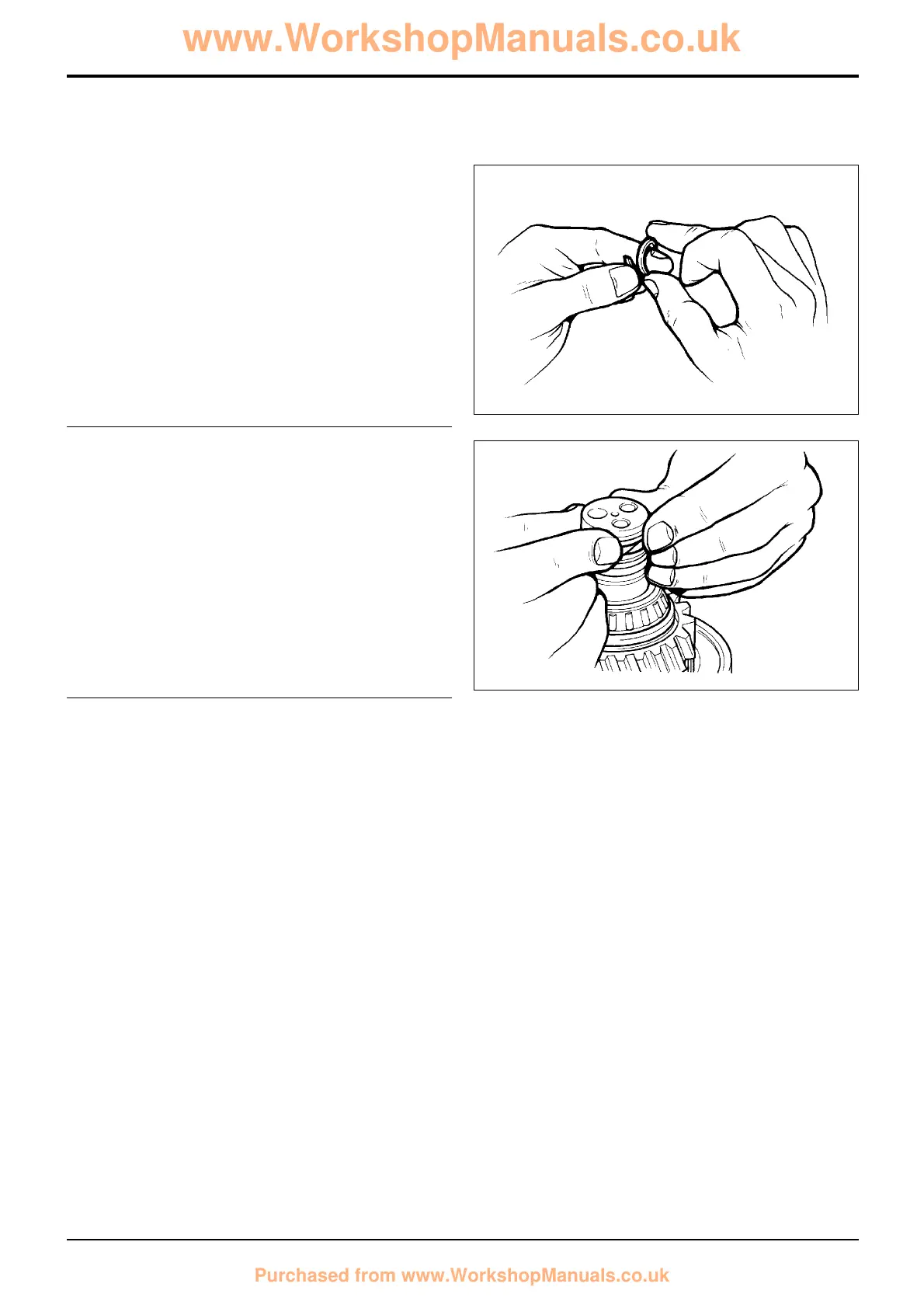

1 Wind the PTFE piston ring seal around your finger as
shown, so that the seal forms a 'coil'.
2 Smear the seal with grease and then fit the seal to the
shaft.
Make sure that the seal sits below or flush with the
outer diameter of the shaft. If necessary, use finger
pressure as shown to make the seal flush with the shaft.
CAUTION: If the seal is not set below or flush with the outer
diameter of the shaft, then the seal will 'cut' when the shaft is
fitted to its mating component.
117 - 1
Section F Transmission
9803/3280
Section F
117 - 1
Issue 1
Synchro Shuttle Transmission
Polytetrafluoroethylene (PTFE) Piston Ring Seals - Fitting Procedure
157250
157260
