jcb 214 - Drivepaths - 4 Speed; Powershift Gearbox

18 - 1
Section F Transmission
9803/3280
Section F
18 - 1
Issue 1
Basic Operation
Powershift Gearbox
Drivepaths - 4 Speed
1F
1st GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Z Layshaft Zs
S 2/4 Wheel Drive Ss
2F
2nd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Z Layshaft Zs
S 2/4 Wheel Drive Ss
3F
3rd GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
T Forward Low Ts
Y Mainshaft Ys
S 2/4 Wheel Drive Ss
4F
4th GEAR FORWARD (4 wheel drive)
Clutches Engaged Solenoids Energised
U Forward High Us
Y Mainshaft Ys
S 2/4 Wheel Drive Ss

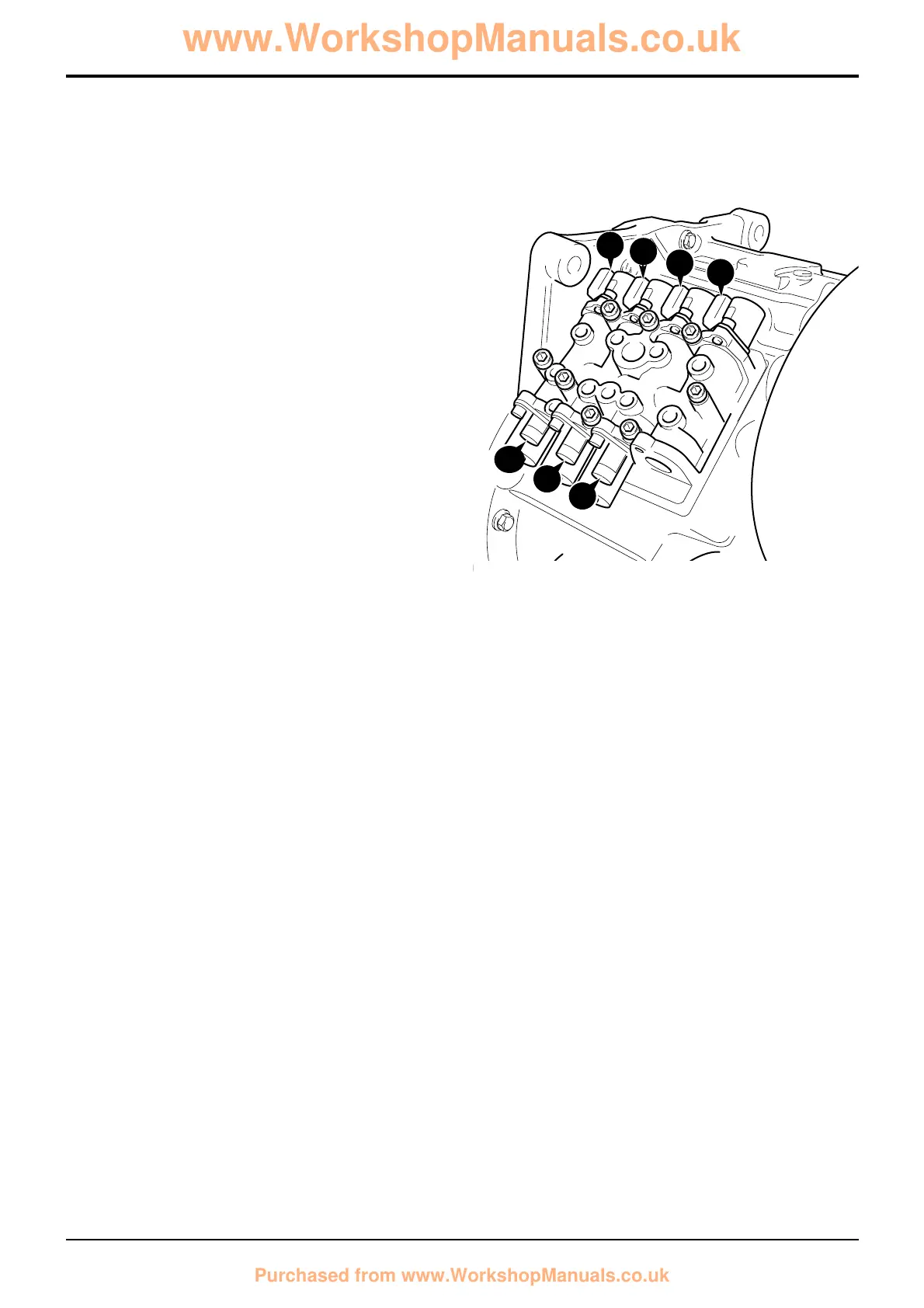

A396740
Ss
Zs
Ys
Ts
Ws
Vs
Us
