20-5
Section G Brakes
9803/3280
Section G
20-5
Issue 1
Service Procedures
Parking Brake - Switch Adjustment
1 Select the starter key switch to the ON position, do not
start the engine.
2 Select either forward or reverse.
3 Raise the handbrake to the ON position.

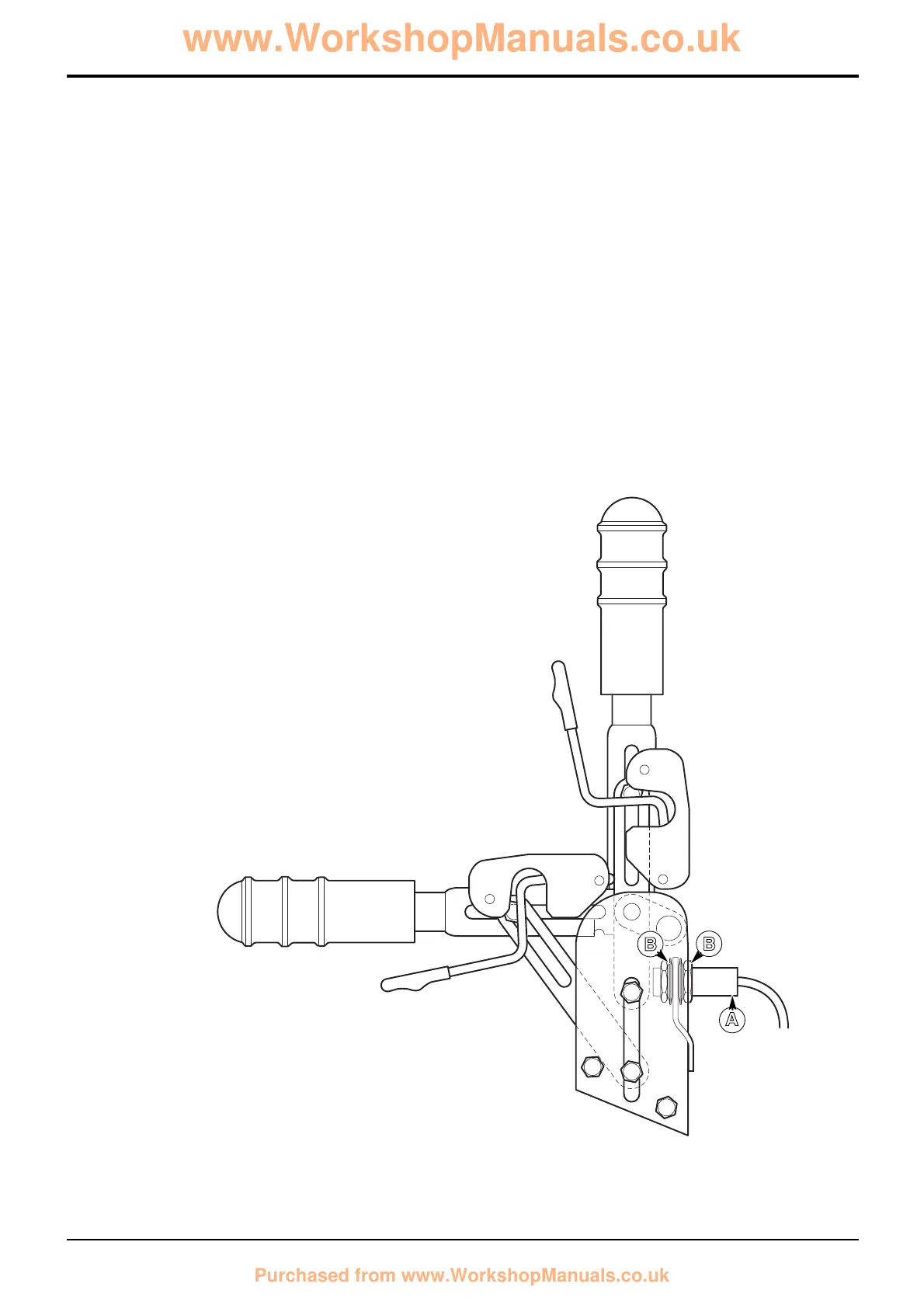

4 Adjust locknuts B and use feeler gauges to set the
proximity switch A so that there is clearance of 2mm
MIN - 3mm MAX between the end of the switch and the
handbrake lever. The light emitting diode (L.E.D.) on the
switch should be illuminated and the audible alarm
should sound.
5 Secure the switch in position by tightening locknuts B.
6 Release the parking brake and the audible alarm should
cease.
For adjustment of the Parking Brake, refer to Parking Brake
- Adjustment.
Torque Settings
Item Nm kgf m lbf ft
B 29 2.95 21
