155 - 2
Section C Electrics
9803/3280
Section C
155 - 2
Issue 1
Harness Data

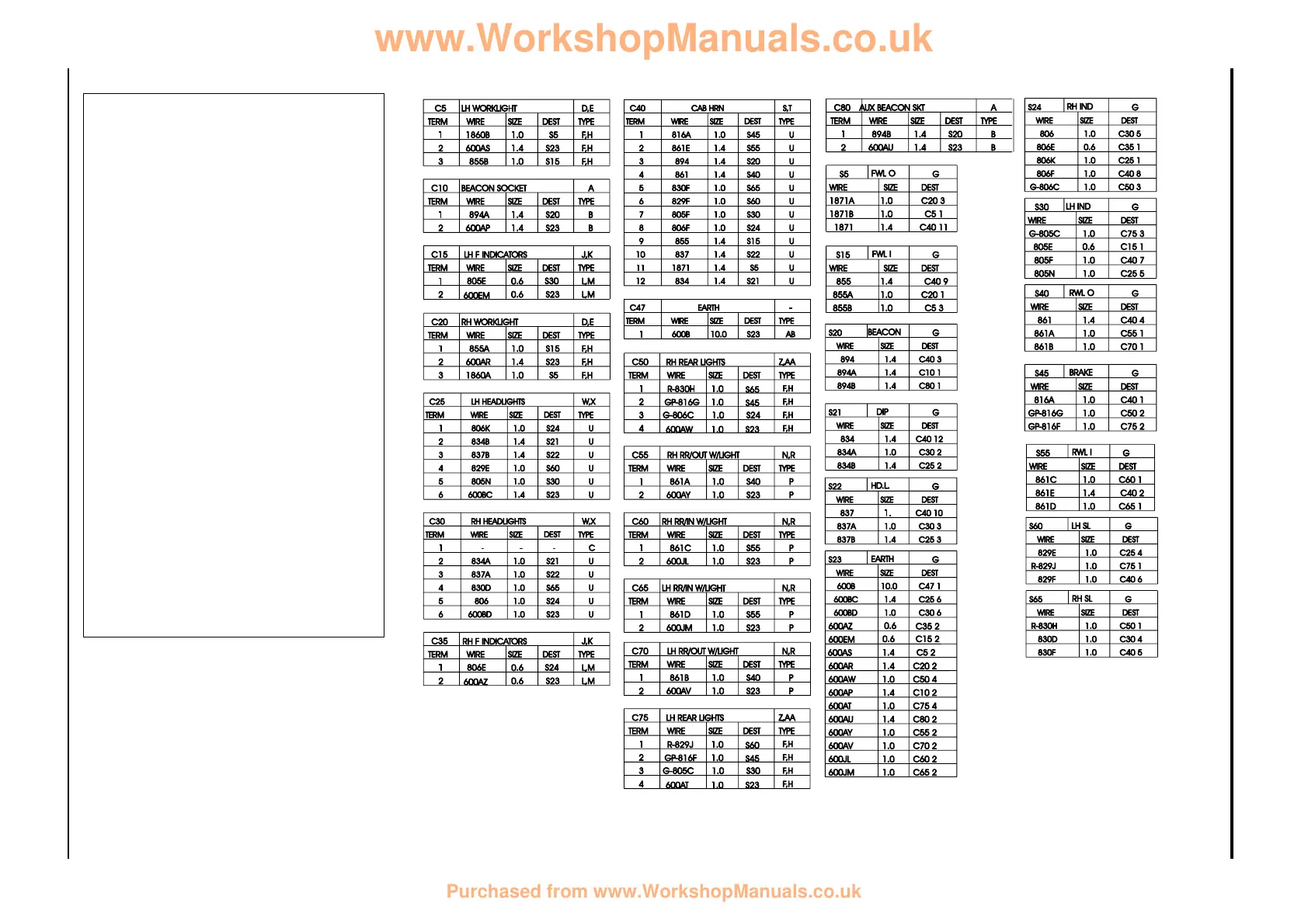

Harness Drawing - Cab Roof (USA only) page 2 of 2 - CAD 721/10966 Issue 1
721/10966_2
Key to Connectors:
C5 LH Worklight
C10 Beacon Socket
C15 LH Front Indicators
C20 RH Worklight
C25 LH Headlights
C30 RH Headlights
C35 RH Front Indicators
C40 Cab Horn
C47 Earth
C50 RH Rear Lights
C55 RH RR/Out Worklight
C60 RH RR/In Worklight
C65 LH RR/In Worklight
C70 LH RR/Out Worklight
C75 LH Rear Lights
C80 Auxiliary Beacon Socket
S5 FWL O
S15 FWL 1
S20 Beacon
S21 Dip
S22 HD.L
S23 Earth
S24 RH Indicators
S30 LH Indicators
S40 RWL O
S45 Brake
S55 RWL 1
S60 LH SL
S65 RH SL
