155 - 4
Section C Electrics
9803/3280
Section C
155 - 4
Issue 1
Harness Data

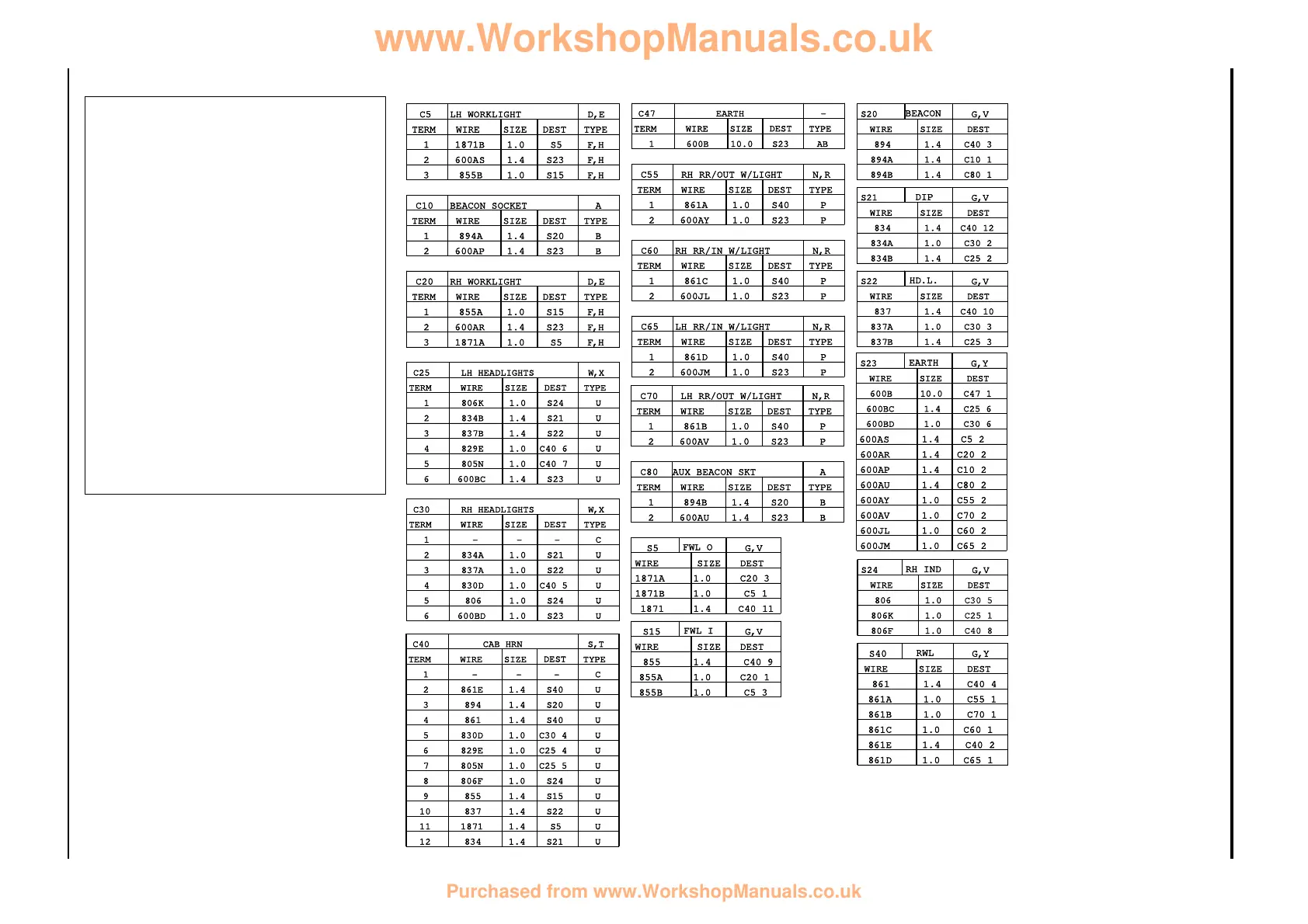

Harness Drawing - Cab Roof (not USA) page 2 of 2 - CAD 721/10965 Issue 1
C30 5
C40 8
C25 1
721/10965_2
Key to Connectors:
C5 LH Worklight
C10 Beacon Socket
C20 RH Worklight
C25 LH Headlights
C30 RH Headlights
C40 Cab Horn
C47 Earth
C55 RH RR/Out Worklight
C60 RH RR/In Worklight
C65 LH RR/In Worklight
C70 LH RR/Out Worklight
C80 Auxiliary Beacon Socket
S5 FWL O
S15 FWL 1
S20 Beacon
S21 Dip
S22 HD.L
S23 Earth
S24 RH Indicators
S40 RWL
