160 - 3
Section C Electrics
9803/3280
Section C
160 - 3
Issue 1
Harness Data

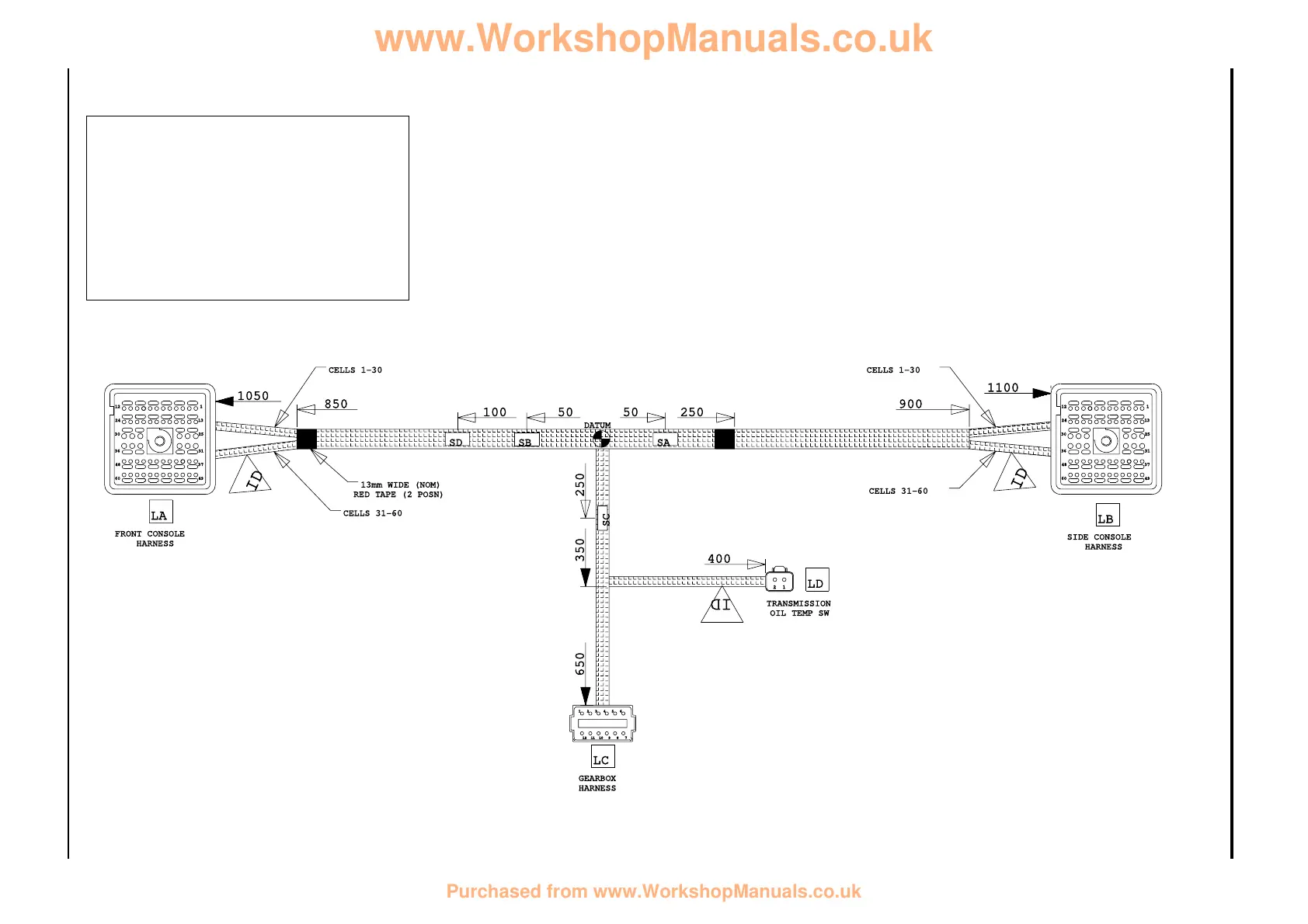

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10942 Issue 1
36
60
48
31
37
49
25
13
30
24
12
36
60
48 37
49
13
30
24
12
13mm WIDE (NOM)
RED TAPE (2 POSN)
FRONT CONSOLE
HARNESS
SIDE CONSOLE
HARNESS
TRANSMISSION
OIL TEMP SW
GEARBO
HARNESS
DATUM
CELLS 1-30 CELLS 1-30
CELLS 31-60
CELLS 31-60
101112
721/10942_1
Key to Connectors:
LA Front Console Harness
LB Side Console Harness
LC Gearbox
LD Transmission Oil Temperature Switch
SA Dump Splice
SB Transmission Feed Splice
SC Earth Splice
SD Transmission OIl P Splice
