Harness Data

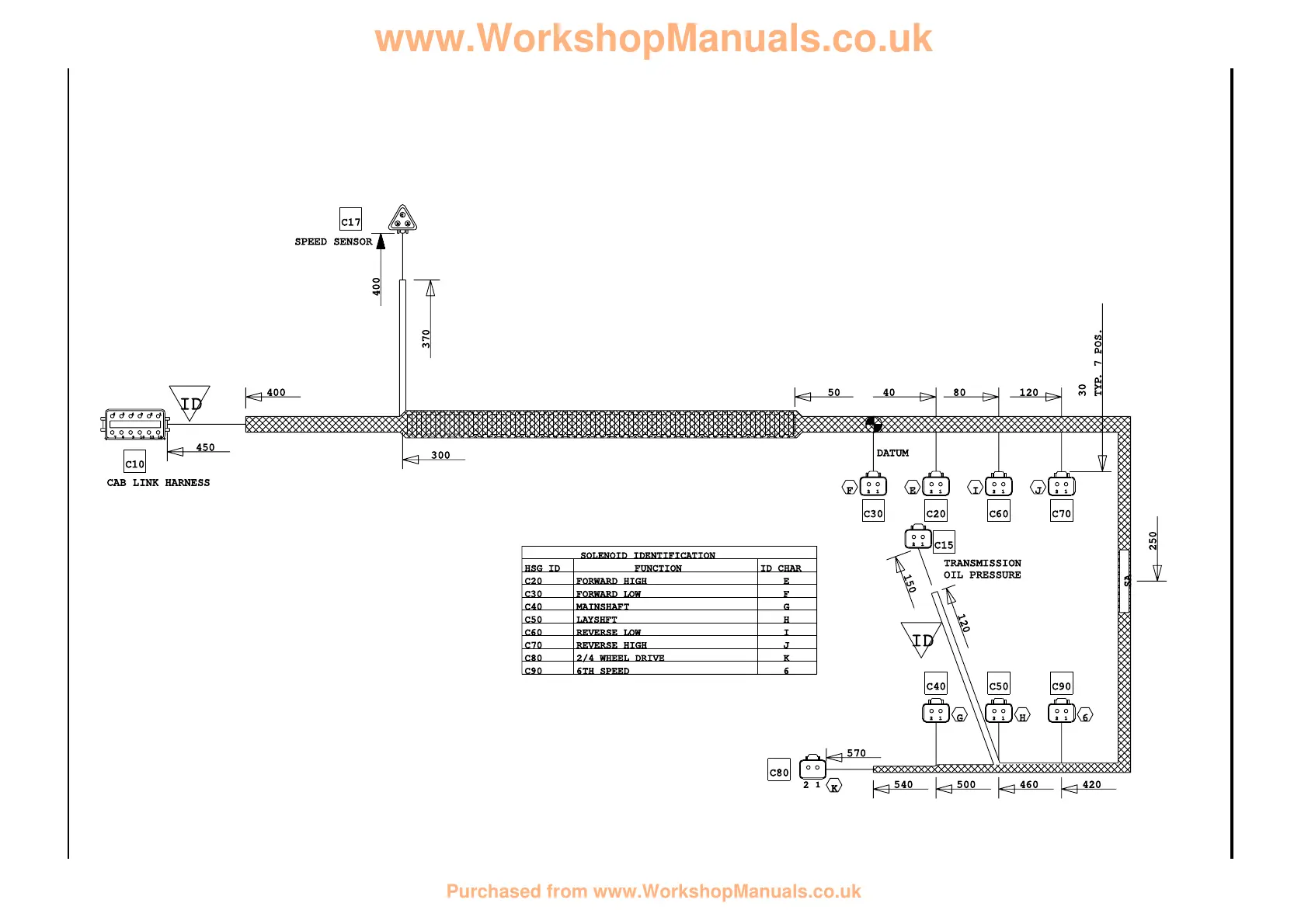

Harness Drawing - Transmission, page 1 of 2 - CAD 721/10941 Issue 1
SOLENOID IDENTIFICATION
HSG ID FUNCTION ID CHAR
C20 FORWARD HIGH
C30 FORWARD LOW
C40 MAINSHAFT
C50 LAYSHFT
C60 REVERSE LOW
C70 REVERSE HIGH
C80 2/4 WHEEL DRIVE
C90 6TH SPEED
150
120
721/10941_1
