jcb 214 Service Manual

11 - 7
Section E
Hydraulics
9803/3280
Section E
11 - 7
Issue 1

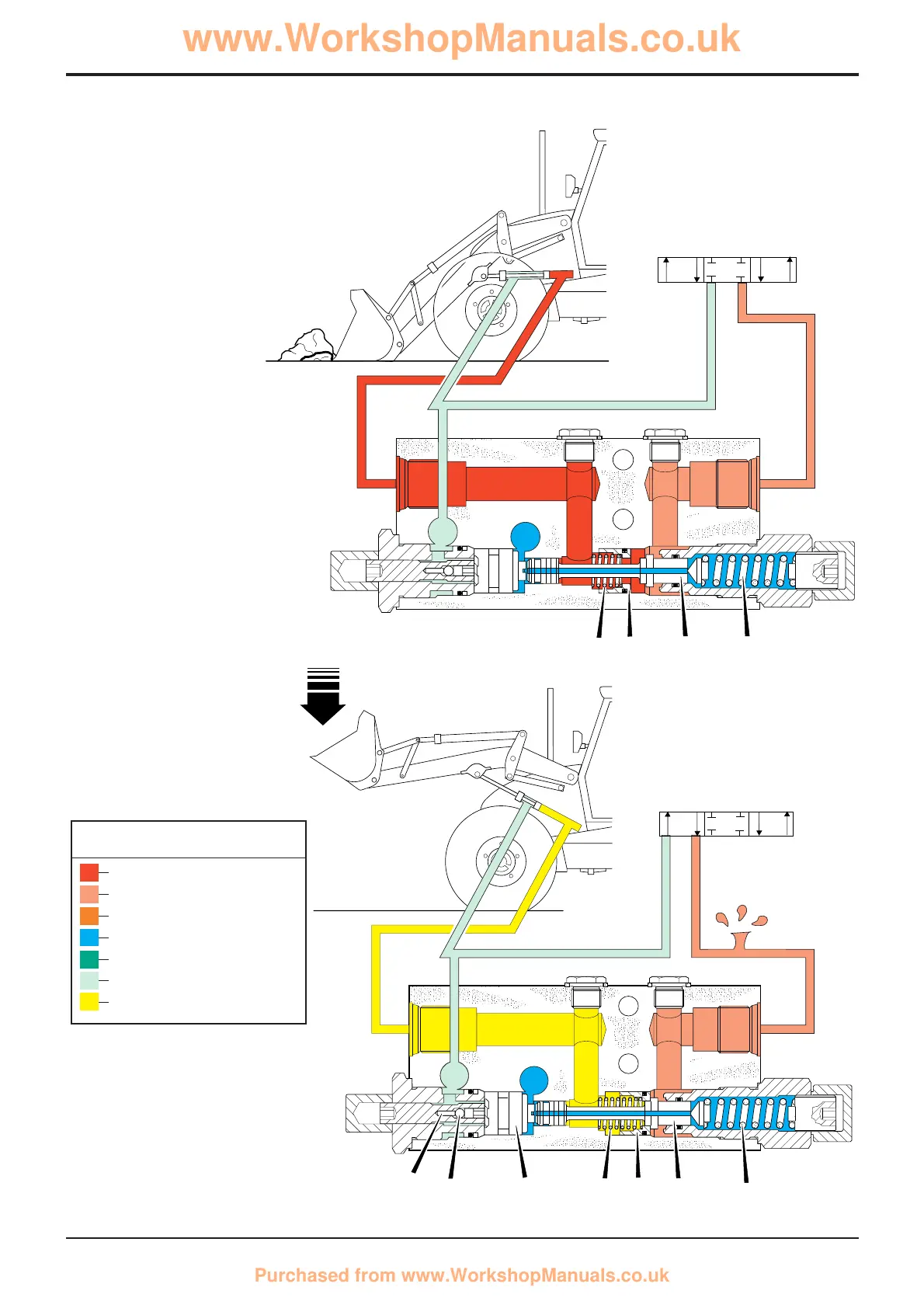

Circuit Descriptions
(E)
(C2)
(P) (T)
(V2)
A
B
J H
9
A395820
(E)
(C2)
(P) (T)
(V2)
A
J
H
B
L
K
G
9
A395830
Full Pressure
Pressure
Servo
Neutral
Exhaust
Cavitation
Lock Up
A390630
Key to Oil Flow & Pressure
