Section F Transmission
9803/3280
Section F
1 - 3
Issue 1
Service Tools

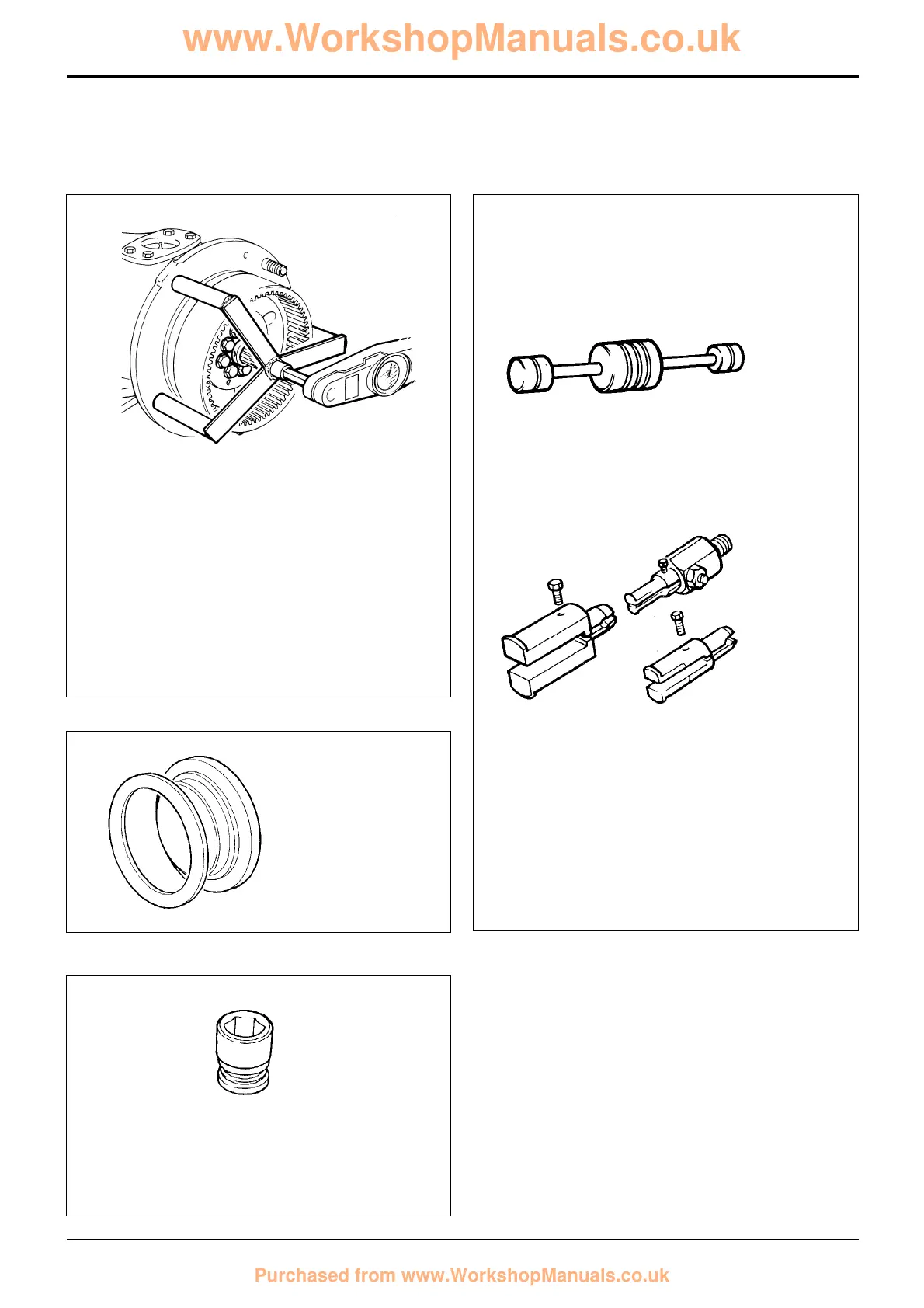

Torque Measuring Tool for Wheel Hub Seals
Manufacture locally, procedures in this manual show
checking the wheel hub seal using a rolling force.
However, the torque can be measured using above
locally manufactured tool.
Bearing rolling torque is 12 to 22 Nm (9 to 16 lbf ft)
excluding seal drag. Maximum permissible including
seal drag is 40 Nm (29.5 lbf ft).
S261230
892/00224
Impulse Extractor Set for Hub Bearing Seals
892/00225 Adapter - Impulse Extractor
Small 17mm to 25mm
Medium 25mm to 45mm
Large 45mm to 80mm
993/59500 Adapter - Impulse Extractor (syncro
shuttle and powershift transmission)
S197070
892/00817 17 mm A/F x 3/4in. square drive
892/00818 22 mm A/F x 3/4in. square drive
892/00819 15 mm A/F x 1/2in. square drive
892/00333 19 mm A/F x 3/4in. square drive
S216290
892/00891
Fitting Tool Assembly for
Wheel Hub Seals
S227760
