jcb 214 Service Manual

1-5
Section F Transmission
9803/3280
Section F
1-5
Issue 1
Service Tools

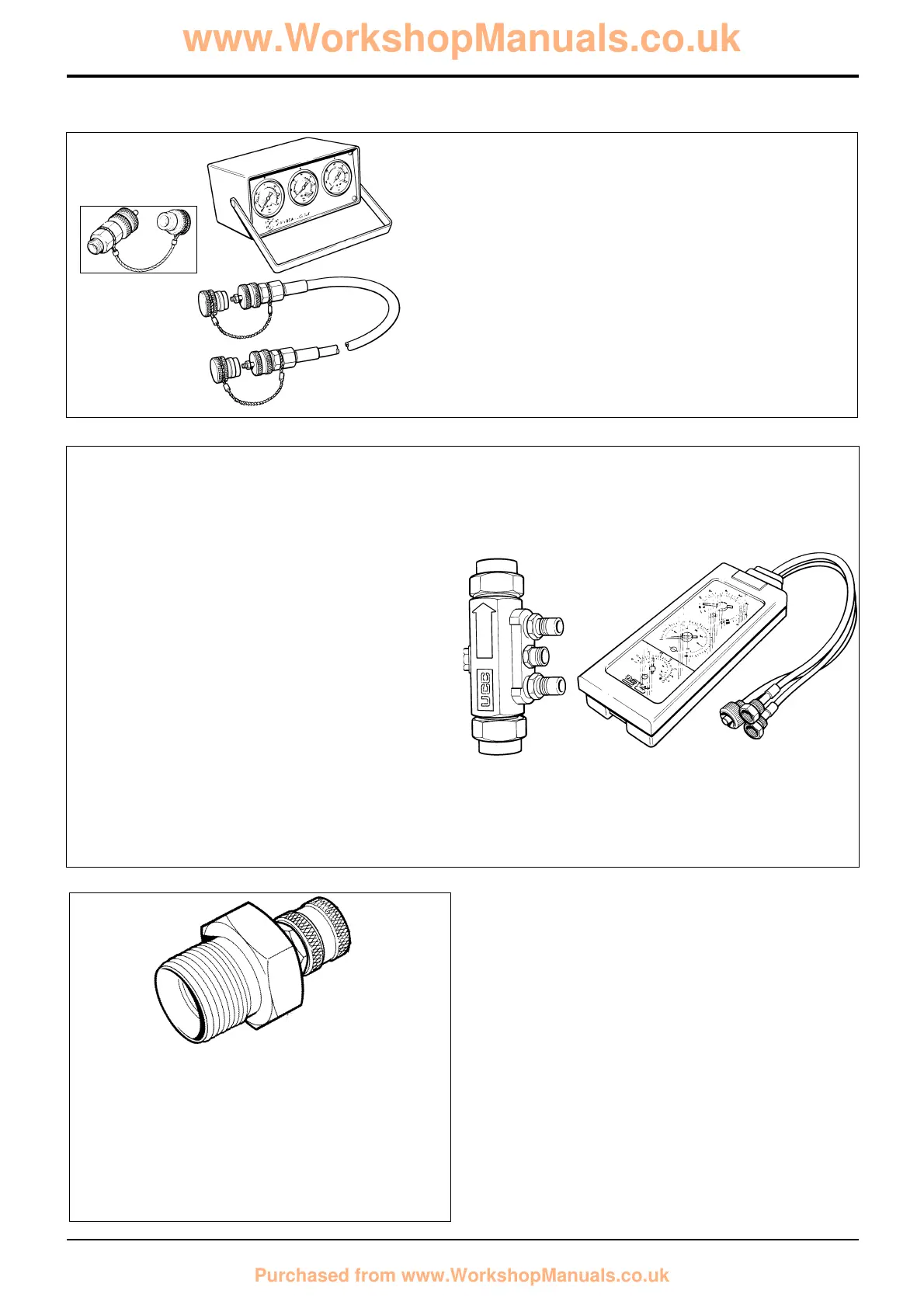

Hydraulic Circuit Pressure Test Kit (also used for main hydraulic
system tests)
892/00253 Pressure Test Kit
:892/00201 Replacement Gauge 0-20 bar (0-300 lbf/in
2
)
:892/00202 Replacement Gauge 0-40 bar (0-600 lbf/in
2
)
:892/00203 Replacement Gauge 0-400 bar (0-6000 lbf/in
2
)
:892/00254 Replacement Hose
993/69800 Seal Kit for 892/00254 (can also be used with
probe 892/00706)
892/00706 Test Probe
S267300
S188121
Flow Test Equipment (also used for main hydraulic system
tests)
892/00268 Flow Monitoring Unit
892/00269 Sensor Head 0 - 100 l/min (0 - 22 UK gal/min)
892/00293 Connector Pipe
892/00270 Load Valve
1406/0021 Bonded Washer
1604/0006 Adapter 3/4 inMx3/4inMBSP
1612/0006 Adapter 3/4 inFx3/4inMBSP
892/00271 Adapter 3/4 inFx5/8inMBSP
892/00272 Adapter 5/8 inFx3/4inMBSP
816/20008 Adapter 3/4 inFx1/2inMBSP
892/00275 Adapter 1/2 inFx3/4inMBSP
892/00276 Adapter 3/4 inFx3/8inMBSP
892/00277 Adapter 3/8 inFx3/4inMBSP
892/00273 Sensor Head 0 - 380 l/min
892/00294 Connector Pipe
1606/0015 Adapter 1.1/4 in M BSPx1inMBSP
892/00078 Connector 1 inFx1inFBSP
1604/0008 Adapter 1 inMx1inMBSP
1606/0012 Adapter 1 inMx3/4inMBSP
816/20013 Adapter 3/4 inFx1inMBSP
S188151
Test Point
1 892/00964 Test point (1/8 BSP) Powershift
2 892/00965 Test point (3/8 BSP) Powershift
3 892/00966 Test point (1/4 BSP) Synchro Shuttle
These test points can be left in position after testing.
