94 - 7
Section F Transmission
9803/3280
Section F
94 - 7
Issue 1
Rear Axle - SD80, PD70
S256150

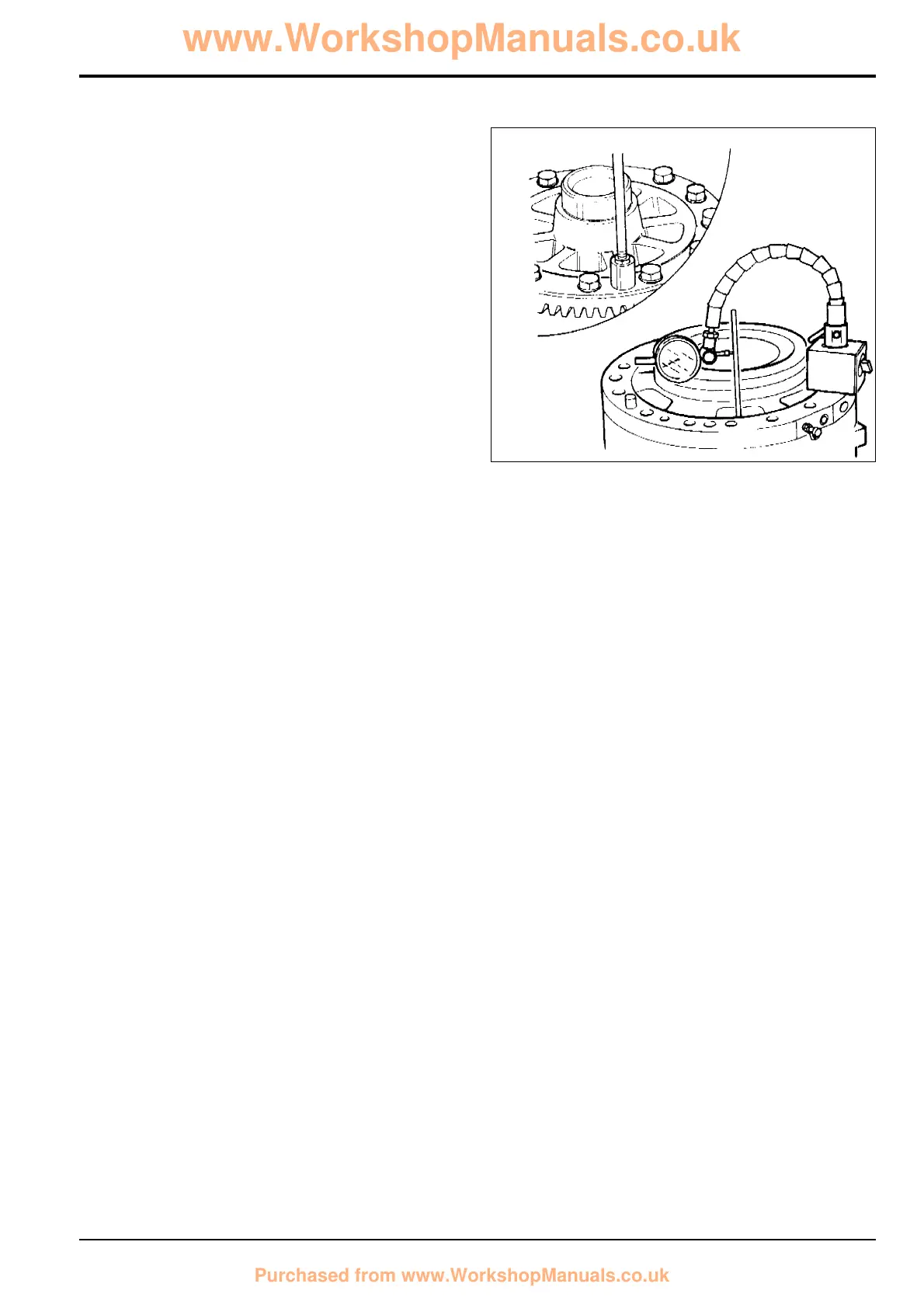

26 Measure the crownwheel backlash, which should be
0.17-0.28 mm (0.006-0.010 in). Adjust the differential
side nuts by equal amounts when altering backlash.
When backlash and preload are both correct, fit the
sidenut locking pins, see step 25.
To Next Page
