jcb 8020 CTS - Service Points; General

Maintenance
Service Points
123 9821/6100-4 123
Service Points
General
The following illustrations identify the service points for the operator to perform the daily and weekly
maintenance tasks.

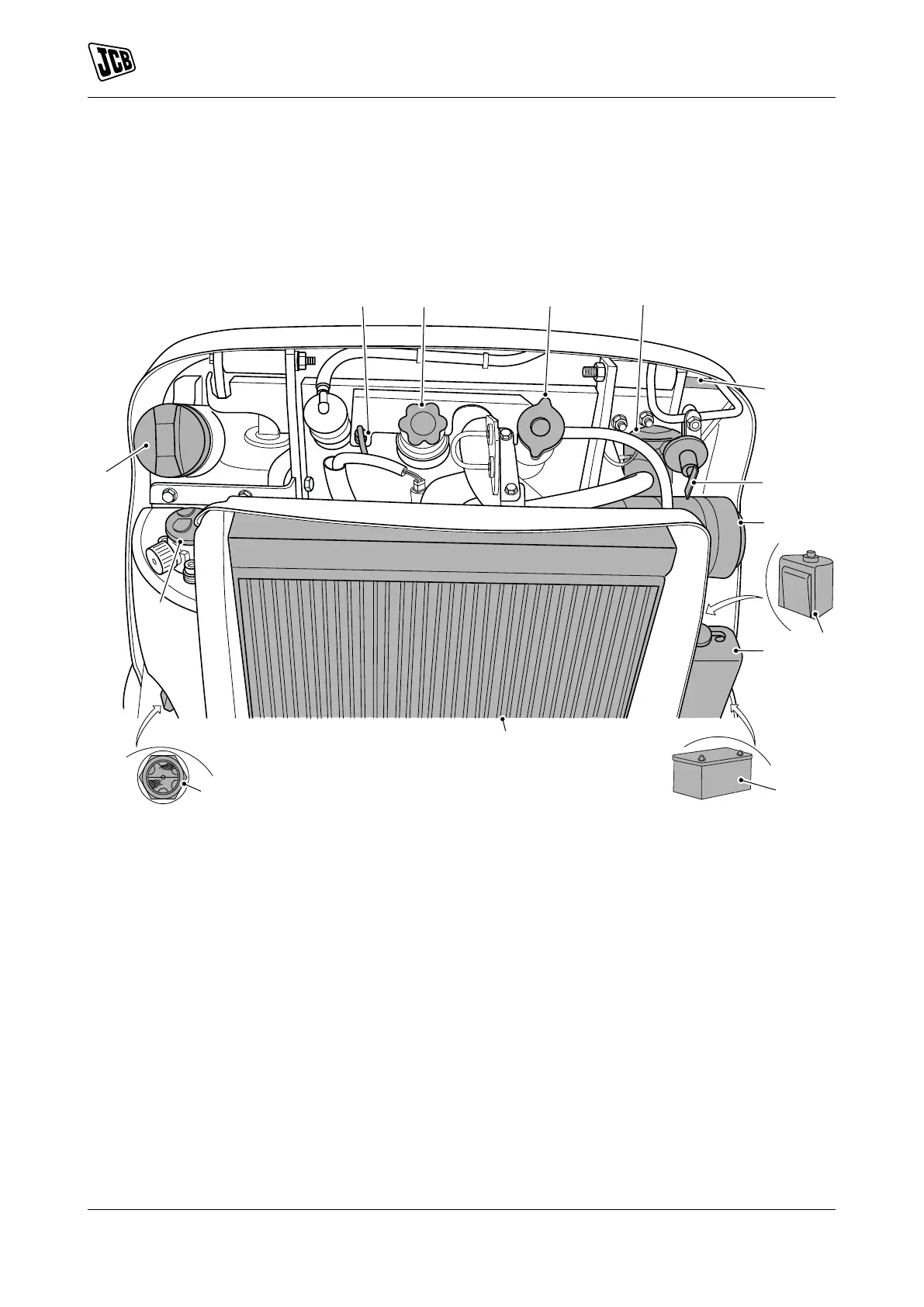

Engine Compartment
Figure 97.
J
B
C
E
F
D
G
H
L
P
N
A
M
K
A Engine oil dipstick B Engine oil filler cap
C Radiator filler cap D Fuel filter
E Fuses F Battery isolator switch
G Air intake H Radiator coolant expansion bottle
J Windscreen washer bottle K Battery
L Radiator M Hydraulic fluid level indicator
N Hydraulic fluid filler cap P Fuel tank filler cap
