Technical Data
Performance Dimensions
162 9821/6100-4 162
Performance Dimensions
Excavator Arm Dimensions and Performance
For: 8014 CTS ........................................................................................................................ Page 162
For: 8016 CTS ........................................................................................................................ Page 164
For: 8018 CTS ........................................................................................................................ Page 166
For: 8020 CTS ........................................................................................................................ Page 168
(For: 8014 CTS)
Digging

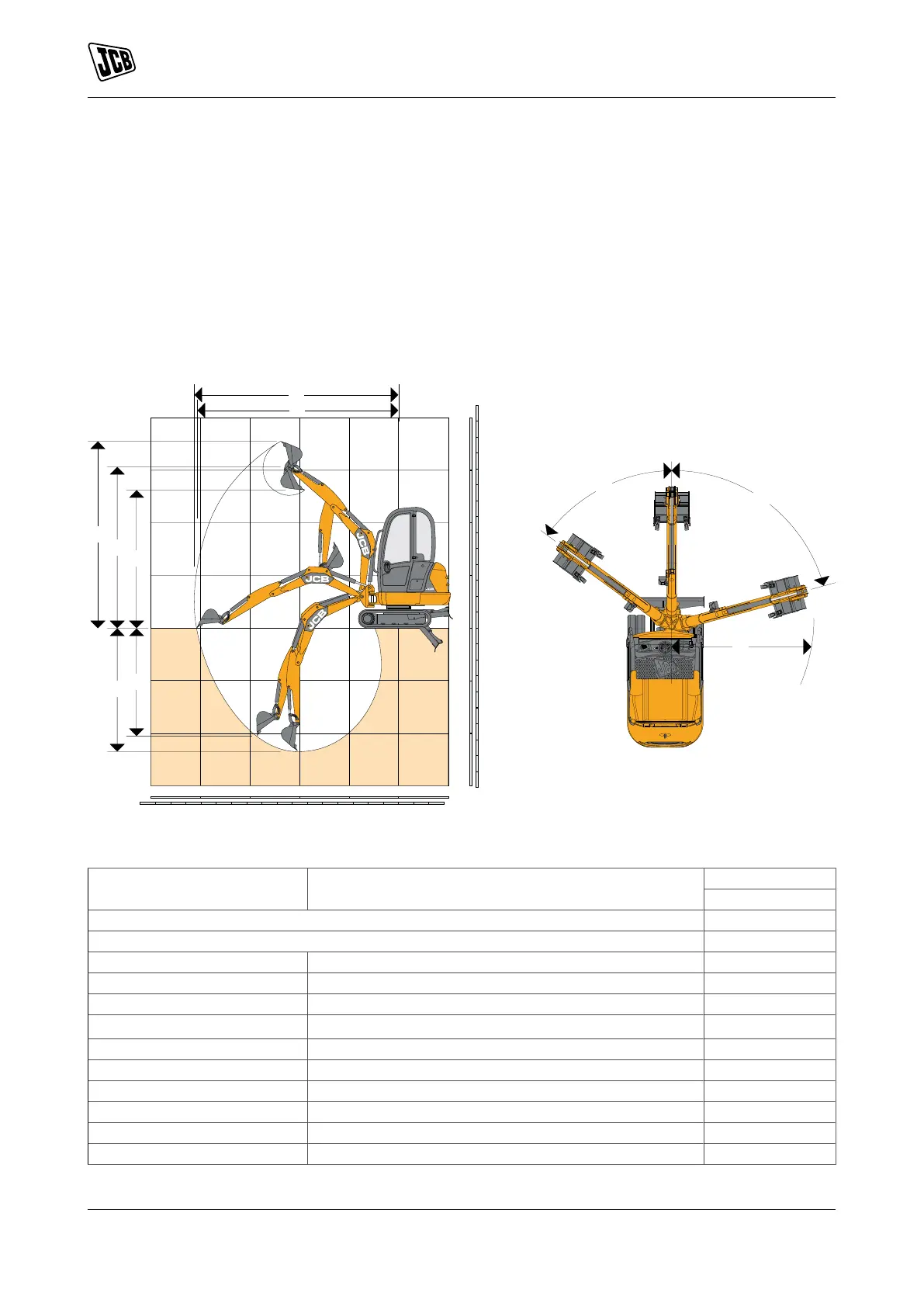

Figure 118.
0
2
4
6
8
10
12
14
16
0
0
2
4
6
8
10
12
14
16
-2
-4
-6
-8
-10
1
2
3
4
-1
-2
-3
1
2
3
Feet
Metres
4
-1
-2
5
F
C
E
G
D
B
A
H
I
J
Table 18. Machine Dimensions
8014 CTSDimension Description
Length mm
Boom length 1,715
Dipper length 1,161
A Max. digging reach 4,021
B Max. dumping reach on ground 3,973
C Max. digging depth - dozer up 2,271
C
Max. digging depth - dozer down
(1)
2,271
D Max. digging height 3,453
E Max. dump height 2,531
F Max. height to the dipper nose - pivot pin 2,953
G Max. vertical wall cut depth 1,961
H Minimum front swing radius - no offset 1,570
H Minimum front swing radius - fully offset 1,356
(1) Max. dig depth when dozer blade fully lowered.
