jcb 8020 CTS - Electrical System; General; Fuses

Technical Data
Electrical System
182 9821/6100-4 182
Electrical System
General
Table 32.
Item Specification
System voltage 12
Fuses
Table 33. All Machines
RatingFuse Circuit
A
1 Engine stop 60
2 Servo control, instruments, two-speed range selector 60
3 Windscreen wiper 5
4 Blower 5
5 Boom light 15
6 Work lights 15
7 Horn, interior light, auxiliary power socket 7.5
8 Beacon 15
9 Main fuse 15

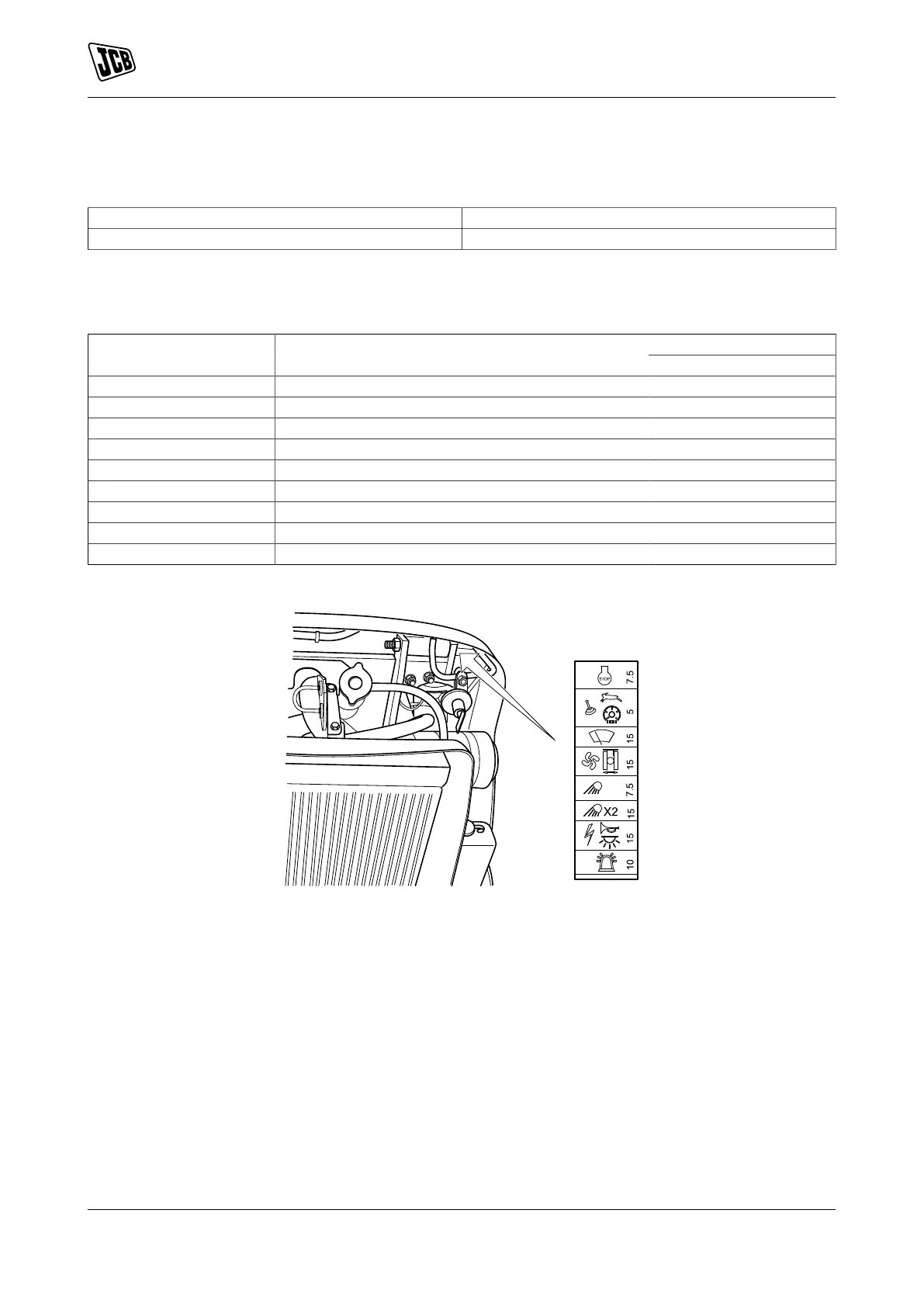

Figure 129.
8
7
6
5
4
3
2
1
