Technical Data
Static Dimensions
155 9821/6100-4 155
Technical Data
Static Dimensions
Dimensions
For: 8014 CTS ........................................................................................................................ Page 155
For: 8016 CTS ........................................................................................................................ Page 156
For: 8018 CTS ........................................................................................................................ Page 157
For: 8020 CTS ........................................................................................................................ Page 158
(For: 8014 CTS)

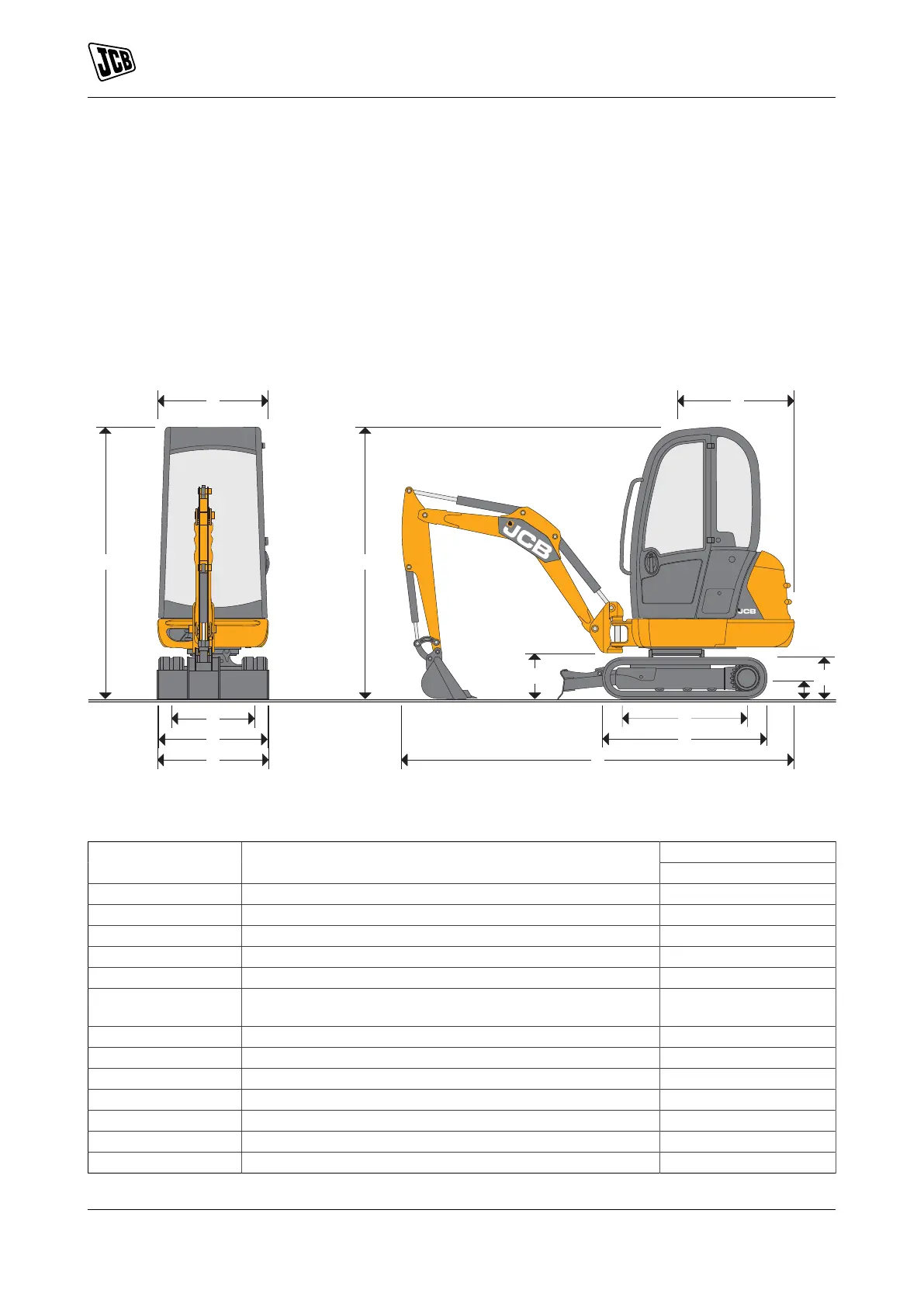

Figure 113.
Table 10. Machine Dimensions
8014 CTSDimension Description
mm
A Sprocket idler centres 1,027
B Undercarriage (overall length) 1,382
C Kingpost clearance 373
D Tailswing radius 1,059
E Overall width 996
F Height over the cab (without fogs) 2,318
(with fogs) 2,340
G Ground clearance 146
H Track gauge 742
I Width over the tracks - retracted 972
F Width over the tracks - extended N/A
J Transport length - standard dipper 3,409
J Transport length - long dipper N/A
J Transport length - gravemaster dipper N/A
