Technical Data
Static Dimensions
157 9821/6100-4 157
(For: 8018 CTS)

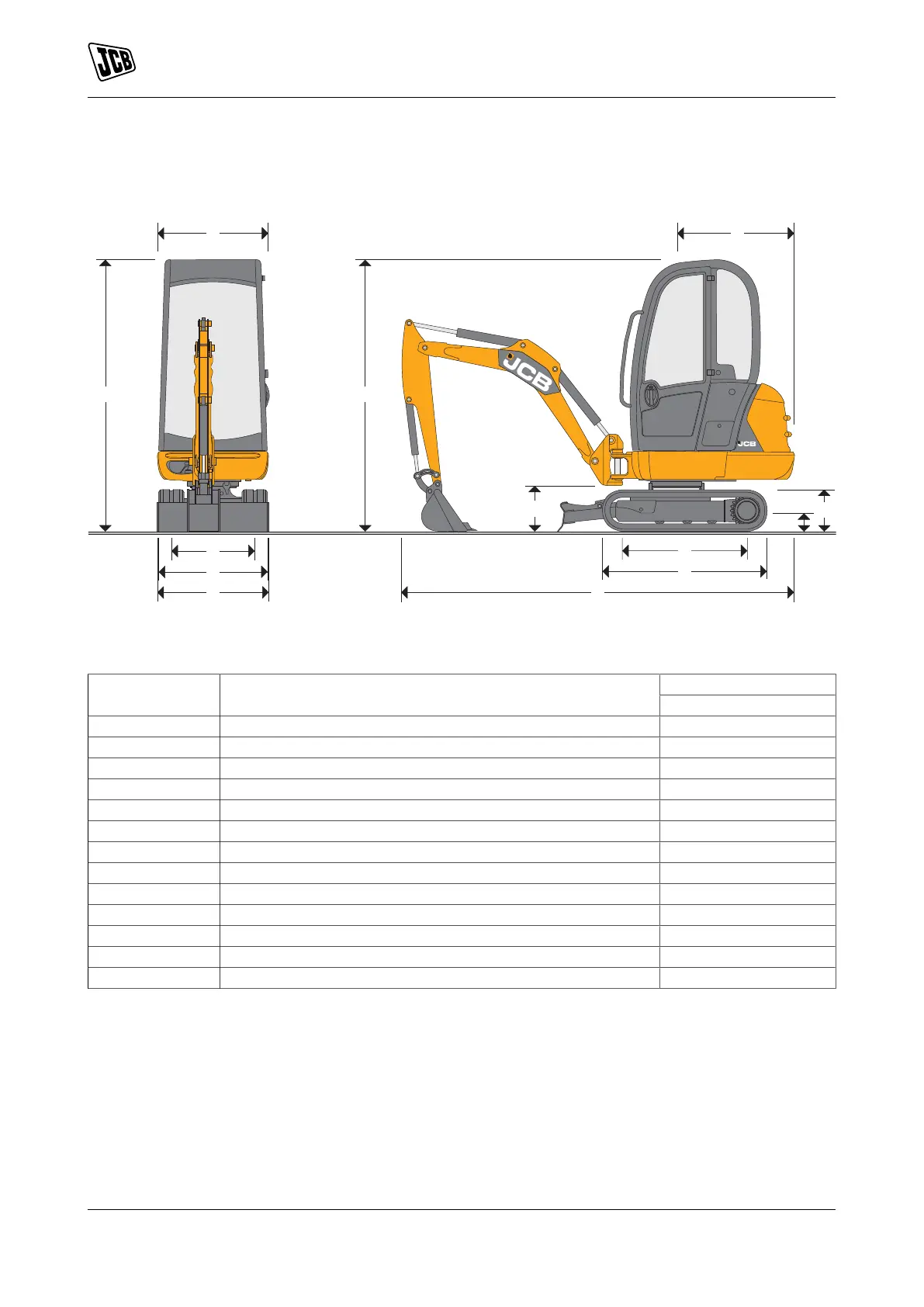

Figure 115.
A
B
E
K
D
H
I
J
G
L
C
F
K
Table 12. Machine Dimensions
8018 CTSDimension Description
mm
A Sprocket idler centres 1,127
B Undercarriage (overall length) 1,484
C Kingpost clearance 394
D Tailswing radius 1,080
E Overall width 996
F Height over the cab 2,318
G Ground clearance 158
H Track gauge 750 to 1,110
I Width over the tracks - retracted 980
F Width over the tracks - extended 1,340
J Transport length - standard dipper 3,523
J Transport length - long dipper 3,467
J Transport length - gravemaster dipper 3,265
