Technical Data
Performance Dimensions
164 9821/6100-4 164
(For: 8016 CTS)

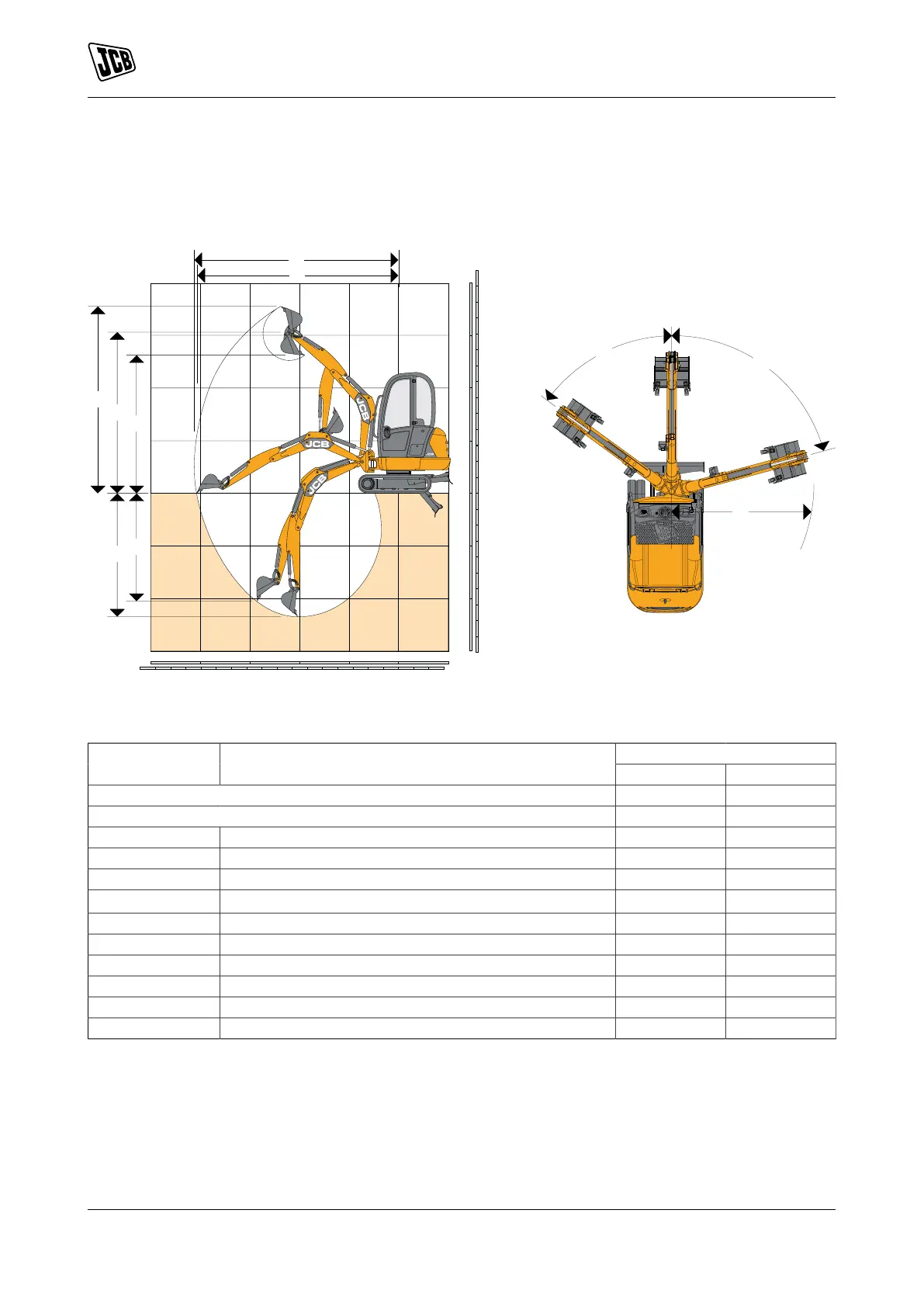

Digging
Figure 120.
0
2
4
6
8
10
12
14
16
0
0
2
4
6
8
10
12
14
16
-2
-4
-6
-8
-10
1
2
3
4
-1
-2
-3
1
2
3
Feet
Metres
4
-1
-2
5
F
C
E
G
D
B
A
H
I
J
Table 19. Machine Dimensions
8016Dimension Description
mm mm
Boom length 1,715 1,715
Dipper length 1,161 1,261
A Max. digging reach 4,021 X (-)
B Max. dumping reach on ground 3,973 4,060
C Max. digging depth - dozer up 2,271 2,366
C
Max. digging depth - dozer down
(1)
X (-) X (-)
D Max. digging height 3,453 3,531
E Max. dump height 2,531 2,626
F Max. height to the dipper nose - pivot pin 2,953 3,017
G Max. vertical wall cut depth 1,961 2,056
H Minimum front swing radius - no offset 1,570 1,570
H Minimum front swing radius - fully offset 1,356 1,356
(1) Max. dig depth when dozer blade fully lowered.
