Operation
Transporting the Machine
63 9831/7750-1 63

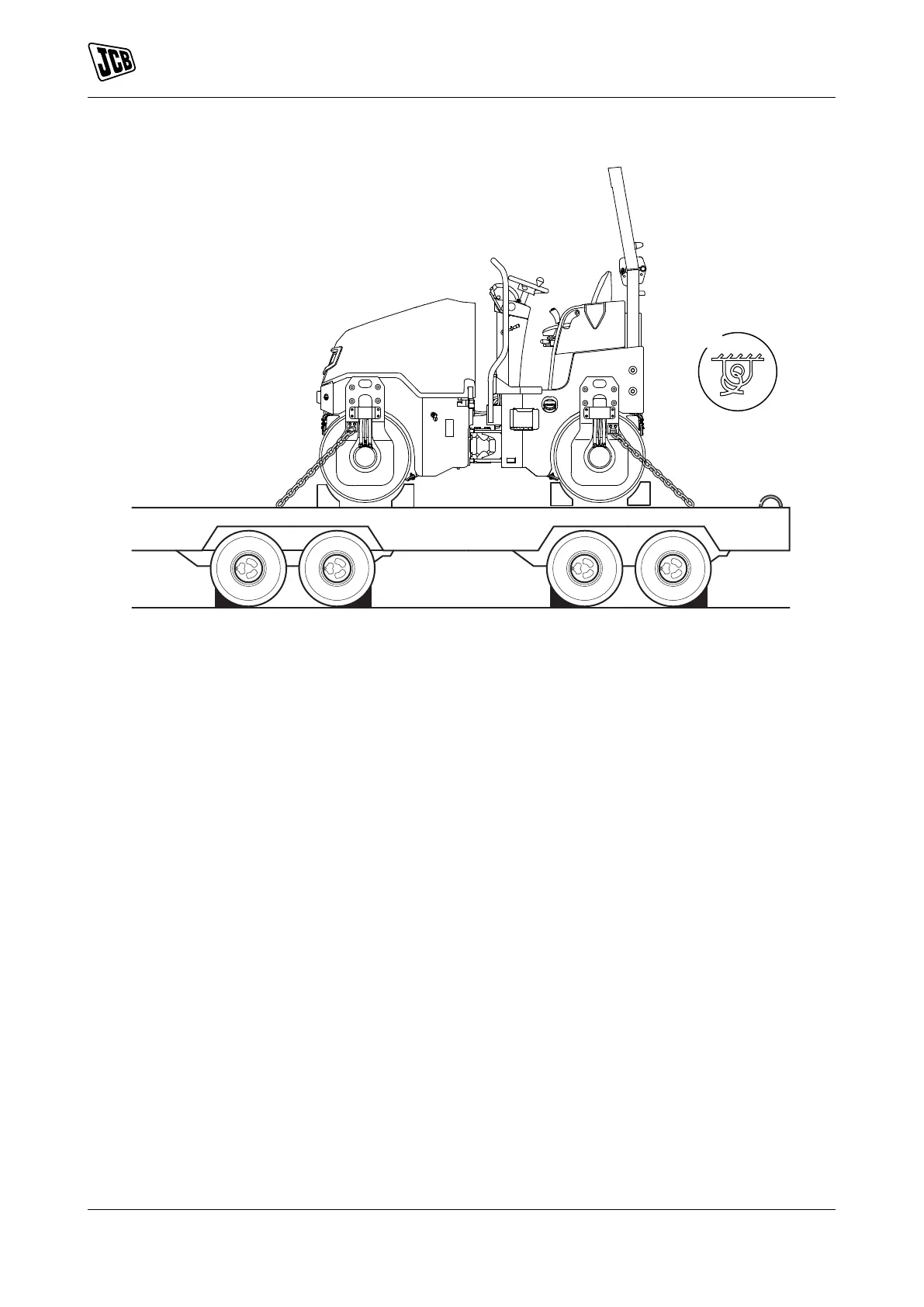

Figure 41.
A
A Tie down decal
2. Install the articulation lock.
Refer to: Articulation Lock (Page 42).
3. Using suitable lifting equipment, lift the machine onto the trailer.
Refer to: General (Page 60).
4. Put blocks at the front and rear of the machine. Using the tie down points anchor the machine to the trailer
with chains. Refer to Figure 41. Refer to Figure 42.
