Operation
Transporting the Machine
64 9831/7750-1 64

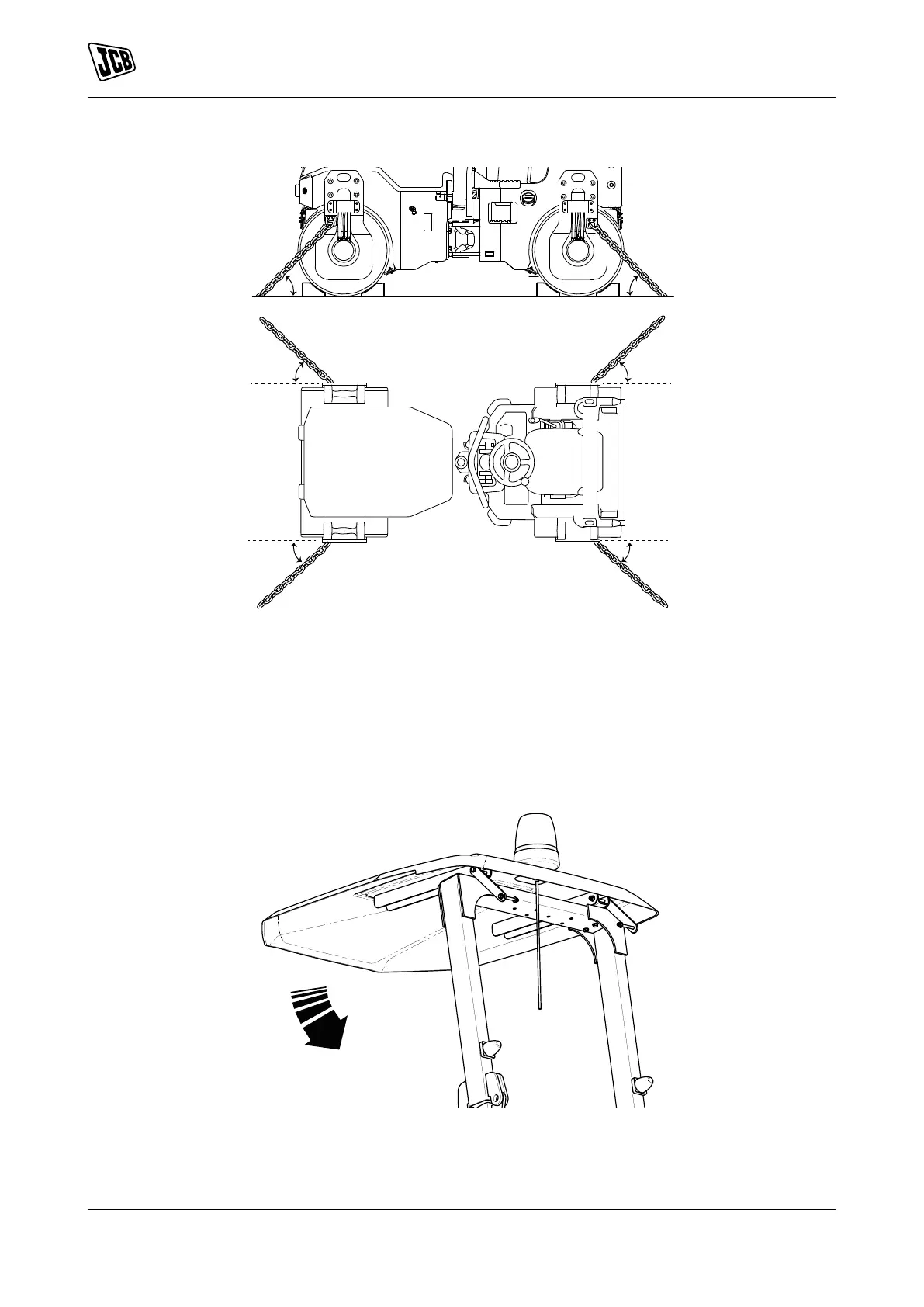

Figure 42.
X 35 ° Y 45 °
5. Measure the maximum height of the machine from the ground. Make sure the truck driver knows the
clearance height before he drives away.
6. If necessary, fold down the ROPS (Roll-Over Protective Structure) frame as follow:
6.1. Two people are required to fold the ROPS frame.
6.2. Fold down the sunroof. Refer to Figure 43.
Figure 43.
6.3. Remove the cotter pin. Refer to Figure 44.
6.4. Remove the ROPS lock pin using tommy bar. Refer to Figure 44.
