23

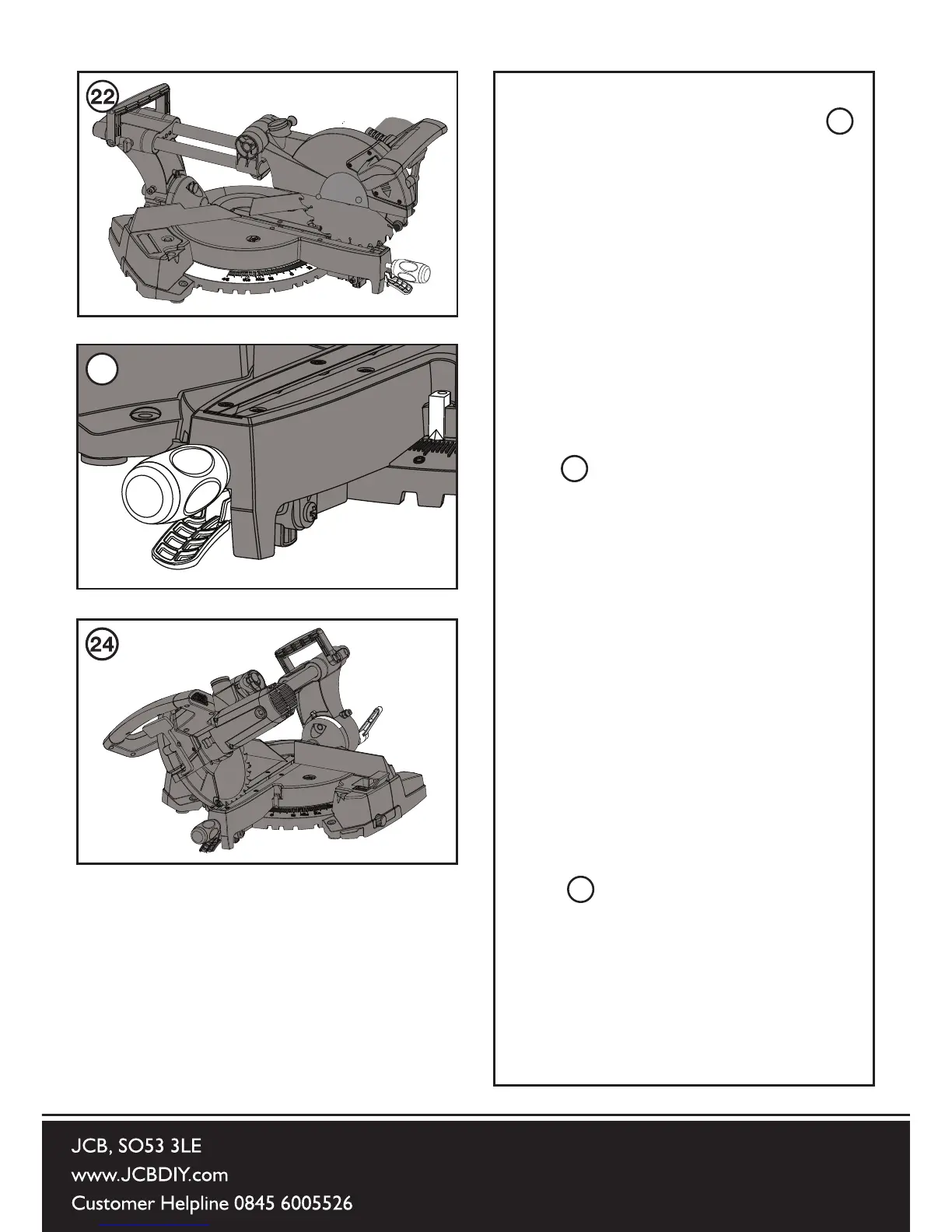

BASIC MITRE CUTTING (See )
The rotary table of this machine can
be turned through 45
0
to the left or
right from the normal cross-cut (0
0
)
position.
Positive stops are provided at 45
0
,
31.6
0
, 22.5
0
, 15
0
, 10
0
, 5
0
and 0
0
to
both the right hand and left hand
sides.
Mitre Cutting is possible with or
without the Sliding Carriage system
being deployed.
1) Loosen the Mitre Lock Handle
(See ) by turning it anti-clockwise.
2) Pull up the Positive Stop Locking
Lever.
3)Turn the rotary table to the desired
angle. A mitre angle protractor scale
is incorporated into the machines
base to aid setting.
4) Tighten the Mitre Lock Handle
when the angle is achieved.
NOTE: It is good practice to tighten
the Mitre Lock Handle even if a
Positive Stop has been selected and
the Positive Stop Locking Lever is
engaged.
BASIC BEVEL CUTTING
(See )
The Cutting Head can be set at any
angle up to a 45
0
to the Left Hand
side only.
The Bevel Angle Lock Handle is
found at the rear of the machine.
Positive stops are located at 0
0
(blade
vertical), 33.9
0
and 45
0
.
22
23
24
