51 - 8
Assembly (continued)

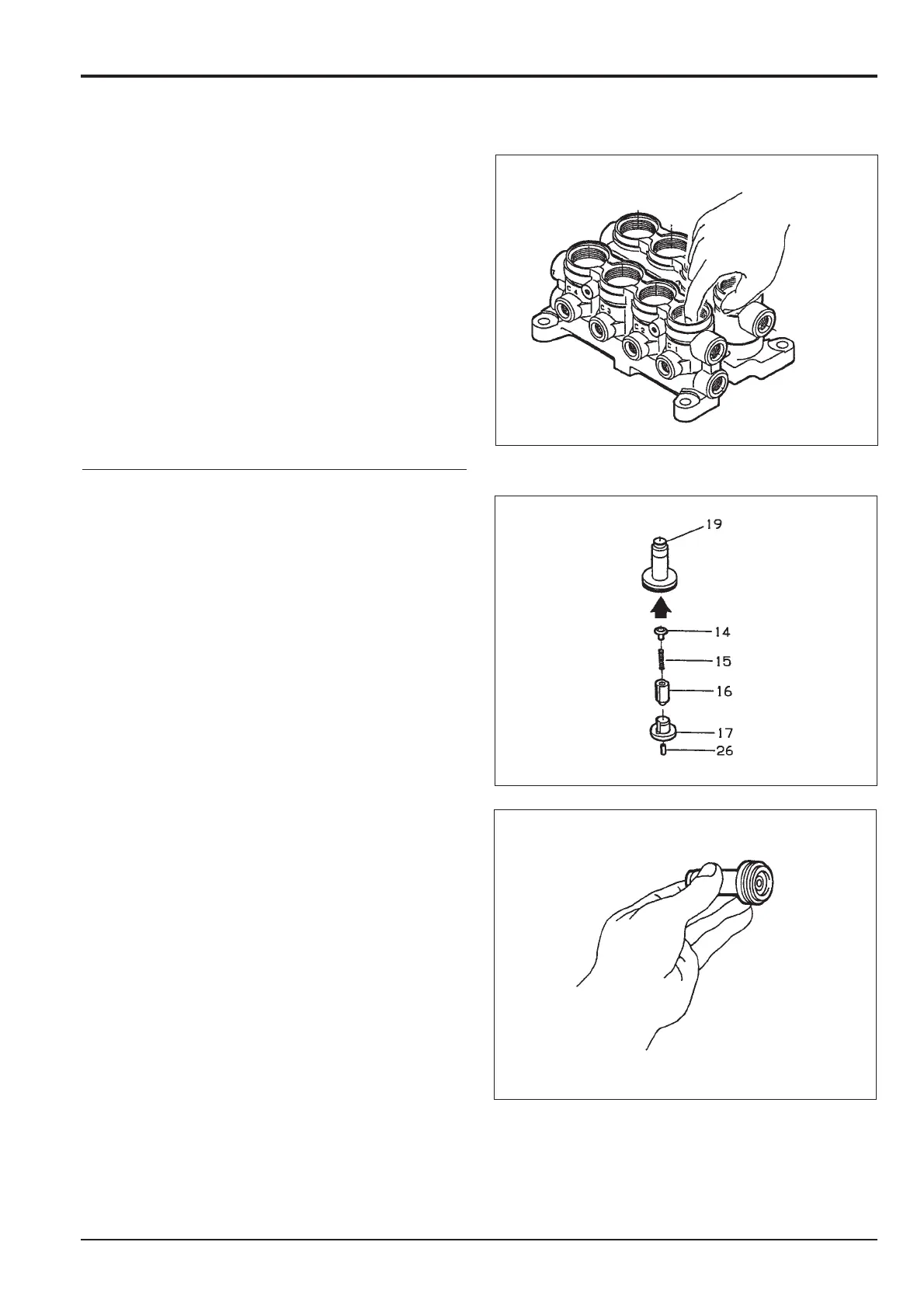

7. After inserting the spool, push the top of the spool with
your finger and slide it. The spool should slide smoothly
and if there is any resistance, do not use it.
8. Fit the 'O'-ring to the inner housing (19) and install pipe
(13), spring seat (14), spring (15), plunger (16), stopper
(17) and rod (26) into the housing. (Rod for S8 total
length is 9.0 mm).
Section E
Hydraulics
9803/6400
Section E
51 - 8
Issue 1
Solenoid Valve (8-spool)
To Next Page
