51 - 9
Assembly
(continued)

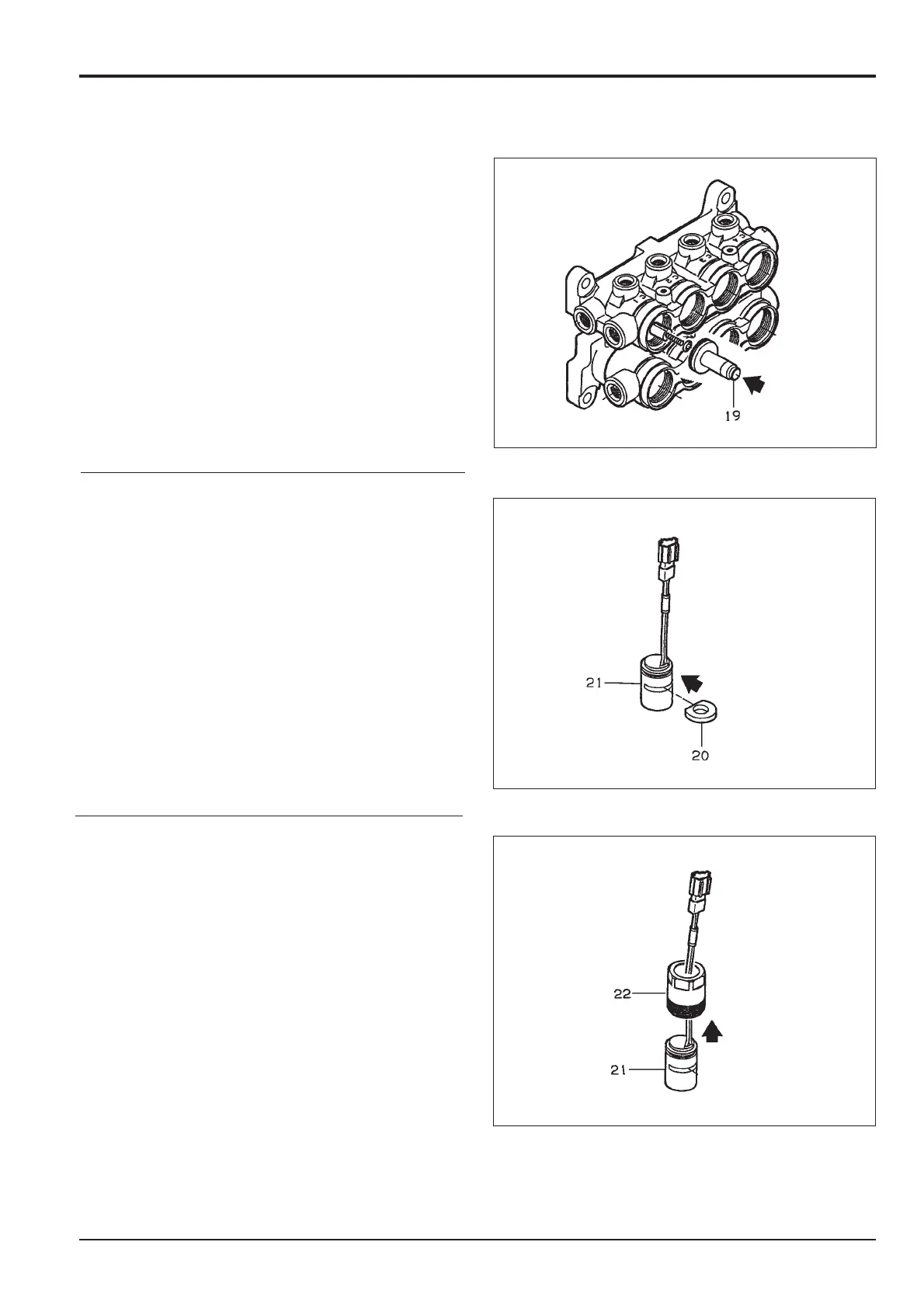

9.
Place the housing horizontally and install the inner
housing (19). Take care that parts which are assembled
to the inner housing do not drop off. (Apply grease to the
'O'-ring).
10.
Install the spacer (20) to the coil assembly (21).
11.
Install the housing (22) to the coil assembly.
Section E
Hydraulics
9803/6400
Section E
51 - 9
Issue 1
Solenoid Valve (8-spool)
323
