51 - 10
Assembly (continued)

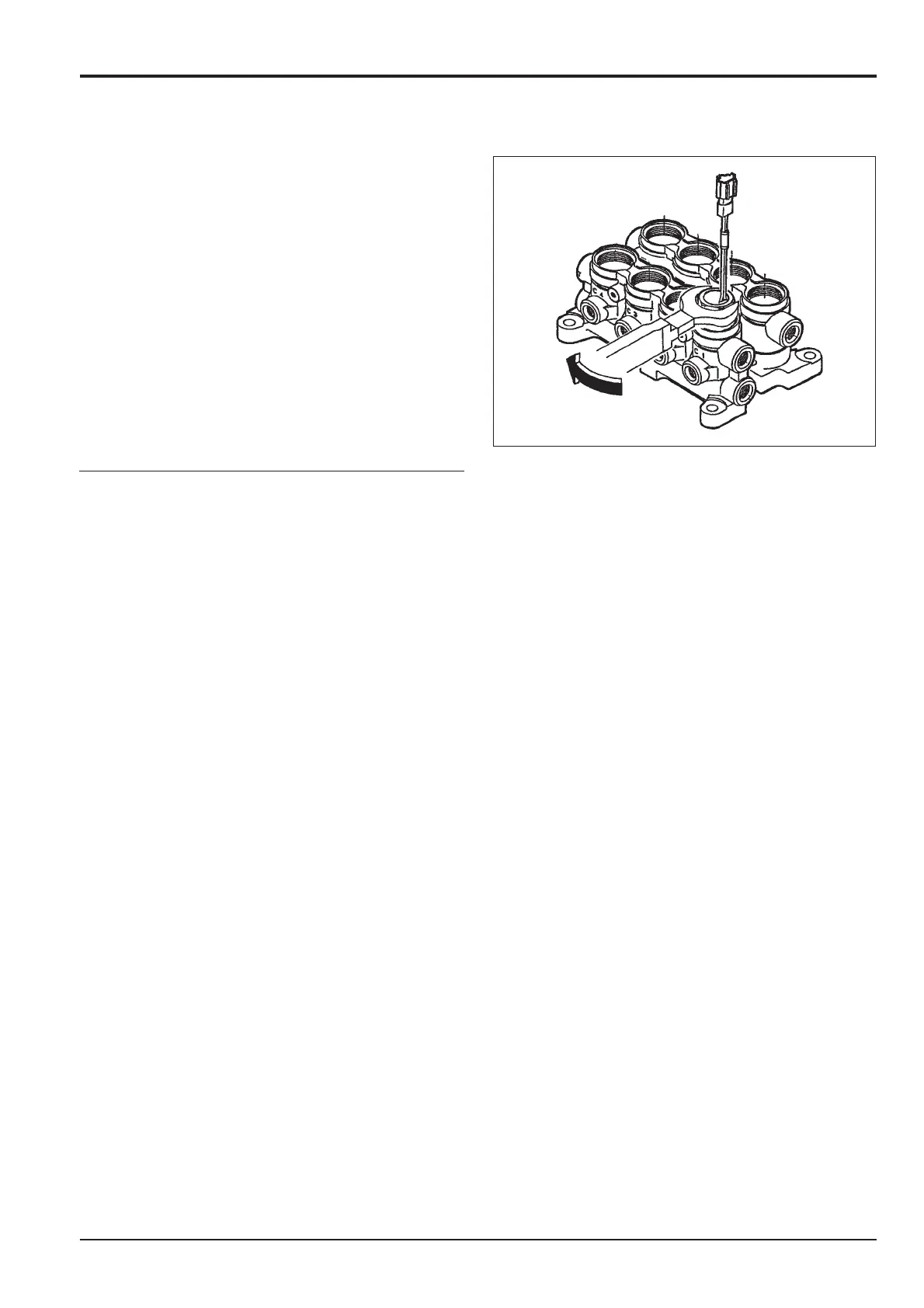

12. Apply anaerobic adhesive Loctite 242 to the screw
thread and using a torque wrench, tighten it to 29.4 ± 9.3
Nm (21.1 ± 7.23 lb/ft).
Solenoids S1, S3~S7
The assembly procedure for the solenoids at housing
positions C1 and C3 to C7 is identical to that described in
steps 11 to 12, but note that O-ring 7, body 10A, spool 10B
(10 mm diameter) and rod 18 (8.6 mm long) are of different
dimensions to items 23, 24A,24B and 26 respectively.
Section E
Hydraulics
9803/6400
Section E
51 - 10
Issue 2*
Solenoid Valve (8-spool)
*
