94 - 8

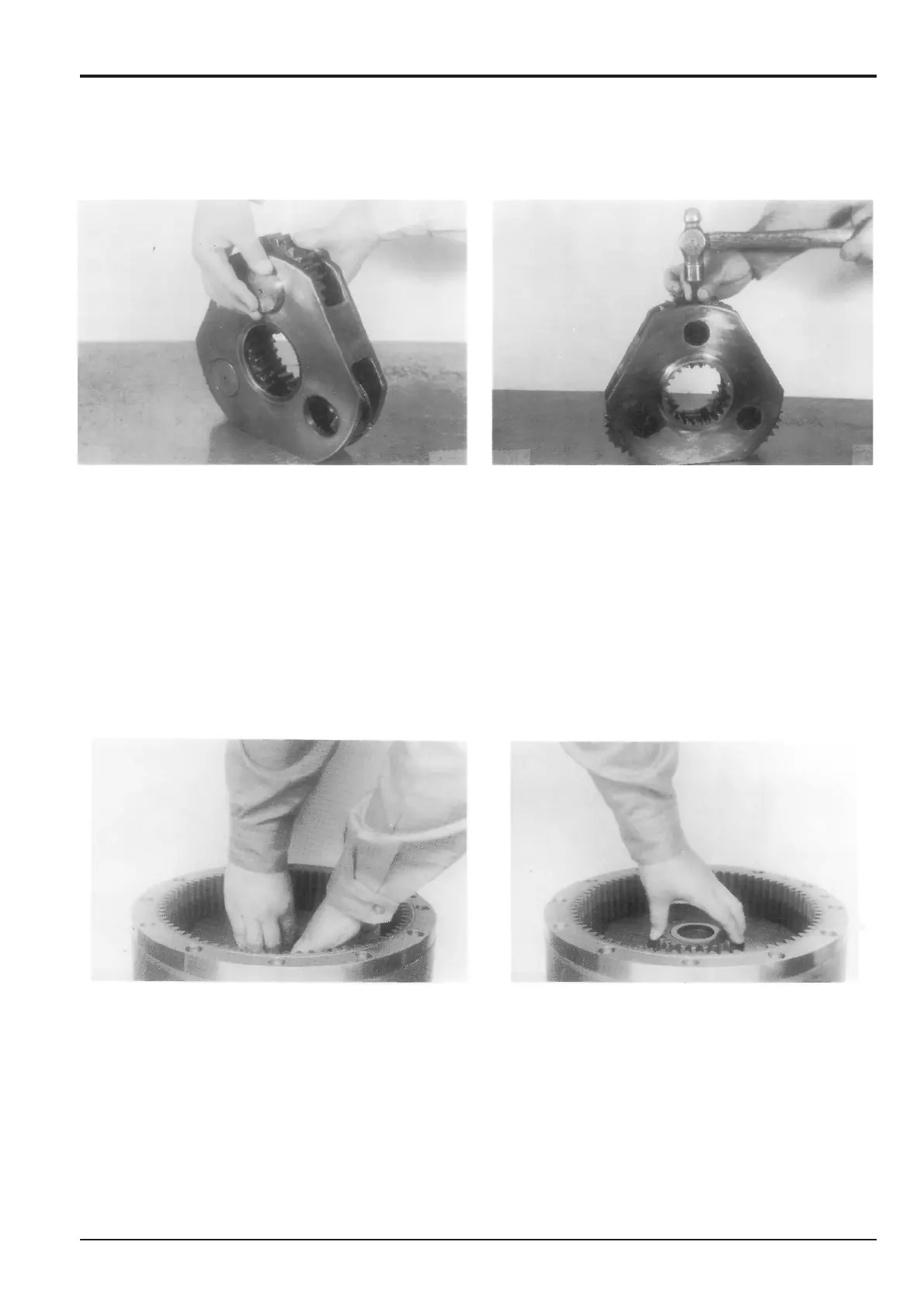

11 Holder assembly 65 mounting
a Insert planetary gear 69 and the thrust plate into
holder 65 and insert shaft assembly 67.
Note: Apply gear oil to the spur gear internal surface and
shaft assembly outer surface.
b Drive in the spring pin.
Note: Drive in the pins with the splits facing towards
planetary gear 69.
! WARNING
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
INT-3-1-3
12 Holder assembly 76 and spur gear mounting
Section E
Hydraulics
9803/6400
Section E
94 - 8
Issue 2*
Slew Motor
*
Reduction Gear
Assembly (cont’d)
a Carefully lower holder assembly 76 so that it
meshes correctly with the internal teeth of ring gear
64.
Turn the holder assembly slightly to engage the
splines of pinion shaft 53.
b Insert the sun gear 77 so that the teeth mesh with
planetary gears 72.
To Next Page
