7 - 2
Dismantling (continued)

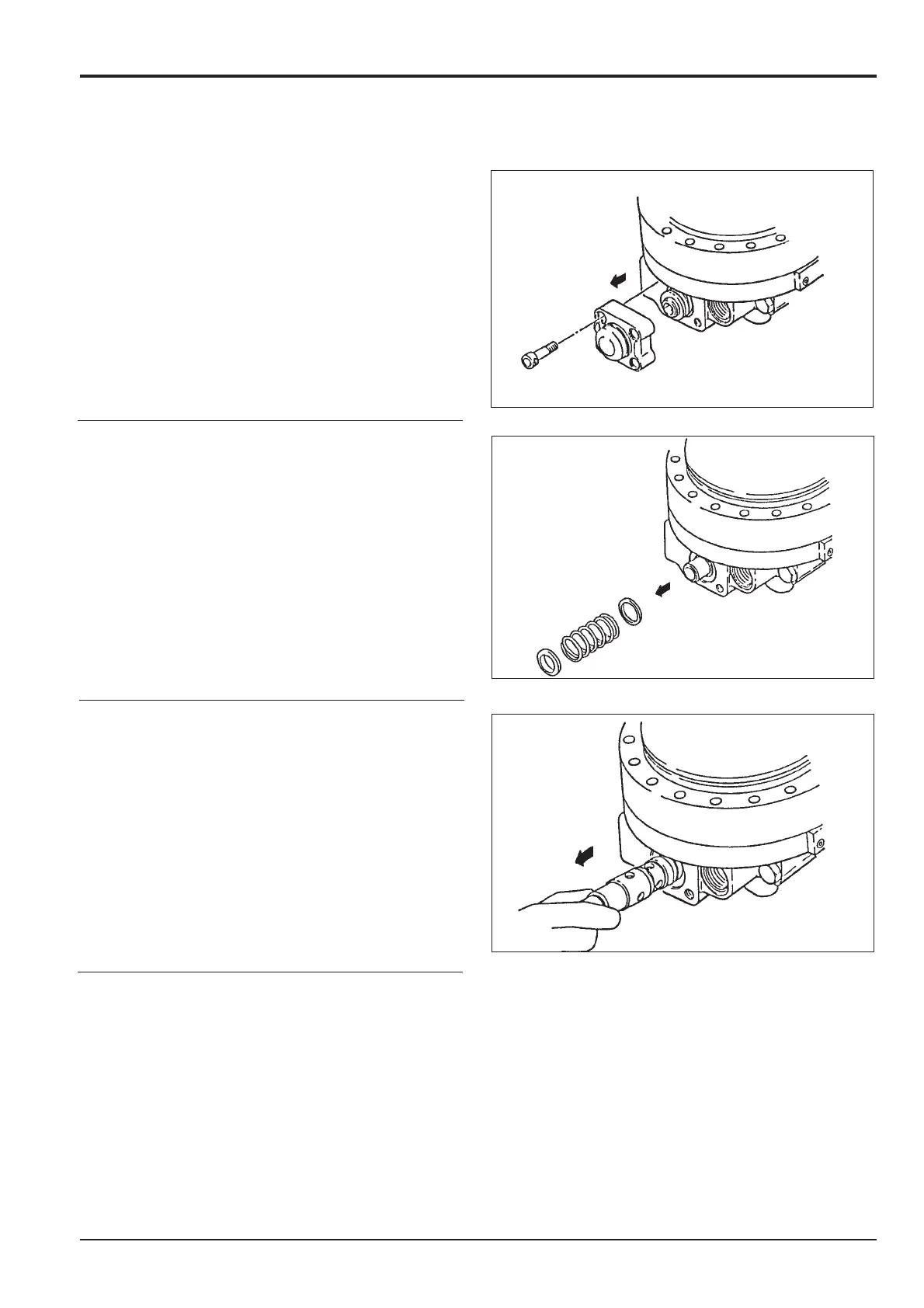

3. Counterbalance valve disassemble
Loosen (2-6-5) socket head bolt and remove the
(2-6) cap.
Note: Since the cap is loaded by a spring, loosen the socket
head bolt halfway and while pressing the cap by hand,
remove the socket head bolt.
4. Remove (2-5) spring seat, (2-4) spring and (2-3)
spring seat.
5. Pull out the (2-2) plunger assembly.
While turning the plunger, pull it out slowly, being
careful not to damage the outer circumference.
6. 2-speed control valve disassembly
a. Loosen (2-14) (2-17) plugs and remove (2-9) valve
assembly, (2-13) spring, (2-16) spring guide.
While turning the (2-9) valve assembly, pull it out
slowly.
Be careful not to damage the outer circumference.
Section F
Transmission
9803/6400
Section F
7 - 2
Issue 1
Motor
To Next Page
