JCM DBV-500 - DBV-500 Component Locations; DBV-500 Component Names and Identification

Part No. 960-000187R_Rev. A © 2016 JCM American Corporation
4
DBV-500 Banknote Validator JCM® Training Overview November, 2016
COMPONENT LOCATIONS
C OMPONENT N AMES

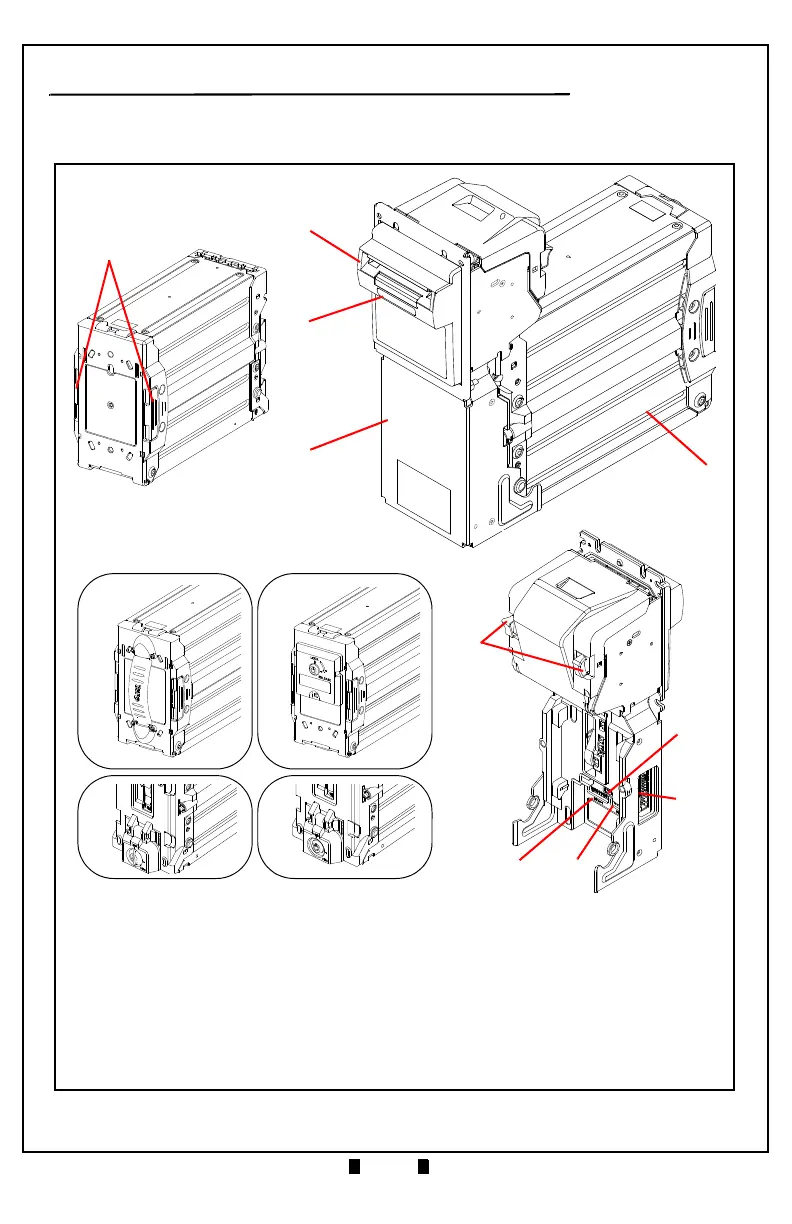

Figure 2 illustrates the DBV-500 Component Names and Locations.
n
m
l
k
e
Option Items
b
c
a
d
g
f
j
h
i
Figure 2 DBV-500 Component Names
a) Bezel
b) Full-Color Indicator
c) Transport Unit
d) Cash Box
e) Cash Box Latches
f) Unit Guide Open/Close Latches
g) USB Connector (for Maintenance)
h) Power/Interface Connector
i) DIP Switch Block #1
j) DIP Switch Block #2
k) Cash Box Handle
l) Frame Lock
m) Plastic Latch
n) Metal Lock
