JCM DBV-500 - DBV-500 DIP Switch Settings

Part No. 960-000187R_Rev. A © 2016 JCM American Corporation
5
DBV-500 Banknote Validator JCM® Training Overview November, 2016
Lecture Notes
DIP SWITCH SETTINGS
Table 2 lists the default Configuration Settings for the DBV-500 DIP Switch
Block #1.

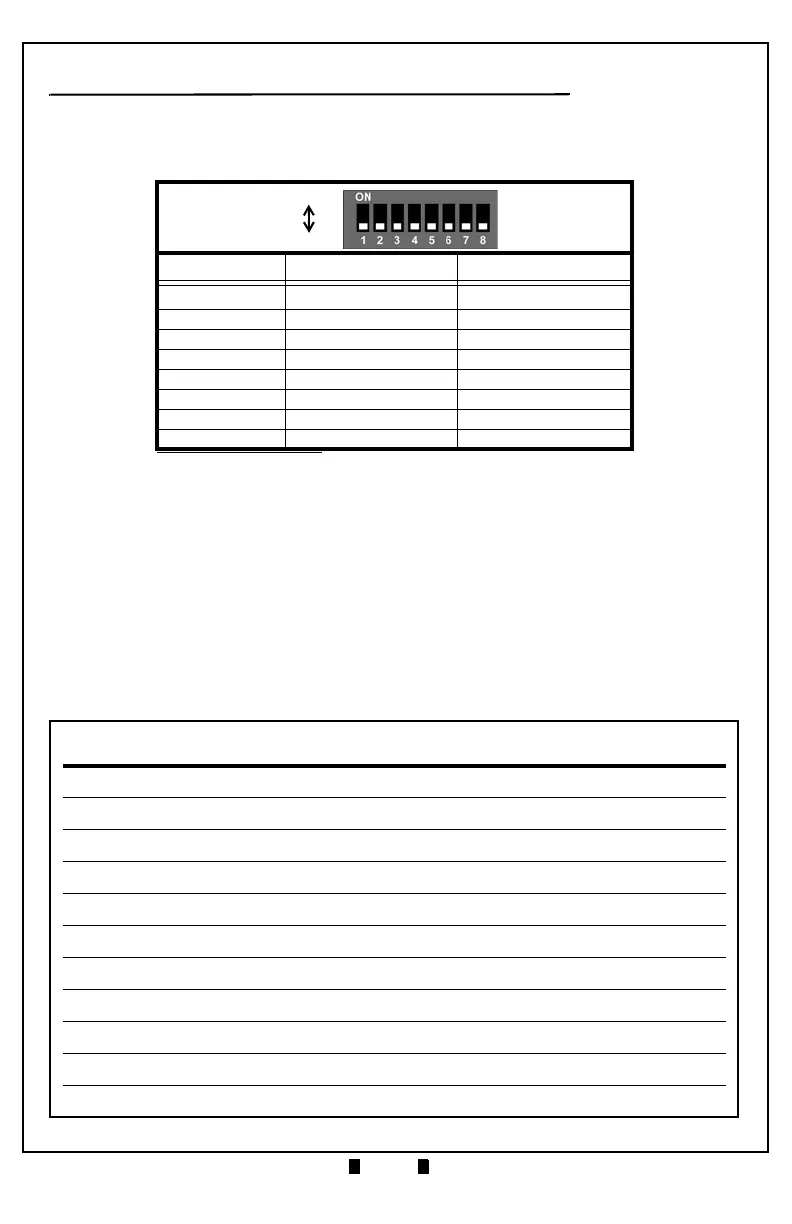

Table 2 DIP Switch Block #1 Configuration Settings*
* See the Software Information Sheet (SIS) for proper Switch Settings.
Switch No. Switch ON Switch OFF
1 VEND 1 INHIBIT VEND 1 ACCEPT
2 VEND 2 INHIBIT VEND 2 ACCEPT
3 VEND 3 INHIBIT VEND 3 ACCEPT
4 VEND 4 INHIBIT VEND 4 ACCEPT
5 VEND 5 INHIBIT VEND 5 ACCEPT
6 VEND 6 INHIBIT VEND 6 ACCEPT
7OFF OFF
8 TEST MODE OFF (OPERATING MODE)
ON
OFF
