11BOEING 787: FIBER INSPECTION AND CLEANING
Focus Control
2
3
INSPECT: PATCH CORD (Single Fiber Connectors)
INSPECT
1. Install the appropriate inspection tip and
barrel assembly (FBPP-BAP1)
to the probe microscope.
Note: Standard tips require barrel assembly.
2. Attach the patch cord to the probe
microscope to inspect.
3. Turn the focus control on the probe to focus
the ber image on the display.
4. Determine whether clean or dirty.
If clean, do not touch it and CONNECT.
If dirty, and if cleaning is required,
CLEAN.

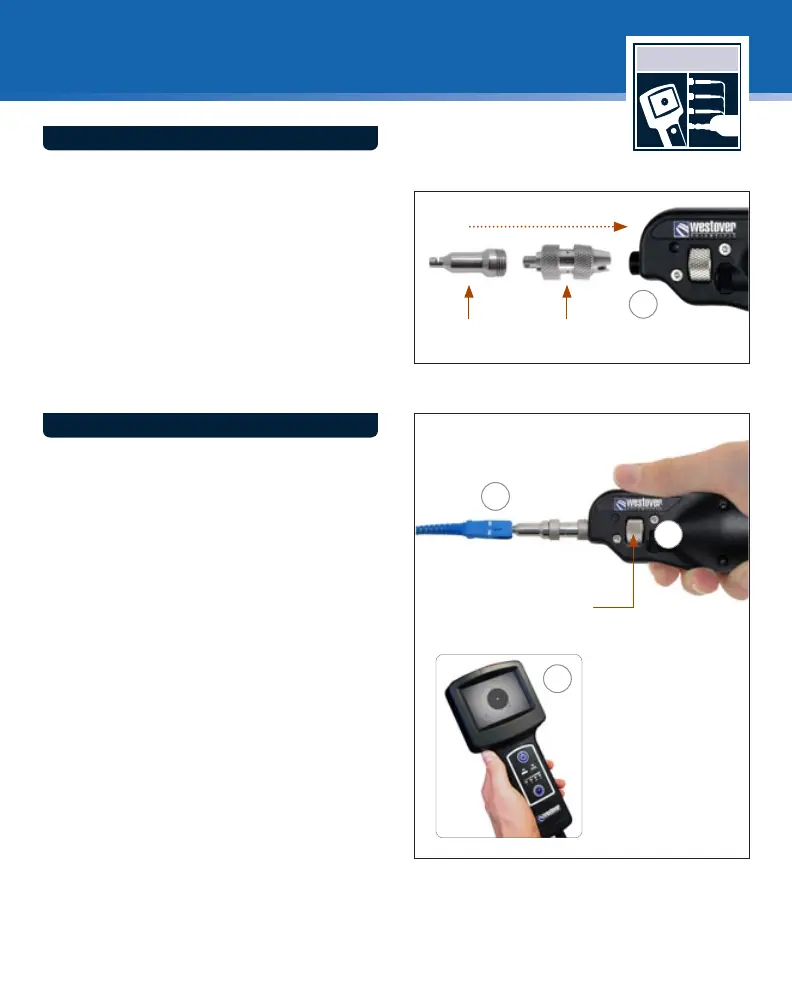

INSTALL TIP AND BARREL ASSEMBLY
INSPECT PATCH CORD
4
Inspection Tip Barrel Assembly
1
