INSPECT: ARINC RECEPTACLE (Mil-Aero)
INSPECT

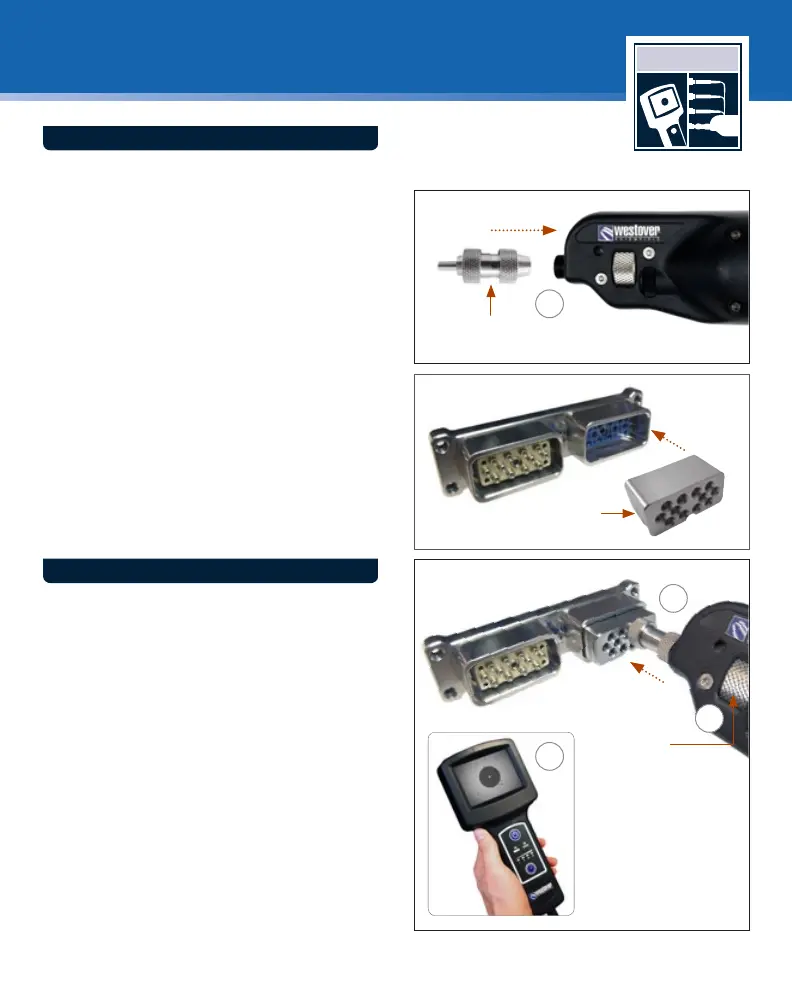

1. Install the barrel assembly
(FBPP-BAP3 or FBPP-BAP3-A6)
to the probe microscope.
Note: No additional inspection tip is necessary
when using guides.
3. Insert the probe into the alignment guide
to inspect.
4. Turn the focus control on the probe to focus
the ber image on the display.
5. Determine whether clean or dirty.
If clean, do not touch it and CONNECT.
If dirty, and if cleaning is required,
CLEAN.
Note: For Cleanliness Acceptance Criteria, see
the Aircraft Maintenance Manual (AMM) for
the Boeing 787.
INSTALL BARREL ASSEMBLY / TIP
INSPECT
2. Align the ARINC alignment guide for
receptacle (FBPT-A801-2002R) and insert
into either side of the receptacle (pins or
socket).
Focus Control
3
4
5
Alignment Guide
(FBPT-A801-2002R)
HD1 Video Display
Barrel Assembly
(FBPP-BAP3 shown)
1
