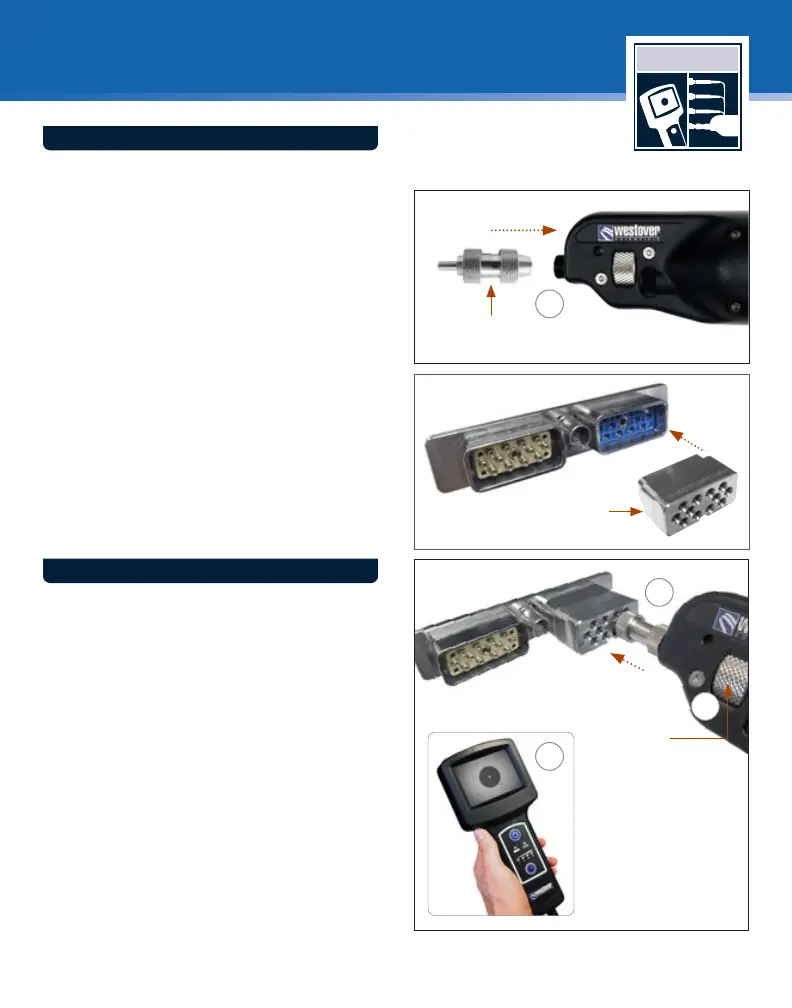

13BOEING 787: FIBER INSPECTION AND CLEANING
INSPECT: ARINC PLUG (Mil-Aero)
INSPECT
1. Install the barrel assembly
(FBPP-BAP3 or FBPP-BAP3-A6)
to the probe microscope.
Note: No additional inspection tip is necessary
when using guides.
3. Insert the probe into the alignment guide
to inspect.
4. Turn the focus control on the probe to focus
the ber image on the display.
5. Determine whether clean or dirty.
If clean, do not touch it and CONNECT.
If dirty, and if cleaning is required,
CLEAN.
Note: For Cleanliness Acceptance Criteria, see
the Aircraft Maintenance Manual (AMM) for
the Boeing 787.
Focus Control
Barrel Assembly
(FBPP-BAP3 shown)
1
3
4
INSTALL BARREL ASSEMBLY / TIP
INSPECT
2. Align the ARINC alignment guide for plug
(FBPT-A801-2001P) and insert into either
side of the receptacle (pins or socket).
5
HD1 Video Display
Alignment Guide
(FBPT-A801-2001P)
To Next Page
