PLANETARY/BRAKE PACK/OUTPUT SHAFT

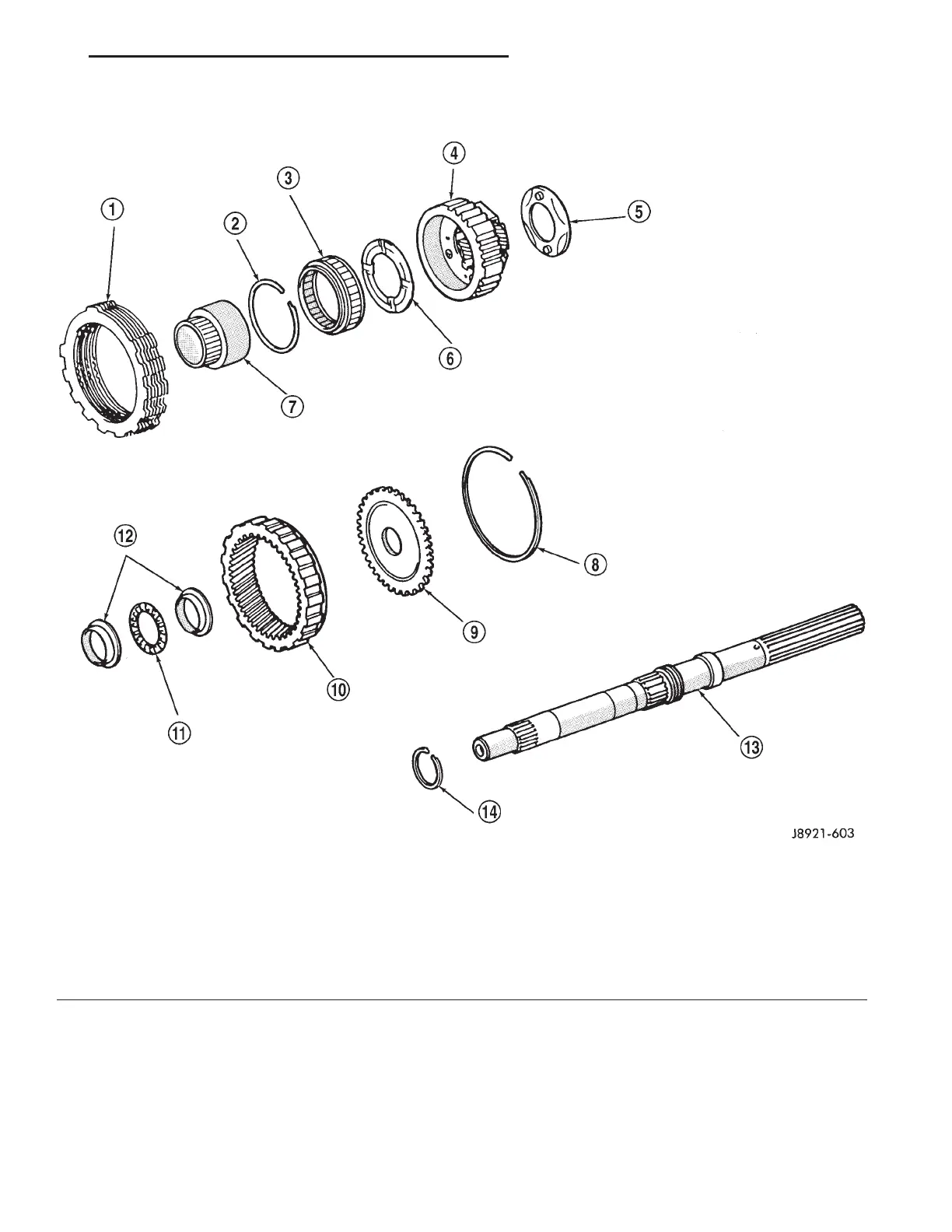

Rear Planetary, Brake Pack, Output Shaft Components
1 – FIRST-REVERSE BRAKE PACK
2 – SNAP RING
3 – NO. 2 ONE-WAY CLUTCH
4 – REAR PLANETARY GEAR
5 – REAR THRUST WASHER
6 – FRONT THRUST WASHER
7 – ONE-WAY CLUTCH INNER RACE
8 – SNAP RING
9 – RING GEAR HUB
10 – REAR PLANETARY RING GEAR
11 – THRUST BEARING
12 – RACES
13 – OUTPUT SHAFT
14 – SEAL RING
XJ AW–4 AUTOMATIC TRANSMISSION 21 - 329
DISASSEMBLY AND ASSEMBLY (Continued)
