SPECIFICATIONS
TORQUE CHART
DESCRIPTION TORQUE
Shock Absorber
Upper Nut ............... 22N·m(16ft.lbs.)
Lower Nut ............... 23N·m(17ft.lbs.)
Suspension Arm Upper
Front Nut ............... 74N·m(55ft.lbs.)
Rear Nut ................ 89N·m(66ft.lbs.)
Suspension Arm Lower
Front Nut ............... 115N·m(85ft.lbs.)
Rear Nut ............... 115N·m(85ft.lbs.)
Stabilizer Bar
Clamp Bolt ............... 54N·m(40ft.lbs.)
Link Upper Nut ........... 36N·m(27ft.lbs.)
Link Lower Nut ........... 95N·m(70ft.lbs.)
Track Bar
Ball Stud Nut ............ 81N·m(60ft.lbs.)
Axle Bracket Bolt .......... 54N·m(40ft.lbs.)

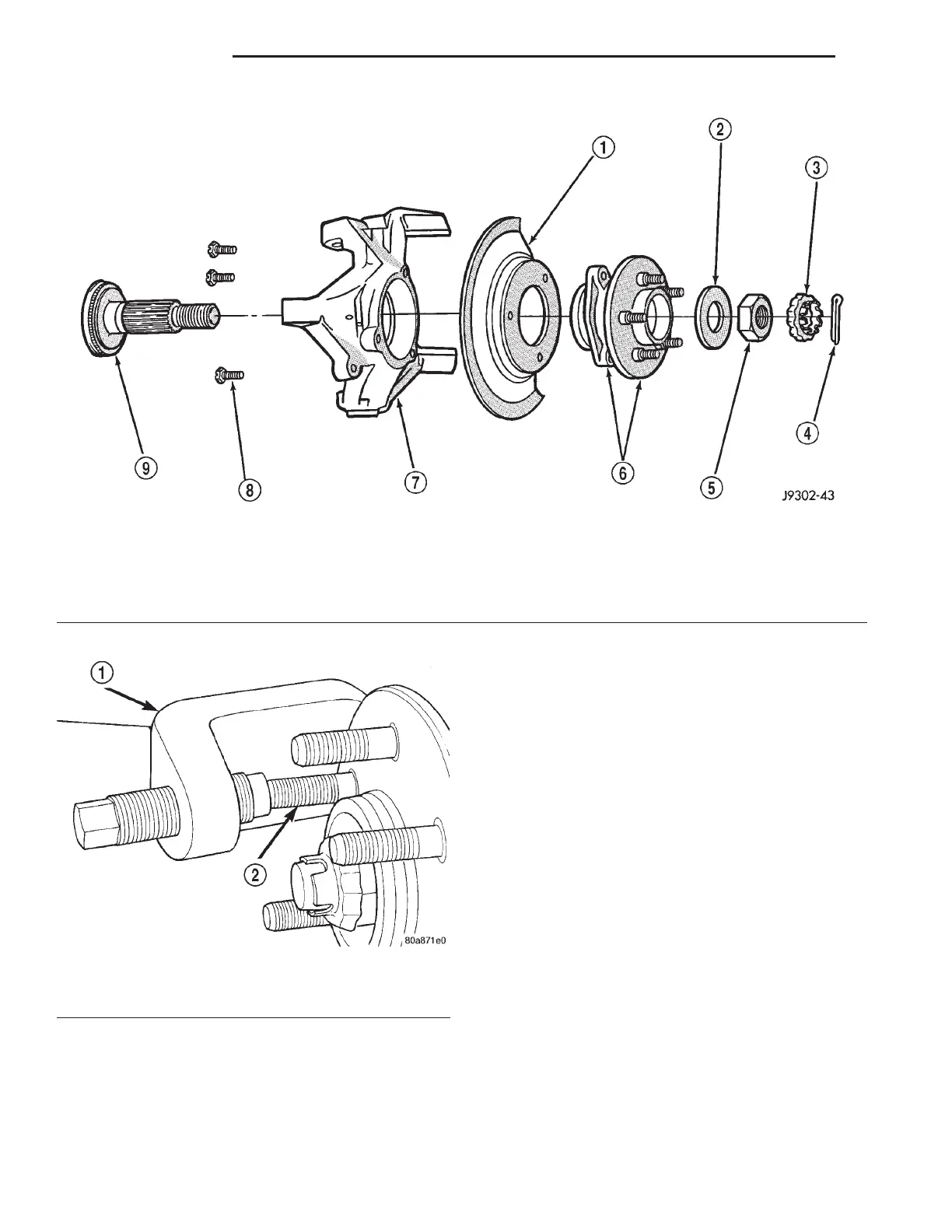

Fig. 8 Hub Bearing & Knuckle
1 – BRAKE SHIELD
2 – WASHER
3 – RETAINER
4 – COTTER PIN
5 – NUT
6 – HUB AND BEARING ASSEMBLY
7 – STEERING KNUCKLE
8 – BOLT
9 – TONE WHEEL (ABS)
Fig. 9 Wheel Stud Removal
1 – REMOVER
2 – WHEEL STUD
2 - 14 SUSPENSION XJ
REMOVAL AND INSTALLATION (Continued)
